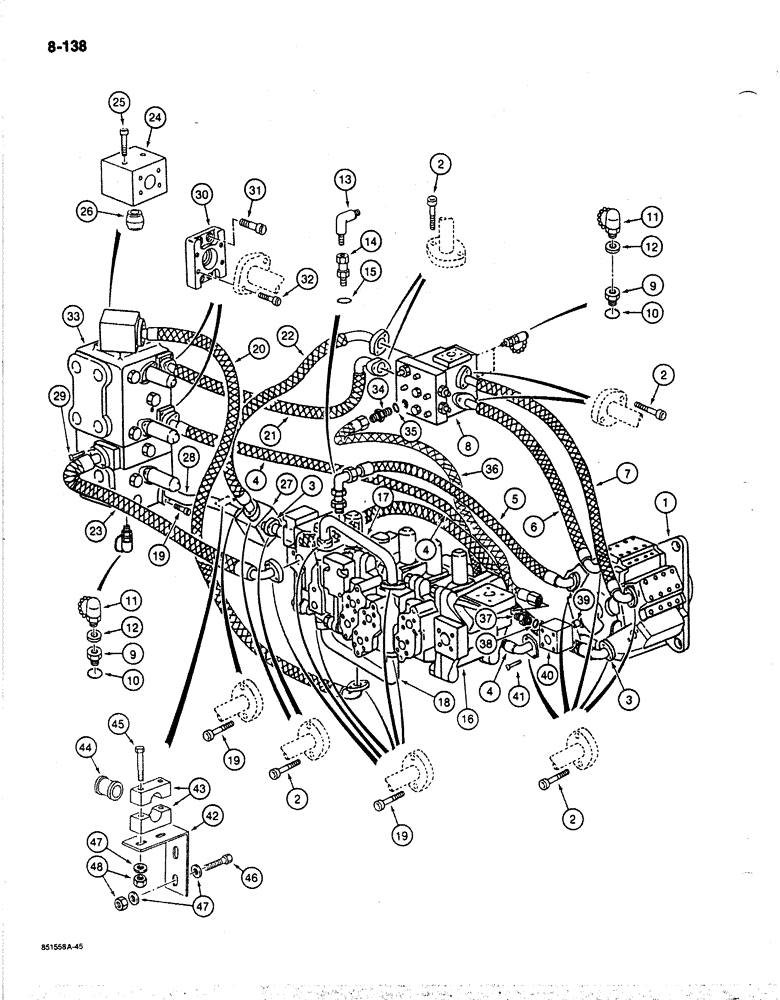

Запчасти Case 170B (8-138) - HYDRAULIC PUMP LINES, HYDRAULIC PUMP TO MAIN CONTROL VALVES, P.I.N. 74353 AND 74361 THRU 74456 (08) - HYDRAULICS

1

P3443505

PUMP

ASSEMBLY - high pressure, parts list Figure 8-228

1шт.

2

P0732978Q

SCREW

Hose flange Hex Soc Hd, M8 x 30, 10.9

22шт.

3

P5931926

HOSE

- 24-13/16" (630 mm) long, pump to junction block

1шт.

4

P5431916

HOSE

- 39-3/8" (1000 mm) long, pump to drive control valve

1шт.

5

P5931925

HOSE,15.50 mm ID x 630.00 mm

- pump to attachment control valve 15.50 mm ID x 630.00 mm

1шт.

6

P4931979

HOSE

- 19-11/16" (500 mm) long, pump to power sensing valve

1шт.

7

P5931926

HOSE

- 24-13/16" (630 mm) long, pump to power sensing valve

1шт.

8

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-274

1шт.

9

P637358

RESTRICTOR

ADAPTER - straight, pressure check valve

3шт.

10

P1230443

O-RING

- adapter

3шт.

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, Includes: Refs. 11, 12

3шт.

11

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

12

P7046042

SEAL

- valve

1шт.

13

P37078

ELBOW-CONNECTION

ADAPTER - 90 degree, hose

1шт.

14

P2337594

FITTING

ADAPTER - straight

1шт.

15

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

1шт.

16

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-234 through 8-242

1шт.

17

P7347640

PIPE

TUBE - heavy lift circuit, upper

1шт.

18

P7347641

PIPE

TUBE - heavy lift circuit, lower

1шт.

19

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube and hose flanges Hex Soc Hd, M10 x 35, 10.9

16шт.

20

P3231911

HOSE

- 49-1/4" (1250 mm) long, attachment control valve to junction block

1шт.

21

P4931979

HOSE

- 19-11/16" (500 mm) long, power sensing valve to drive control valve

1шт.

22

P5931926

HOSE

- 24-13/16" (630 long, power sensing valve junction block

1шт.

23

P3231910

HOSE

- 39-3/8" (1000 mm) long, to center block of swing and drive control valve

1шт.

24

P1737032

ANGLE

BLOCK - hose to drive control valve

1шт.

25

P532949

SCREW

BOLT - block to drive control valve

2шт.

26

P1528830

JUNCTION

ADAPTER - block to drive control valve

1шт.

27

P537235

TEE

BLOCK - junction, to swing control valve

1шт.

28

P7747644

PIPE

TUBE - junction block to swing control valve

1шт.

29

L632924

SCREW

BOLT - hose flange to center block of swing and drive control valve

2шт.

30

P637327

RESTRICTOR

PLATE - adapter, hose to drive control valve

2шт.

31

P532988

SCREW

BOLT - adapter plate to drive control valve

8шт.

32

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

Hose flange to adapter Hex Soc Hd, M8 x 30, 10.9

4шт.

33

REF

INSTRUCTION

VALVE ASSEMBLY - swing and drive control, parts list Figures 8-244 - 8-250

1шт.

34

P2337591

UNION

ADAPTER - straight

1шт.

35

P4431936

HOSE

O-RING - adapter

1шт.

36

P4431936

HOSE

- pilot, to power sensing valve

1шт.

37

P4037504

UNION

ADAPTER - straight

1шт.

38

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

1шт.

39

P1528827

JUNCTION

ADAPTER -, Serial Range: block-pump

1шт.

40

P3037751

JUNCTION

BLOCK -, Serial Range: adapter-pump

1шт.

41

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

Adapter to pump Hex Soc Hd, M8 x 65, 10.9

2шт.

42

P4825620

ANGLE BAR

BRACKET - mounting, tube clamp

1шт.

43

P820377

SHIN

CLAMP -, Serial Range: tube-bracket

2шт.

44

P741440

BUSHING

INSULATOR - tube clamp

1шт.

45

43148

SUPPORT

BOLT -, Serial Range: clamp-bracket

2шт.

46

P28374

SCREW

BOLT - bracket mounting

2шт.

47

P3528793

WASHER

SPACER - mounting bolts

6шт.

48

P834549

SAFETY NUT

NUT - hex, bracket mounting bolts

4шт.
