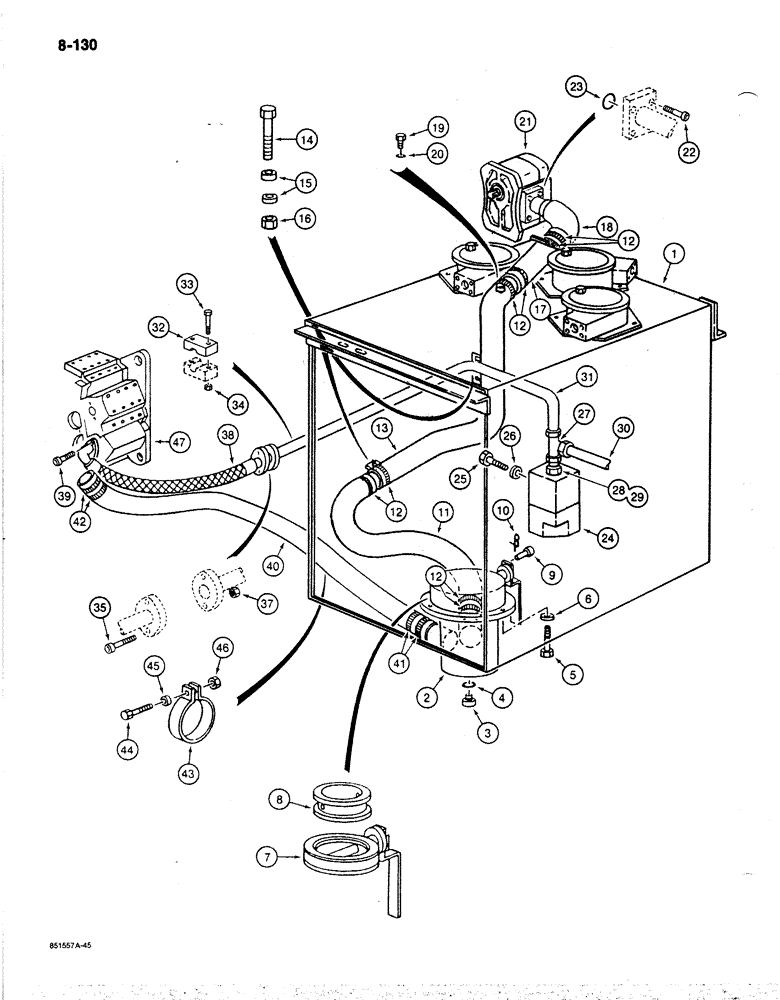

Запчасти Case 170B (8-130) - HYDRAULIC PUMP LINES, RESERVOIR TO HYDRAULIC PUMP, P.I.N. 74341 THRU 74456 (08) - HYDRAULICS

1

P1540224

OIL RESERVOIR

RESERVOIR - hydraulic oil,see Figure 8-126 for filters and breather

1шт.

2

P3050103

MANIFOLD

SUMP - hydraulic oil

1шт.

3

P1737444

PLUG

- sump drain

1шт.

4

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- drain plug

1шт.

5

P33857

SCREW

BOLT -, Serial Range: sump-reservoir

4шт.

6

P3528790

WASHER

SPACER - bolt

4шт.

P837806

VANEUM GAUGE

VALVE ASSEMBLY - shutoff, Includes: Refs. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - shutoff

1шт.

8

P7546015

BUSHING

- shutoff valve

1шт.

9

P27863

CLEVIS PIN

PIN - lock, valve handle

1шт.

10

P36018

SPLIT PIN/SAFETY PIN

PIN - cotter, lock pin

1шт.

11

REF

INSTRUCTION

HOSE - suction, to cooler pump, 27-9/16" (700 mm) long, cut from P3603

1шт.

12

P36946

COLLAR CLAMP

CLAMP - hose

8шт.

13

P3050135

MANIFOLD

TUBE - suction, to cooler pump

1шт.

14

P1133839

SCREW

BOLT - suction tube support

3шт.

15

P3528795

WASHER

SPACER - bolt

6шт.

16

P34598

SAFETY NUT

NUT - hex, tube support bolt

3шт.

17

REF

INSTRUCTION

HOSE - suction, to cooler pump, 15-3/4"(400 mm)long, cut from P3603

1шт.

18

P3050102

MANIFOLD

TUBE - suction, at pump

1шт.

19

P137484

PLUG

- suction tube

1шт.

20

P49696

BUSHING

SEAL - tube plug

1шт.

21

P2843552

PUMP

ASSEMBLY - cooler hydraulics, parts list Figure 8-230

1шт.

22

P732909

SCREW

BOLT - tube flange to cooler pump

4шт.

23

P330402

O-RING

- tube flange

1шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulating, see Figures 8-276 and 8-277A for correct valve

1шт.

25

P933818

SCREW

BOLT - valve mounting

2шт.

26

P4328730

WASHER

SPACER - mounting bolt

2шт.

27

P37233

TEE

- at pressure regulating valve

1шт.

28

P3037507

FITTING

ADAPTER -, Serial Range: tee-valve

1шт.

29

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- adapter

1шт.

30

P6947103

PIPE

TUBE - pilot circuit, see Figure 8-142, Ref. 17

1шт.

31

P7747697

PIPE

TUBE - pump to pressure regulating valve

1шт.

32

P723438

SHIN

CLAMP -, Serial Range: tube-bracket

1шт.

33

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

- hex head, 10 mm - 1.5 x 55 mm, plated

2шт.

34

P34598

SAFETY NUT

NUT - clamp bolt

2шт.

35

P1232958

SCREW

BOLT - tube to hose flange

2шт.

37

P34185H

NUT,M8, Cl 10

- flange bolt

2шт.

38

P4931979

HOSE

- 19-11/16" (500 mm) long, at main hydraulic pump

1шт.

39

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Hose to hydraulic pump

2шт.

40

P5931909

LARGE HOSE

HOSE - suction, reservoir to main hydraulic pump

1шт.

41

P1236903

CLAMP

- hose, at reservoir

2шт.

42

P36946

COLLAR CLAMP

CLAMP - hose, at pump

2шт.

43

P3036931

CLAMP

- suction hose

1шт.

44

P133839

SCREW

BOLT - hose clamp

1шт.

45

P3528795

WASHER

SPACER - clamp bolt

1шт.

46

P34598

SAFETY NUT

NUT - clamp bolt

1шт.

47

P3443505

PUMP

ASSEMBLY - high pressure, parts list Figure 8-228

1шт.
