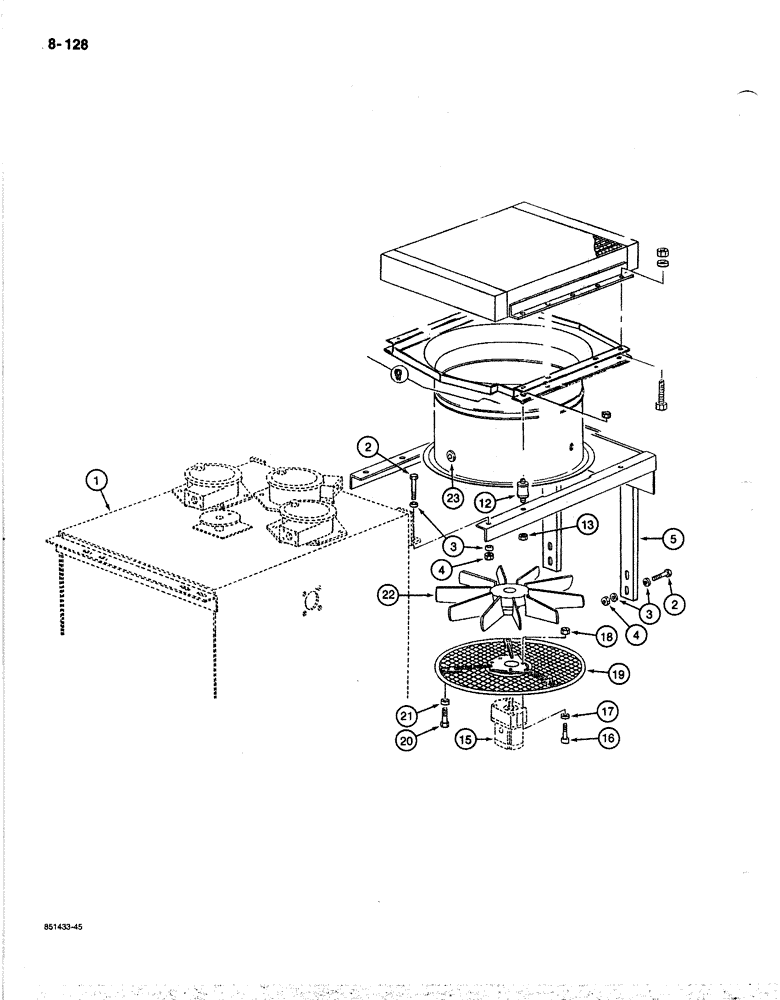

Запчасти Case 170B (8-128) - HYDRAULIC OIL COOLER AND FAN, P.I.N. 74341 THROUGH 74456 (08) - HYDRAULICS

1

P1540224

OIL RESERVOIR

RESERVOIR - hydraulic oil, see Figure 8-126 for filters and breather

1шт.

2

P33842

SCREW

BOLT - mounting, oil cooler frame

6шт.

3

P3528793

WASHER

SPACER - frame mounting bolt

12шт.

4

P34596

LOCK NUT

NUT - hex, frame mounting bolt

6шт.

5

P2254808

SUPPORT

FRAME - mounting, oil cooler

1шт.

6

P3037769

COOLER ASSY.

COOLER - hydraulic oil

1шт.

7

P2623182

PLATE

- spacer, Serial Range: cooler-shroud

2шт.

8

P4540317

ORIFICE RING

SHROUD - cooler fan

1шт.

9

P133884

SCREW

BOLT -, Serial Range: cooler-shroud

4шт.

10

P3528794

WASHER

SPACER - cooler mounting bolt

8шт.

11

P134596

SAFETY NUT

NUT - hex, cooler mounting bolt

4шт.

12

P41474

STOP

MOUNT - flexible, cooler and, Serial Range: shroud-frame

4шт.

13

P34598

SAFETY NUT

NUT - hex, flexible mount

8шт.

14

REF

INSTRUCTION

GUARD - shroud edge, 27-9/16" (700 mm) long, cut from P303111

2шт.

15

P2343732

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - cooler fan, see Figures 8-286 and 8-288 for correct motor and parts list

1шт.

16

P732980

SCREW

- mounting, Serial Range: fan-screen

4шт.

17

P34611

WASHER

- lock, mounting screw

4шт.

18

P134596

SAFETY NUT

NUT - hex, mounting screw

4шт.

19

P4728212

SIEVE

SCREEN - protective, fan

1шт.

20

P933818

SCREW

BOLT -, Serial Range: screen-shroud

3шт.

21

P4528713

WASHER

SPACER - screen mounting bolt

3шт.

22

P2843209

FAN

- cooler

1шт.

23

P41478

GROMMET

- rubber, large, in shroud

2шт.
