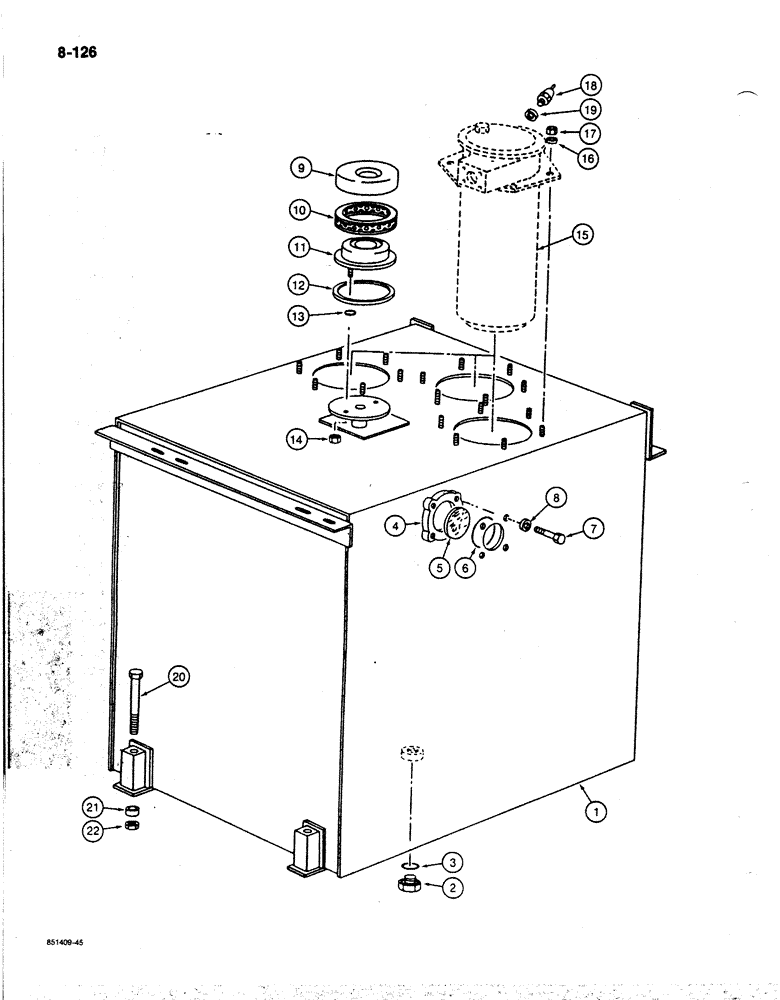

Запчасти Case 170B (8-126) - HYDRAULIC RESERVOIR, P.I.N. 74341 THROUGH 74456 (08) - HYDRAULICS

1

P1540224

OIL RESERVOIR

RESERVOIR - hydraulic oil

1шт.

2

P1737444

PLUG

- reservoir drain

1шт.

3

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- drain plug

1шт.

4

P130109

BODY

GUAGE - sight, oil level

1шт.

5

P45055

SIGHTGLASS

GLASS - sight guage

1шт.

6

P30337

O-RING

- sight guage

1шт.

7

P33826

SCREW

BOLT -, Serial Range: gauge-tank

4шт.

8

P28424

COMPOSITE SEAL

WASHER - flat, guage bolt

4шт.

P1337410

PLUG

BREATHER ASSEMBLY - hydraulic tank, Includes: Refs. 9-12

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - breather

1шт.

10

P850566

CARTRIDGE

FILTER - tank breather

1шт.

11

NSS

NOT SOLD SEPARAT

BASE - breather

1шт.

12

P945279

SEAL

-, Serial Range: breather-tank

1шт.

13

P230441

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- breather mounting stud

2шт.

14

P134596

SAFETY NUT

NUT - mounting stud

2шт.

15

P1050539

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic return oil, see Figure 8-292 for filter identification and parts list

3шт.

16

P35002

WASHER

- lock, filter to tank studs

18шт.

17

P34113

NUT

- hex, filter to tank studs

18шт.

18

P841828

ELECTRO/HYD CONTACT

UNIT - sending, filter condition

3шт.

19

P28424

COMPOSITE SEAL

SEAL - sending unit

3шт.

20

P433837

SCREW

BOLT - tank mounting

4шт.

21

P3528792

WASHER

SPACER - tank mounting bolt

4шт.

22

P134549

SAFETY NUT

NUT - hex, tank mounting bolt

4шт.
