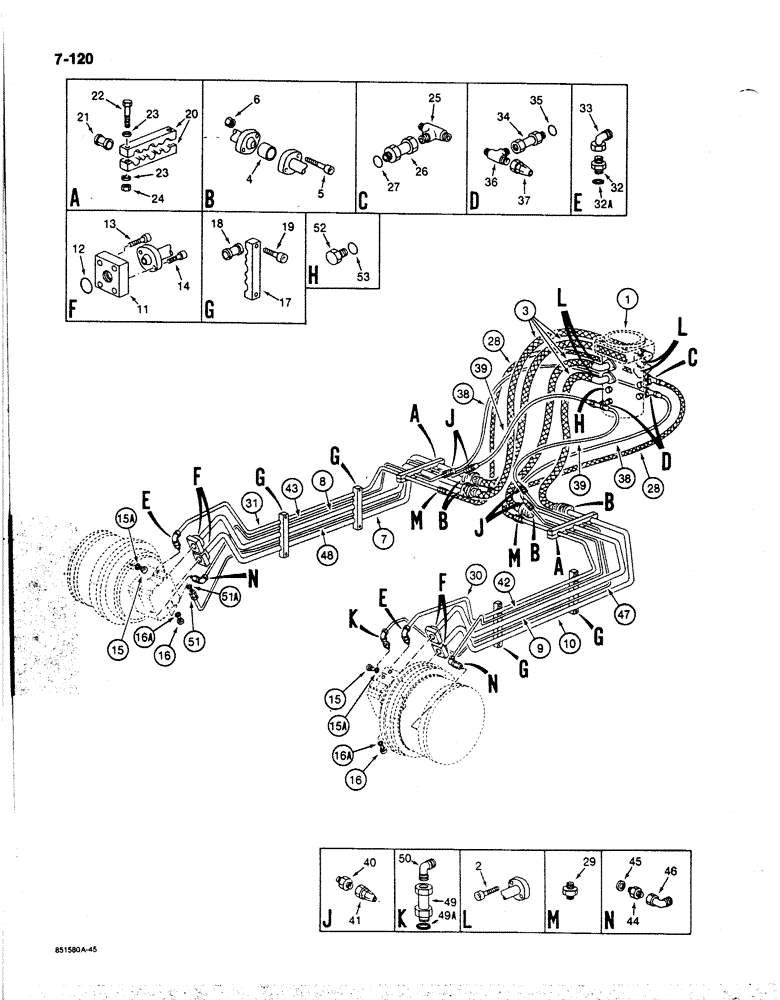

Запчасти Case 170B (7-120) - TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES, P.I.N. 74341 THRU 74456 (07) - BRAKES

1

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-290

1шт.

2

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose flange to swivel Hex Soc Hd, M10 x 35, 10.9

8шт.

3

P3231911

HOSE

- 49-1/4" (1250 mm) long, swivel to track drive motor

4шт.

4

P1737758

JUNCTION

ADAPTER - hose to tube flange

4шт.

5

P1432903

SCREW

BOLT - hose to tube flange

8шт.

6

825-1408

NUT,M8, Cl 8

- hex, 8 mm - 1.25, class 10

8шт.

7

P5849159

PIPE

TUBE - swivel to left-hand drive motor, forward drive

1шт.

8

P5849458

TUBE - seivel to left hand drive motor, reverse drive

1шт.

9

P5849457

TUBE - swivel to right-hand drive motor, reverse drive

1шт.

10

P5849160

PIPE

TUBE - swivel to right-hand drive motor, forward drive

1шт.

11

P3837732

SHIN

PLATE - adapter, tube to drive motor

4шт.

12

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter plate

4шт.

13

P1232971

SCREW

BOLT - plate to drive motor

16шт.

14

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube flange to adapter plate Hex Soc Hd, M10 x 35, 10.9

8шт.

P2537447

PLUG

ASSEMBLY - transmission case, Includes: Refs. 15, 15A

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG - transmission case

1шт.

15a

P7046042

SEAL

O-RING - plug

1шт.

P2537413

PLUG

ASSEMBLY - drive motor, Includes: Refs. 16, 16A

2шт.

16

NSS

NOT SOLD SEPARAT

PLUG - drive motor

1шт.

16a

P1145268

SEAL

O-RING - plug

1шт.

17

P4020368

SHIN

CLAMP - drive motor tubes to track frame side

4шт.

18

P3141453

BUSHING

INSULATOR - tube

12шт.

19

P32943

SCREW

BOLT - tube clamp

8шт.

20

P4020367

SHIN

CLAMP - drive motor tubes, upper

4шт.

21

P3141453

BUSHING

INSULATOR - tube

6шт.

22

P133084

SCREW

BOLT - tube clamp

4шт.

23

P3528793

WASHER

SPACER - clamp bolt

8шт.

24

P34596

LOCK NUT

NUT - hex, tube clamp bolt

4шт.

25

P37237

TEE

- motor case drain, at swivel

1шт.

26

P2337594

FITTING

TUBE - adapter, motor case drain tee

1шт.

27

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter tube

1шт.

28

P4431946

HOSE

- 39-3/8" (1000 mm) long, motor case drain

2шт.

29

P37550

UNION

ADAPTER - motor drain, Serial Range: hose-tube

2шт.

30

P5849156

PIPE

TUBE - right-hand motor case drain

1шт.

31

P5849155

PIPE

TUBE - left-hand motor case drain

1шт.

P3237575

UNION

ADAPTER ASSEMBLY - elbow to drive motor, Includes: Refs. 32, 32A

2шт.

32

NSS

NOT SOLD SEPARAT

ADAPTER - elbow to drive motor

1шт.

32a

P1145268

SEAL

O-RING - adapter

1шт.

33

P1737030

ANGLE

ELBOW - 90 degree, motor case drain tube

20шт.

34

P3037508

FITTING

TUBE - adapter, Serial Range: tee-swivel

2шт.

35

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter tube

2шт.

36

P37248

TEE

- control circuit, Serial Range: hoses-swivel

2шт.

37

P4037535

END FITTING

ADAPTER - straight, control circuit hose

4шт.

38

REF

INSTRUCTION

HOSE - 39-3/8" (1000 mm) long, control circuit, motor brake release, cut from P1103640

2шт.

39

REF

INSTRUCTION

HOSE - 31-1/2" (800 mm) long, control circuit, motor drive range, cut from P1103640

2шт.

40

P37553

UNION

ADAPTER - control circuit, Serial Range: hose-tube

4шт.

41

P5849153

PIPE

ADAPTER - straight, control circuit hose

4шт.

42

P5849153

PIPE

TUBE - brake release, right-hand drive motor

1шт.

43

P5849154

PIPE

TUBE - brake release, left-hand drive motor

1шт.

44

P3237595

UNION

ADAPTER - brake release tube to drive motor

2шт.

45

P7046042

SEAL

- tube adapter

2шт.

46

P1737031

ANGLE

ELBOW - 90 degree, brake release tube

2шт.

47

P5849151

PIPE

TUBE - drive range, right-hand motor

1шт.

48

P5849151

PIPE

TUBE - drive range, left-hand motor

1шт.

P3237576

FITTING

TUBE ASSEMBLY - adapter, right-hand motor drive range, Includes: Refs. 49, 49A

1шт.

49

NSS

NOT SOLD SEPARAT

TUBE - adapter, right-hand motor drive range tube

1шт.

49a

P7046042

SEAL

O-RING - adapter

1шт.

50

P37075

ELBOW

- 90 degree, right-hand motor drive range tube

1шт.

P3237574

UNION

ADAPTER ASSEMBLY - straight, left-hand motor drive range tube, Includes: Refs. 51, 51A

1шт.

51

NSS

NOT SOLD SEPARAT

ADAPTER - straight, left-hand motor drive range tube

1шт.

51a

P7046042

SEAL

O-RING - adapter

1шт.

52

P1737444

PLUG

- hydraulic swivel port

1шт.

53

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- plug

1шт.
