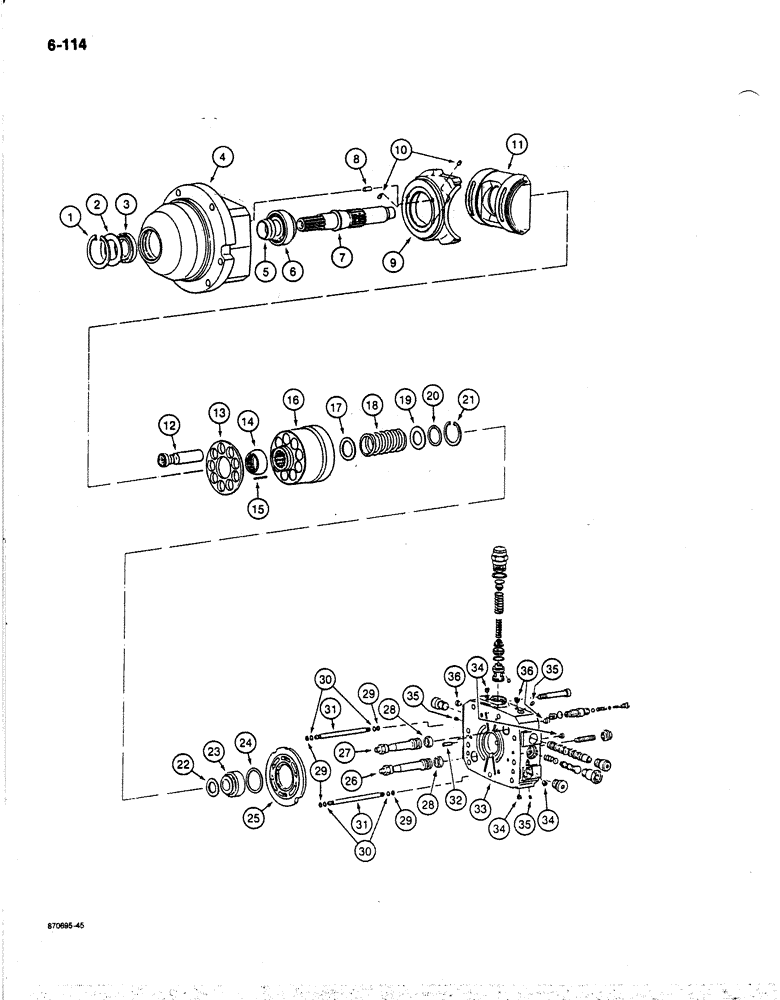

Запчасти Case 170B (6-114) - TRACK DRIVE HYDRAULIC MOTOR, P.I.N. 74341 THROUGH 74456 (06) - POWER TRAIN

P2343771

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, Includes: Refs. 1-36

2шт.

1

P36241

RING, SNAP

RING - snap, seal retainer

1шт.

2

P1945381

WASHER

- seal retainer

1шт.

3

P8046067

GASKET

SEAL - oil, motor housing

1шт.

4

P5140309

HOUSING

- motor

1шт.

5

P1929038

BUSHING

SPACER - bearing

1шт.

6

P1139851

BEARING

- drive shaft

1шт.

7

P1928010

SHAFT

- drive, hydraulic motor

1шт.

8

P36097

SPLIT PIN/SAFETY PIN

PIN - dowel, swash plate support

1шт.

9

P5140310

SHELL

SUPPORT - swash plate

1шт.

10

P3037417

PLUG

PIN - guide

2шт.

11

P7946274

CRADLE

PLATE - swadh, motor

1шт.

12

P6027846

PISTON

- motor

9шт.

P7946272

LARGE PLATE

SPACER ASSEMBLY - guide ring, Includes: Refs. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

RING - guide, piston

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - guide ring

1шт.

15

P2527220

NEEDLE

PIN - roll, guide ring

1шт.

16

P150204

LOCK, CYLINDER

CYLINDER - piston

1шт.

17

P2745408

WASHER

- spring, outer

1шт.

18

P1038217

SPRING

- cylinder

1шт.

19

P2745409

WASHER

- spring, inner

1шт.

20

P1945394

WASHER

SHIM - 0.012" (0.3 mm), spring

1шт.

20

P1945393

WASHER

SHIM - 0.020" (0.5 mm), spring

1шт.

21

P536222

RING, SNAP

RING - snap, spring retainer

1шт.

22

P2745410

WASHER

SPACER - bearing

1шт.

23

P39842

BEARING

- drive shaft

1шт.

24

P1945395

WASHER

SHIM - 0.020" (0.5 mm), bearing

1шт.

24

P1945398

WASHER

SHIM - 0.024" (0.6 mm), bearing

1шт.

24

P1945396

WASHER

SHIM - 0.028" (0.7 mm), bearing

1шт.

24

P1945397

WASHER

SHIM - 0.031" (0.8 mm), bearing

1шт.

25

P150205

DISTRIBUTOR

PLATE - manifold

1шт.

26

P6027847

PISTON

STUD - swash plate angle, lower

1шт.

27

P6027848

PISTON

STUD - swash plate angle, upper

1шт.

28

P8846009

SEAL

- stud

2шт.

29

P2230487

O-RING

- transfer tube

4шт.

30

P1245238

BACK-UP RING

RING - backup, transfer tube

4шт.

31

P1231871

TUBE

- transfer

2шт.

32

P36053

SPLIT PIN/SAFETY PIN

PIN - dowel, valve housing, Includes: Refs. 33-36

1шт.

33

NSS

NOT SOLD SEPARAT

HOUSING - valve, distributor

1шт.

34

P3237462

PLUG

- valve housing

4шт.

35

P3237461

PLUG

- valve housing

3шт.

36

P3237463

PLUG

- valve housing

3шт.
