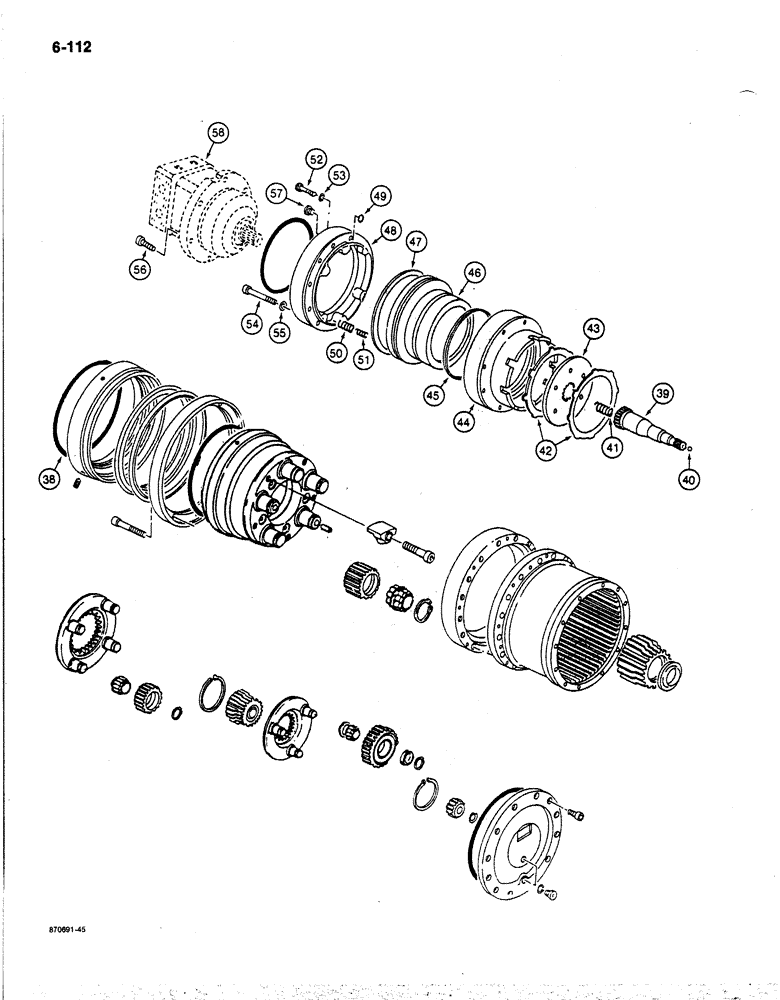

Запчасти Case 170B (6-112) - FINAL DRIVE TRANSMISSION, P.I.N. 74341 THROUGH 74456 (06) - POWER TRAIN

P2348566

REDUCER

TRANSMISSION ASSEMBLY - final drive, continued from Figure 6-110, Includes: P1928001 SHAFT ASSEMBLY and Refs. 38-57

2шт.

P1928001

SHAFT

ASSEMBLY - input, transmission, Includes: Refs. 38, 39

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING - seal retainer

1шт.

Part of transmission seal kit P/N P5449609

1шт.

39

NSS

NOT SOLD SEPARAT

SHAFT - input, transmission

1шт.

40

NSS

NOT SOLD SEPARAT

BALL - input shaft

1шт.

41

P38293

SPRING

- input shaft

1шт.

P943151

BRAKE

ASSEMBLY - transmission, Includes: Refs. 42-53

1шт.

42

P42881

DISC

- brake, friction

2шт.

43

NSS

NOT SOLD SEPARAT

DISC - brake, steel

1шт.

44

NSS

NOT SOLD SEPARAT

HOUSING - brake

1шт.

45

NSS

NOT SOLD SEPARAT

SEAL - brake piston, small

1шт.

Part of transmission brake seal kit P/N P5449610

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON - brake

1шт.

47

NSS

NOT SOLD SEPARAT

SEAL - brake piston, large

1шт.

Part of transmission brake seal kit P/N P5449610

1шт.

48

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

49

NSS

NOT SOLD SEPARAT

O-RING - retainer bolt

4шт.

Part of transmission brake seal kit P/N P5449610

1шт.

50

NSS

NOT SOLD SEPARAT

SPRING - brake piston, outer

22шт.

Available in P5449688 Spring Kit

1шт.

51

NSS

NOT SOLD SEPARAT

SPRING - brake piston, inner

14шт.

Available in P5449688 Spring Kit

1шт.

52

P1232958

SCREW

BOLT - hex socket head, 8 mm x 45 mm, class 10.9, piston retainer, short

4шт.

53

P1245228

SEAL

WASHER - flat, 8 mm, piston retainer bolt

4шт.

54

P32906

SCREW

BOLT - hex socket head, 8 mm x 100 mm, piston retainer, long

8шт.

55

P1245228

SEAL

WASHER - flat, 8 mm, piston retainer bolt

8шт.

56

P532914

SCREW

BOLT - track drive, Serial Range: motor-transmisson

6шт.

57

P3037423

PLUG

- retainer

1шт.

58

P2343771

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, parts list Figures 6-114 and 6-116

2шт.

P5449609

SEAL PACKAGE

KIT - seal, transmission, Includes: Ref. 38

1шт.

P5449610

SEAL PACKAGE

KIT - seal, transmission brake, Includes: Ref. 45, 47 and 49

1шт.
