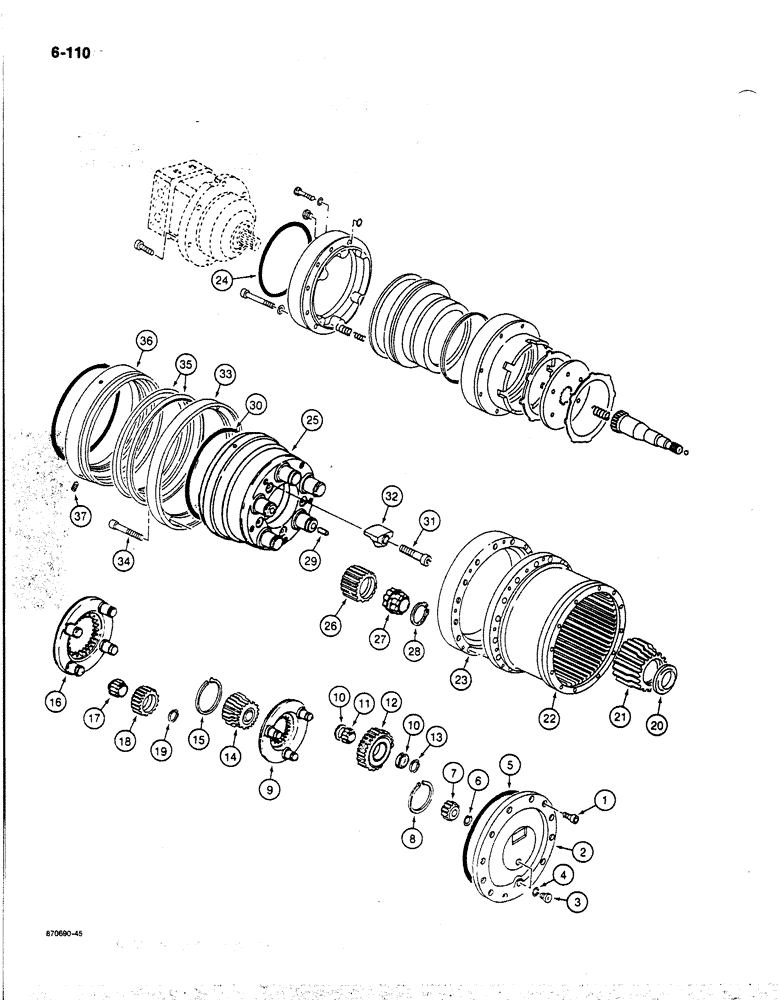

Запчасти Case 170B (6-110) - FINAL DRIVE TRANSMISSION, P.I.N. 74341 THROUGH 74456 (06) - POWER TRAIN

P2348566

REDUCER

TRANSMISSON ASSEMBLY - final drive, Includes: Refs. 1-37

2шт.

1

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Planetary cover Hex Skt Hd, M12 x 40, 10.9

12шт.

2

P4540370

COVER

- planetary

1шт.

3

P2537486

PLUG

- oil fill

2шт.

4

P1145442

DEUTZ PART

SEAL - fill plug

2шт.

5

NSS

NOT SOLD SEPARAT

O-RING - planetary cover

1шт.

Part of transmission seal kit P/N P5449609

1шт.

6

P36332

RING, SNAP

SPACER - sun gear

1шт.

7

P4339314

PINION

GEAR - sun, first stage

1шт.

8

P536312

RING, SNAP

RING - snap, sun gear

1шт.

9

P7946275

DOOR

CARRIER - pinion, first stage

1шт.

10

P1946306

WASHER

SPACER - pinion gear

6шт.

P4339343

PINION

GEAR ASSEMBLY - pinion, first stage, Includes: Refs. 11, 12

3шт.

11

NSS

NOT SOLD SEPARAT

BEARING - pinion gear

3шт.

12

NSS

NOT SOLD SEPARAT

GEAR - pinion, first stage

3шт.

13

P36322

RING, SNAP

RING - snap, pinion gear

3шт.

14

P4339313

PINION

GEAR - sun, second stage

1шт.

15

P536328

RING, SNAP

RING - snap, sun gear

1шт.

16

P7946276

DOOR

CARRIER - pinion, second stage

1шт.

P4339341

PINION

GEAR ASSEMBLY - pinion, second stage, Includes: Refs. 17, 18

4шт.

17

NSS

NOT SOLD SEPARAT

BEARING - pinion gear

1шт.

18

NSS

NOT SOLD SEPARAT

GEAR - pinion, second stage

1шт.

19

P936346

RING

- snap, pinion gear

4шт.

20

P8846008

GASKET

SPACER - sun gear

1шт.

21

P4339312

PINION

GEAR - sun, third stage

1шт.

22

P5140311

HOUSING

HUB - planetary

1шт.

23

P2039828

BEARING

- hub

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - transmission to drive motor

1шт.

Part of transmission seal kit P/N P5449609

1шт.

25

P7946277

DOOR

CARRIER - pinion, third stage

1шт.

P4339342

PINION

GEAR ASSEMBLY - pinion, third stage, Includes: Refs. 26, 27

5шт.

26

NSS

NOT SOLD SEPARAT

GEAR - pinion, third stage

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - pinion gear

1шт.

28

P936347

RING

- snap, pinion gear

5шт.

29

P36098

SPLIT PIN/SAFETY PIN

MAGNET - transmission case

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - planetary carrier

1шт.

Part of transmission seal kit P/N P5449609

1шт.

31

P1633895

SCREW

BOLT - hex head, 20 mm x 70 mm, class 10.9, bearing retainer

5шт.

32

P7946204

MANDREL

RETAINER - bearing

5шт.

33

P150206

ENGINE VENT SLEEVE

RETAINER - seal, outer

1шт.

34

P632935

SCREW

BOLT - hex socket head, 12 mm x 70 mm,class 10.9, seal retainer

8шт.

35

P8046041

SEAL

- face, planetary

2шт.

36

P150207

ENGINE VENT SLEEVE

RETAINER - seal, inner

1шт.

37

P32827

SCREW

- set, seal retainer

4шт.

P5449609

SEAL PACKAGE

KIT - seal, transmission, Includes: Ref. 5, 24 and 30

1шт.
