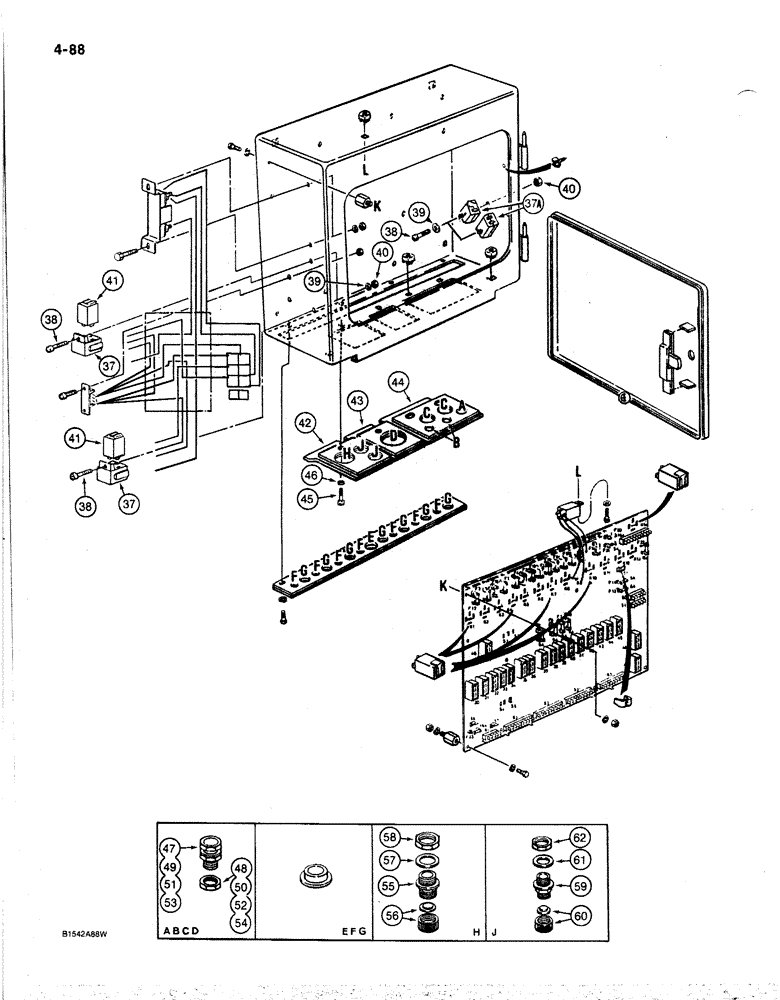

Запчасти Case 170B (4-88) - ELECTRICAL BOX, P.I.N. 74425 THROUGH 74456 (04) - ELECTRICAL SYSTEMS

37

P40710

PLATE

RECEPTACLE - harness, magnetic switch

2шт.

37a

P1340711

CASE

DIODE - electrical box

2шт.

38

P32538

SCREW

- slotted head, 5 mm x 16 mm

4шт.

39

P4328717

WASHER

SPACER - screw, 3 mm thick

4шт.

40

P34108

NUT

- hex, 5 mm

4шт.

41

P241140

RELAY

SWITCH - magnetic, plug-in style

2шт.

42

P3141479

LARGE PLATE

PLATE - insulator, left-hand side

1шт.

43

P3141477

LARGE PLATE

PLATE - insulator, middle

1шт.

44

P7043855

LARGE PLATE

PLATE - insulator, right-hand side

1шт.

45

P32549

SCREW

- slotted head, 6 mm x 16 mm

4шт.

46

P34607

WASHER

- flat, 6 mm

4шт.

47

P141431

GLAND

BUSHING - harness locking, 3/8" (10 mm) dia., "A" hole in plate

2шт.

48

P141439

NUT

- bushing, used with 3/8" (10 mm) dia. bushing

1шт.

49

P141430

GLAND

BUSHING - harness locking, 5/16" (8 mm) dia., "B" hole in plate

1шт.

50

P141438

NUT

- bushing, used with 5/16" (8 mm) dia. bushing

2шт.

51

P141434

GLAND

BUSHING - harness locking, 3/4" (18 mm) dia., "C" hole in plate

2шт.

52

P141452

NUT

- bushing, used with 3/4" (18 mm) dia. bushing

2шт.

53

P141435

GLAND

BUSHING - harness locking, 15/16" (24 mm) dia., "D" hole in plate

1шт.

54

P141453

NUT

- bushing, used with 15/16" (24 mm) dia. bushing

1шт.

55

P2340436

BODY

ADAPTER - plate cover, "H" hole in plate

1шт.

56

P2340435

CAP

COVER - adapter, includes seal

1шт.

57

P7546067

SEAL

-, Serial Range: adapter-box

1шт.

58

P2434507

NUT

- locking, Serial Range: adapter-box

1шт.

59

P2340444

BODY

ADAPTER - plate cover, "J" hole in plate

2шт.

60

P2340443

CAP

COVER - adapter, includes seal

2шт.

61

P7546066

SEAL

-, Serial Range: adapter-box

2шт.

62

P2434510

NUT

- locking, Serial Range: adapter-box

2шт.
