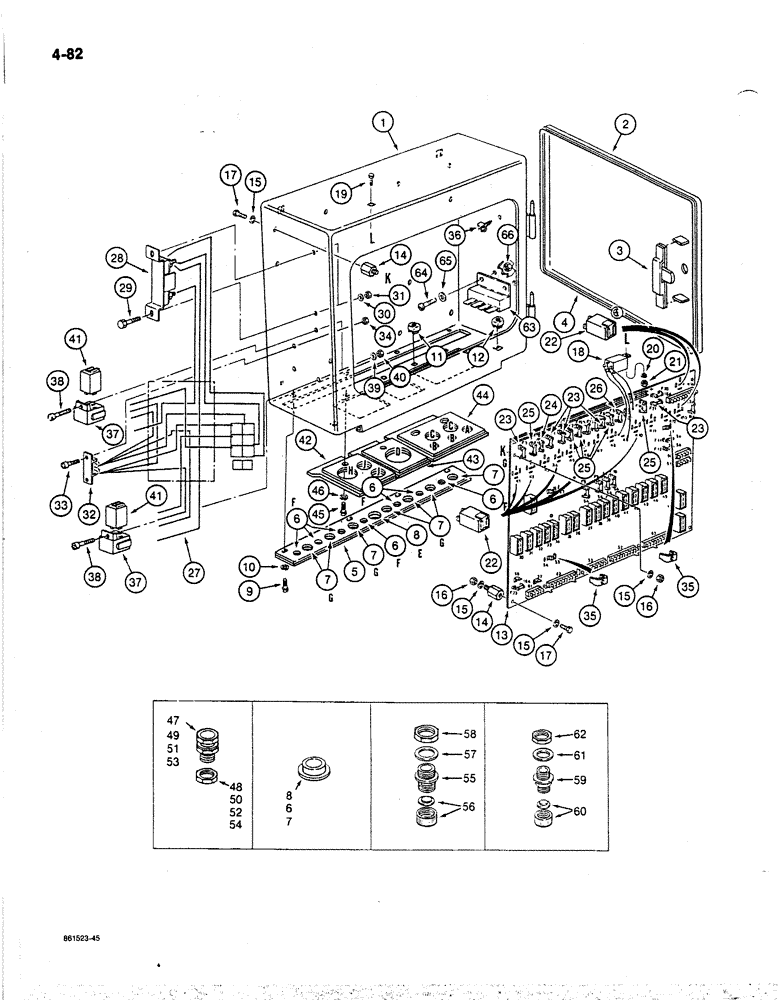

Запчасти Case 170B (4-82) - ELECTRICAL BOX, P.I.N. 74341 THROUGH 74424 (04) - ELECTRICAL SYSTEMS

1

P2241037

ELECTRICAL CABINET

ELECTRICAL BOX - printed circuit components

1шт.

P6643814

DOOR

ASSEMBLY - electrical box, Includes: Refs. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR - electrical box

1шт.

3

P51922

LATCH

- door

1шт.

4

REF

INSTRUCTION

SEAL - door, rubber, 55-1/8" (1400 mm) long, cut from P303111

1шт.

P3141478

LARGE PLATE

PLATE ASSEMBLY - insulator, Includes: Refs. 5-8

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - insulator

1шт.

6

P2537454

PLASTIC PLUG

PLUG - insulator plate, 5/8" (16 mm) dia., "F" hole in plate

7шт.

7

P2537453

PLASTIC PLUG

PLUG - insulator plate, 3/4" (19 mm) dia.,"G" hole in plate

7шт.

8

P2537452

PLASTIC PLUG

PLUG - insulator plate, 1-1/4" (31 mm) dia.,"E" hole in plate

1шт.

9

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- Insulator plate Hex, M6 - 1 x 16, 8.8

4шт.

10

P35001

WASHER

- lock

4шт.

11

P1334574

NUT

- electrical box, plate retainer

8шт.

12

P1334560

NUT

- electrical box, plate retainer

4шт.

13

P151678

BOARD, PRINTED CIRCU

CIRCUIT - printed, electrical box

1шт.

14

P2329172

SPACER

- special, printed, Serial Range: circuit-box

12шт.

15

P34603

WASHER

- lock

24шт.

16

P2434505

SAFETY NUT

NUT - printed circuit bolt

12шт.

17

P232604

SCREW

BOLT - printed, Serial Range: circuit-spacer

12шт.

18

P2041150

IGNITION SWITCH

SWITCH - magnetic, bolt-on type

1шт.

19

P133857

SCREW

-, Serial Range: switch-box

1шт.

20

P35001

WASHER

- lock

1шт.

21

P1334574

NUT

- switch mounting

1шт.

22

P241140

RELAY

SWITCH - maganetic, plug-in type, at printed circuit, magnetic switch used at "K4" location on circuit board on P.I.N.74368 - 74424 only

7шт.

23

P841297

FUSE

- circuit, 5 AMP.

5шт.

24

P841296

FUSE

- circuit, 8 amp.

1шт.

25

P841294

FUSE

- circuit, 16 amp.

5шт.

26

P1241265

FUSE

- circuit, 30 amp.

1шт.

27

P8547278

HARNESS

- electrical box

1шт.

28

P342440

RESISTOR

- electrical circuit

1шт.

29

P133857

SCREW

BOLT - resistor mounting

2шт.

30

P3528799

WASHER

SPACER - resistor bolt

2шт.

31

825-1106

NUT,Hex, M6, Cl 8

- resistor bolt

2шт.

32

P40826

SLIDER

CONNECTOR - electrical circuit

1шт.

33

P32531

SCREW

- connector mounting

2шт.

34

P34107X

NUT,M4, Cl 8

- connector mounting

2шт.

35

P640961

CONNECTION

CLIP - connector, printed circuit

2шт.

36

P2036942

SUPPORT

CLAMP - harness, electrical box

3шт.

37

P40710

PLATE

RECEPTACLE - harness, magnetic switch

2шт.

38

P32538

SCREW

- receptacle mounting

2шт.

39

P4328717

WASHER

SPACER - mounting screw

2шт.

40

P34108

NUT

- receptacle mounting

2шт.

41

P241140

RELAY

SWITCH - magnetic, plug-in type

2шт.

42

P3141479

LARGE PLATE

PLATE - insulator, left-hand side

1шт.

43

P3141477

LARGE PLATE

PLATE - insulator, middle

1шт.

44

P7043855

LARGE PLATE

PLATE - insulator, right-hand side

1шт.

45

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- Plate mounting Hex, M6 - 1 x 16, 8.8

4шт.

46

P35001

WASHER

- lock

4шт.

47

P141431

GLAND

BUSHING - harness locking, 3/8" (10 mm) dia., "A" hole in plate

1шт.

48

P141439

NUT

- bushing, used with 3/8" (10 mm) dia. bushing

1шт.

49

P141430

GLAND

BUSHING - harness locking, 5/16" (8 mm) dia., "B" hole in plate

2шт.

50

P141438

NUT

- bushing, used with 5/16" (8 mm) dia., bushing

2шт.

51

P141434

GLAND

BUSHING - harness locking, 3/4" (18 mm) dia., "C" hole in plate

2шт.

52

P141452

NUT

- bushing, used with 3/4" (18 mm) dia. bushing

2шт.

53

P141435

GLAND

BUSHING - harness locking, 15/16" (24 mm) dia., "D" hole in plate

1шт.

54

P141453

NUT

- bushing, used with 15/16" (24 mm) dia. bushing

1шт.

55

P2340436

BODY

ADAPTER - plate cover,"H" hole in plate

1шт.

56

P2340435

CAP

COVER - adapter, includes seal

1шт.

57

P7546067

SEAL

-, Serial Range: adapter-box

1шт.

58

P2434507

NUT

- locking, Serial Range: adapter-box

1шт.

59

P2340444

BODY

ADAPTER - plate cover,"J" hole in plate

2шт.

60

P2340443

CAP

COVER - adapter, includes seal

2шт.

61

P7546066

SEAL

-, Serial Range: adapter-box

2шт.

62

P2434510

NUT

- locking, Serial Range: adapter-box

2шт.

63

P140615

ASSEMBLY

DIODE - electrical box, no longer used, see Figure 4-89, Ref. 37 for replacement diode

1шт.

64

P32538

SCREW

- block mounting

2шт.

65

P4328717

WASHER

SPACER - mounting screw

2шт.

66

P34108

NUT

- hex, mounting screw

2шт.
