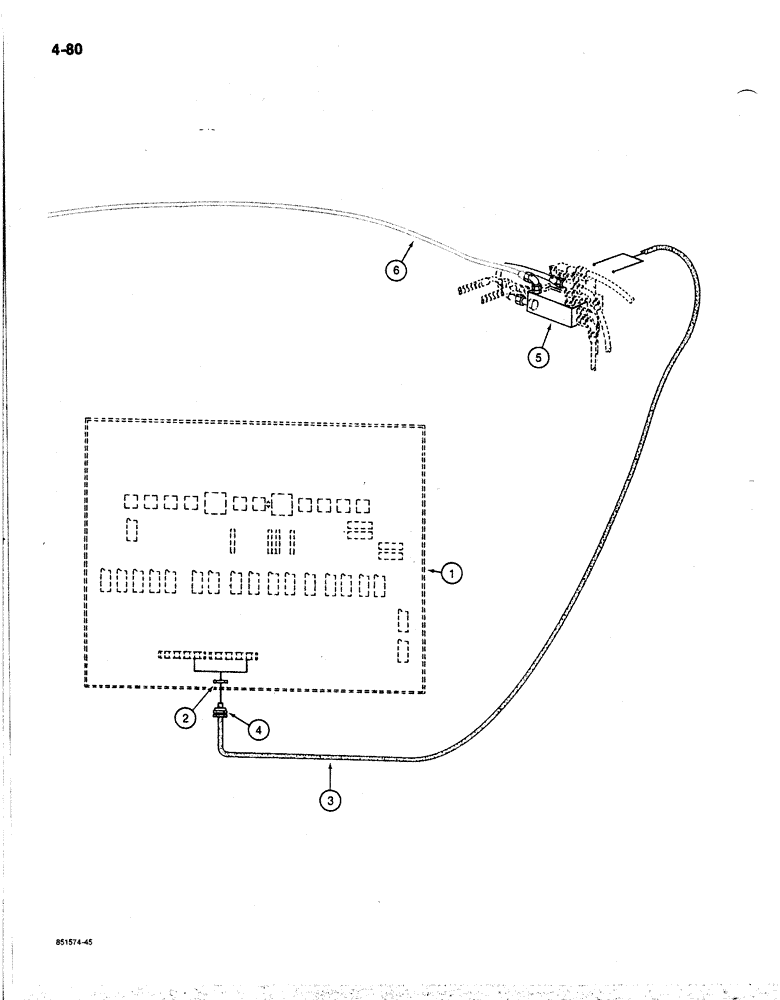

Запчасти Case 170B (4-80) - SWING BRAKE ELECTRICAL HARNESS, P.I.N. 74341 THROUGH 74456 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ELECTRICAL BOX - printed circuit, see Figures 4-82 - 4-88 for correct electric box

1шт.

2

P141439

NUT

- lock, bushing

1шт.

P8647267

CABLE

HARNESS ASSEMBLY - swing brake, Includes: Refs. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

HARNESS - swing brake

1шт.

4

P141431

GLAND

BUSHING - harness locking

1шт.

5

P1843371

SHIN

VALVE ASSEMBLY - solenoid control, parts list Figure 8-266

1шт.

6

REF

INSTRUCTION

HOSE - control circuit, solenoid valve to swing motor, see Figure 8-206, Ref. 9

1шт.
