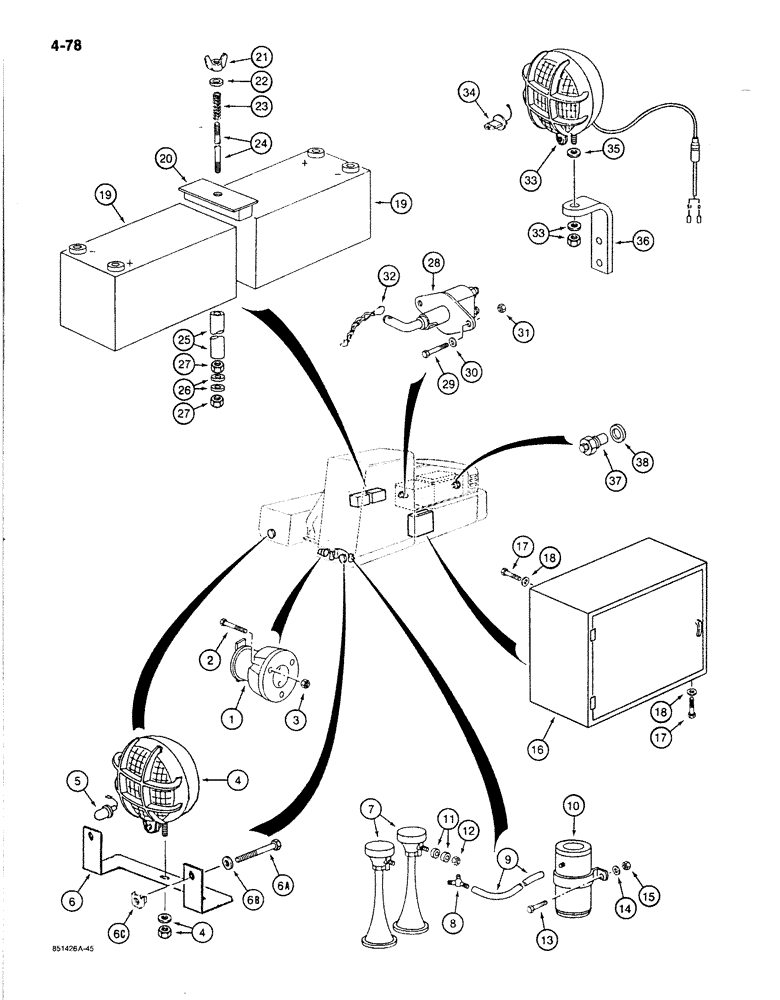

Запчасти Case 170B (4-78) - TURNTABLE ELECTRICAL COMPONENTS, P.I.N. 74442 THROUGH 74456 (04) - ELECTRICAL SYSTEMS

1

P40754

PEDESTAL

SOCKET - trouble lamp

1шт.

2

P32550

SCREW

BOLT - socket

3шт.

3

P234513

SAFETY NUT

NUT - bolt

3шт.

4

P841725

SPOTLIGHT

LAMP ASSEMBLY - work, at turntable, Includes: Ref. 5

2шт.

5

P340501

LAMP

BULB - turntable lamp

1шт.

6

P4825675

SUPPORT

BRACKET - lamp mounting

1шт.

6a

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Mounting Bracket Hex, M8 x 25, 8.8

2шт.

6b

P3528794

WASHER

SPACER - bolt

2шт.

6c

P1334571

NUT

- mounting bolt

2шт.

P141768

BUZZER

HORN ASSEMBLY - air, Includes: Refs. 7-10

1шт.

7

P141767

HORN

- air

2шт.

8

P537241

TEE

- air compressor

1шт.

9

P1031978

TUBE

HOSE - to air compressor

1шт.

10

NSS

NOT SOLD SEPARAT

AIR COMPRESSOR - electric, horn

1шт.

11

P3528799

WASHER

SPACER - horn stud

4шт.

12

P34113E

NUT,M8, Cl 8

- horn stud

2шт.

13

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 30 mm, plated

2шт.

14

P3528794

WASHER

SPACER - bolt

2шт.

15

P34113E

NUT,M8, Cl 8

- bolt

2шт.

16

REF

INSTRUCTION

ELECTRICAL BOX - main control, see Figures 4-86 and 4-88

1шт.

17

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

18

P3528795

WASHER

SPACER - bolt

6шт.

19

P941840

BATTERY, DRY

BATTERY - 12 volt, dry-type

2шт.

20

P3141474

CONNECTING STRIP

BRACKET - battery hold down

3шт.

21

P34409B

NUT, WING

WING NUT - STUD

3шт.

22

P3528794

WASHER

SPACER - wing nut

3шт.

23

P138125

COMPRESSION SPRING

SPRING - tension

3шт.

24

P1727752

TRUSS ROD

STUD - battery retaining

3шт.

25

P1231832

TUBE

SLEEVE - stud

3шт.

26

P3528794

WASHER

SPACER - sleeve

6шт.

27

P34113E

NUT,M8, Cl 8

- stud retaining

6шт.

28

P641221

IGNITION SWITCH

SWITCH - battery disconnect

1шт.

29

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 25 mm, plated

2шт.

30

P3528799

WASHER

SPACER - bolt

1шт.

31

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1 x 25 mm, plated

2шт.

32

Q2631352

CHAIN (CE)

CHAIN - battery disconnect

1шт.

33

P841725

SPOTLIGHT

LAMP ASSEMBLY - work lamp, at boom, includes washer and nut, Includes: Ref. 34

2шт.

34

P340501

LAMP

BULB - boom work lamp

1шт.

35

P35004

WASHER

- lamp mounting

2шт.

36

P2326776

LARGE PLATE

BRACKET - work lamp mounting, at boom cylinder tube clamp

2шт.

37

P641661

PROBE

SENDER - temperature, hydraulic reservoir

1шт.

38

P28430

COMPOSITE SEAL

SEAL - temperature sender

1шт.
