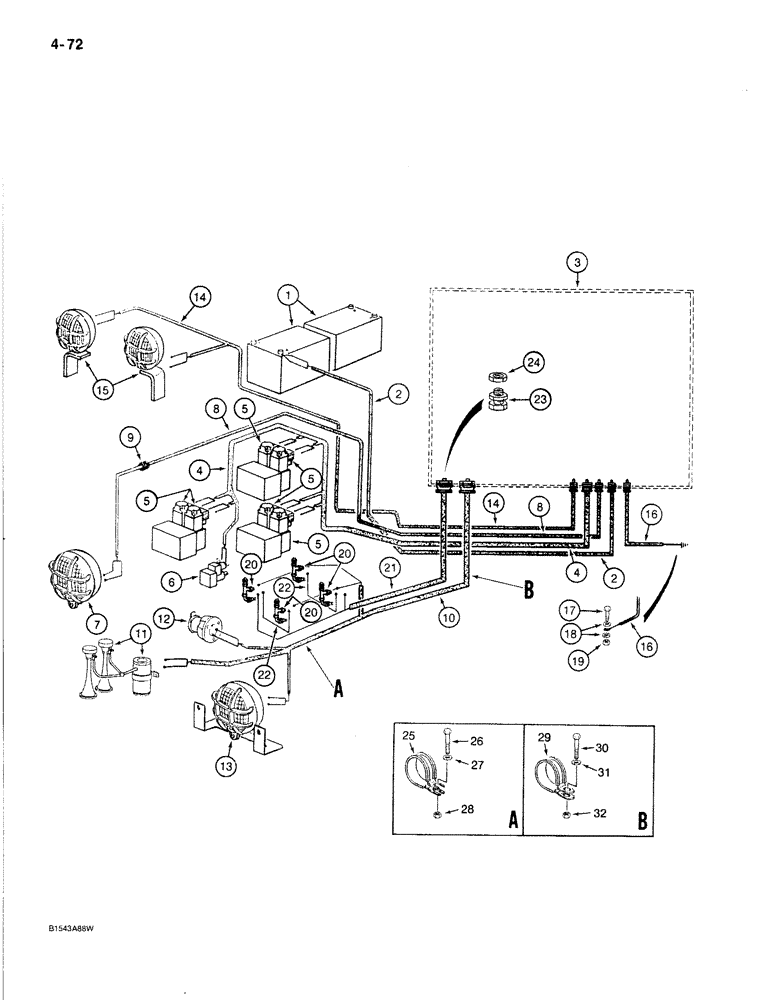

Запчасти Case 170B (4-72) - TURNTABLE ELECTRICAL HARNESS, P.I.N. 74425 THROUGH 74456 (04) - ELECTRICAL SYSTEMS

1

P941840

BATTERY, DRY

BATTERY - 12 volt, see Figure 4-79, Refs. 20 - 27 for mounting parts

2шт.

2

P8647265

CABLE

- battery to electrical box

1шт.

3

REF

INSTRUCTION

ELECTRICAL BOX - electric, see Figures 4-86 and 4-88 for parts, see Figure 4-74 for turntable harness connections

1шт.

4

P8647241

HARNESS

- electrical box to solenoid control valves

1шт.

5

P1843371

SHIN

VALVE ASSEMBLY - solenoid control, parts list Figure 8-266

6шт.

6

P3143633

BLOCK ASSY.

VALVE ASSEMBLY - solenoid control, parts list Figure 8-270

1шт.

7

REF

INSTRUCTION

LAMP ASSEMBLY - turntable, right-hand, see Figures 4-77 and 4-79, Ref. 4 for correct lamp

1шт.

8

P8647264

CABLE

HARNESS - electrical box to right-hand turntable lamp

1шт.

9

P41477

GROMMET

- rubber, harness

1шт.

10

P9247224

HARNESS

- electrical box to right-hand turntable lamp

1шт.

11

P141768

BUZZER

HORN ASSEMBLY - air, parts list Figure 4-78

1шт.

12

P40754

PEDESTAL

SOCKET - electrical attachment, see Figure 4-78, Ref. 1

1шт.

13

REF

INSTRUCTION

LAMP ASSEMBLY - turntable, left-hand, see Figures 4-77 and 4-79, Ref. 4 for correct lamp

1шт.

14

P8647240

HARNESS

- work lamps

1шт.

15

P841725

SPOTLIGHT

LAMP ASSEMBLY - work, see Figure 4-78, Ref. 33

2шт.

16

P8547239

CABLE

HARNESS - ground

1шт.

17

P1133803

SCREW

BOLT - hex head, 6 mm x 22 mm, ground harness mounting

1шт.

18

P3528799

WASHER

SPACER - 4 mm thick, ground harness mounting

2шт.

19

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated

1шт.

20

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, travel speed, see Figure 8-190 for related hydraulic components

4шт.

21

P9547228

CABLE

HARNESS - electrical, Serial Range: box-senders

1шт.

22

P9547227

ELECTRICAL WIRE

WIRE - connector, electrical senders

2шт.

23

P141431

GLAND

BUSHING - harness locking, 0.39" (10 mm) diameter

1шт.

24

P141439

NUT

- bushing, used with 0.39" (10 mm) diameter bushing

1шт.

25

P51961

CLAMP

- harness

1шт.

26

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Harness Clamp Hex, M8 x 1.25 x 22

1шт.

27

P3528794

WASHER

SPACER - clamp bolt

1шт.

28

P1334571

NUT

- hex, clamp bolt

1шт.

29

P51959

CLAMP

- harness

1шт.

30

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Harness Clamp Hex, M8 x 1.25 x 22

1шт.

31

P3528794

WASHER

SPACER - clamp bolt

1шт.

32

P34113E

NUT,M8, Cl 8

- hex, clamp bolt

1шт.
