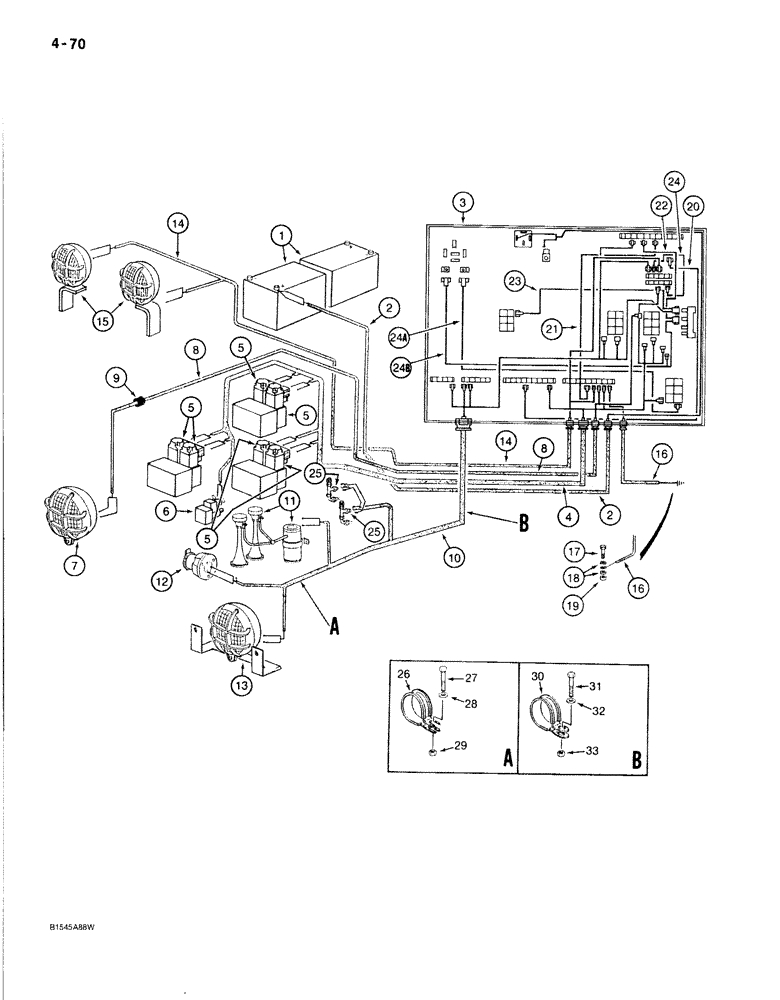

Запчасти Case 170B (4-70) - TURNTABLE ELECTRICAL HARNESS, P.I.N. 74368 THROUGH 74424 (04) - ELECTRICAL SYSTEMS

1

P941840

BATTERY, DRY

BATTERY - 12 volt, see Figure 4-76, Refs. 20 - 27 for mounting parts

2шт.

2

P8647265

CABLE

- battery to electrical box

1шт.

3

REF

INSTRUCTION

ELECTRICAL BOX - printed circuit, see Figures 4-82 and 4-86

1шт.

4

P8647265

CABLE

HARNESS - electrical box to solenoid control valves

1шт.

5

P1843371

SHIN

VALVE ASSEMBLY - solenoid control, parts list Figure 8-266

6шт.

6

P3143633

BLOCK ASSY.

VALVE ASSEMBLY - solenoid control, parts list Figure 8-270

1шт.

7

P141795

SPOTLIGHT

LAMP ASSEMBLY - turntable, right-hand, see Figure 4-76, Ref. 4

1шт.

8

P8647264

CABLE

HARNESS - electrical box to right-hand turntable lamp

1шт.

9

P41477

GROMMET

- rubber, harness

1шт.

10

P9247224

HARNESS

- horn, trouble lamp, and left-hank turntable lamp

1шт.

11

P141768

BUZZER

HORN ASSEMBLY - air, parts list Figure 4-76

1шт.

12

P40754

PEDESTAL

SOCKET - trouble lamp, see Figure 4-76, Ref. 1

1шт.

13

P141795

SPOTLIGHT

LAMP ASSEMBLY - turntable, left-hand, see Figure 4-76, Ref. 4

1шт.

14

P8647240

HARNESS

- work lamps

1шт.

15

P841725

SPOTLIGHT

LAMP ASSEMBLY - work, see Figure 4-76, Ref. 33

2шт.

16

P8547239

CABLE

HARNESS - ground

1шт.

17

P1133803

SCREW

BOLT - ground harness mounting

1шт.

18

P3528799

WASHER

SPACER - ground harness mounting bolt

2шт.

19

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated

1шт.

20

P8647281

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

21

P9247220

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

22

P9247221

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

23

P9247222

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

24

P9247252

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

24a

P9547220

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

24b

P9547221

ELECTRICAL WIRE

WIRE - connector, electrical box

1шт.

25

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, travel speed, see Figure 8-186 for related hydraulic components

2шт.

26

P51961

CLAMP

- harness

1шт.

27

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Harness Clamp Hex, M8 x 1.25 x 22

1шт.

28

P3528794

WASHER

SPACER - clamp bolt

1шт.

29

P1334571

NUT

- hex, clamp bolt

1шт.

30

P51959

CLAMP

- harness

1шт.

31

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Harness Clamp Hex, M8 x 1.25 x 22

1шт.

32

P3528794

WASHER

SPACER - clamp bolt

1шт.

33

P34113E

NUT,M8, Cl 8

- hex, clamp bolt

1шт.
