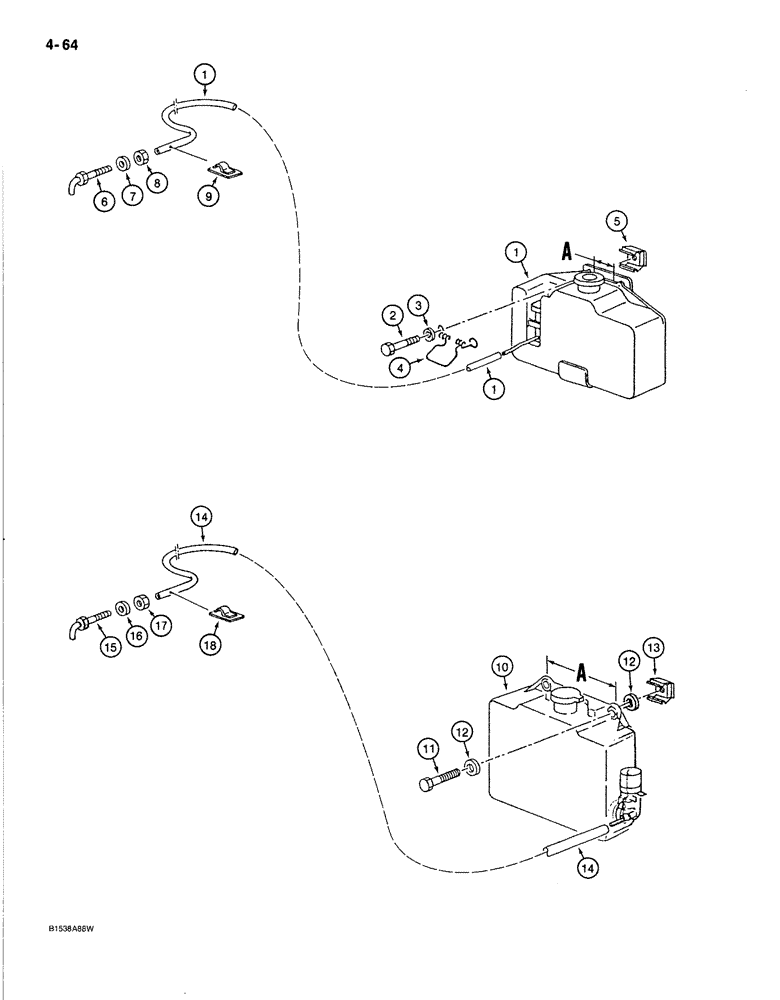

Запчасти Case 170B (4-64) - CAB WNDSHLD WASHR,PIN 74341-74456,WSHR RESRVR MOUNTING BRKT " A" 3 3/16" (81 MM), 5 5/16" (135 MM) (04) - ELECTRICAL SYSTEMS

1

P141878

WINDSHIELD WASHER

PUMP AND RESERVOIR - windshield washer

1шт.

2

120100

BOLT,M6 x 20mm, Cl 8.8

Reservoir mounting to cab Hex, M6 x 20, 8.8

2шт.

3

P35001

WASHER

- flat

2шт.

4

P38244

SPRING

- reservoir cap

1шт.

5

P1334574

NUT

- retainer, clip type

2шт.

6

P643210

NOZZLE - windshield washer

1шт.

7

P4528713

WASHER

SPACER - washer nozzle

2шт.

8

100016

NUT,M10 x 1.5, Cl 8

Washer Nozzle M10, Cl 8

1шт.

9

P1241413

CLIP,ELECTRICAL

CLIP - washer hose to cab frame

2шт.

10

P1241880

RESERVOIR ASSY.

PUMP AND RESERVOIR - windshield washer, mounting bracket "A" dimension is 5 5/16 inches (135 millimeters)

1шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

Reservoir mounting to cab, Washer bracket "A" dimension is 5 5/16 inches (135 millimeters) Hex, M6 x 20, 8.8

2шт.

12

P35002

WASHER

- flat, reservoir mounting bracket "A" dimension is 5 5/16 inches (135 millimeters)

4шт.

13

P1334574

NUT

- retainer, clip type, washer reservoir mounting bracket "A" dimension is 5 5/16 inches (135 millimeters)

2шт.

14

P1103643

PIPE

HOSE - washer nozzle, washer reservoir mounting bracket "A" dimension is 5 5/16 inches (135 millimeters)

1шт.

15

P943210

JET

NOZZLE - windshield washer, reservoir mounting bracket "A" dimension is 5 5/16 inches (135 millimeters)

1шт.

16

P4528713

WASHER

SPACER - washer nozzle, reservoir mounting bracket "A" dimension is 5 5/16 inches (135 millimeters)

2шт.

17

100016

NUT,M10 x 1.5, Cl 8

Washer Nozzle, Reservoir Mounting Bracket "A" dimension is 5 5/16 inches (135 millimeters) M10, Cl 8

1шт.

18

P1241413

CLIP,ELECTRICAL

CLIP - washer hose to cab frame, reservoir mounting bracket "A" dimension is 5 5/16 inches (135 millimeters)

2шт.
