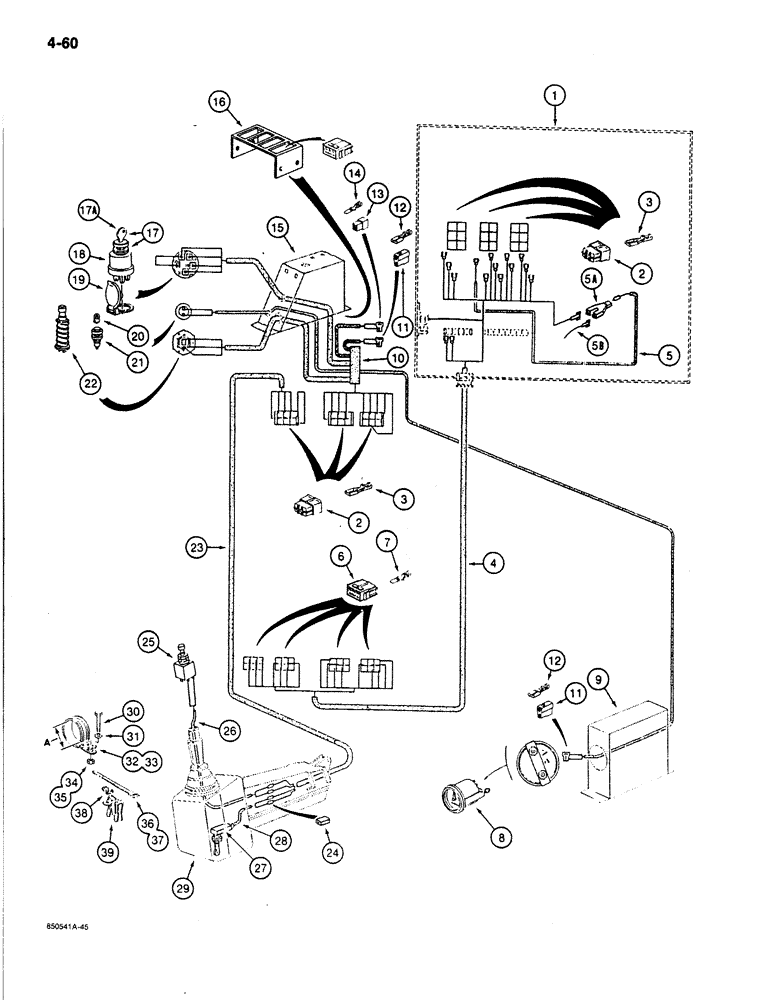

Запчасти Case 170B (4-60) - CAB ELECTRICAL HARNESS, P.I.N. 74341 THROUGH 74456 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BOX - electric, printed circuit, see Figures 4-82 - 4-88 for correct electric box

1шт.

2

P840757

CASE

CONNECTOR - male, 6-way

6шт.

3

P40937

CLIP,ELECTRICAL

CLIP - wire

1шт.

4

P8547231

HARNESS

- wiring, electric box

1шт.

5

P8647297

ELECTRICAL WIRE

HARNESS - wiring, electric box

1шт.

5a

P640964

FITTING

CONNECTOR - electric box harness to engine harness

1шт.

5b

P8647242

HARNESS

- wiring, engine, see Figure 4-42, Ref. 12

1шт.

6

P740844

CASE

CONNECTOR - female, 6-way

4шт.

7

P40938

CONNECTION

RETAINER - wire

1шт.

8

P2141660

METER

HOURMETER - electric

1шт.

9

P2726370

SUPPORT

BRACKET - mounting, fuel shutoff cable, see Figure 3-36, Ref. 8

1шт.

10

P8547232

HARNESS

- wiring, instruments

1шт.

11

P440714

CASE

CONNECTOR - male, 2-way

2шт.

12

P640945

CLIP,ELECTRICAL

CLIP - wire

2шт.

13

P740848

CASE

CONNECTOR - female, 2-way

1шт.

14

P40938

CONNECTION

RETAINER - wire

1шт.

15

P5328211

SUPPORT

COVER - throttle control, see Figure 3-36, Ref. 25

1шт.

16

P2225949

SUPPORT

BRACKET - connector mounting, see Figure 3-36, Ref. 30

1шт.

P1541654

SWITCH

ASSEMBLY - electrical system, Includes: Refs. 17, 17A, and 18

1шт.

P1541654 Switch Assy, Replaced by P2741648 Switch and P1352067 Key

1шт.

17

P2044492

KEY

CYLINDER AND KEY - switch

1шт.

17a

N60362

KEY

- switch

1шт.

18

NSS

NOT SOLD SEPARAT

SWITCH - electrical system

1шт.

19

P1540490

LIGHT FAIRING

COVER - key switch

1шт.

20

P40560

LAMP

BULB - engine preheating indicator

1шт.

21

P641648

SIGHTGLASS

INDICATOR - engine preheating

1шт.

22

P1343242

CIGAR LIGHTER

LIGHTER - cigarette, electric

1шт.

23

P8547227

HARNESS

- wiring, horn and safety switch control

1шт.

24

P40941

CONNECTION,ELECTRIC

CONNECTOR - wire clip

4шт.

P2141655

IGNITION SWITCH

SWITCH ASSEMBLY - horn control, includes button, Includes: Refs. 25, 26

1шт.

25

P1541665

SWITCH

- horn control

1шт.

26

NSS

NOT SOLD SEPARAT

WIRE - horn switch

1шт.

27

P1541649

DETECTOR

SWITCH ASSEMBLY - safety, Includes: Refs. 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

HARNESS - safety switch

1шт.

29

P4842739

CASE

HOUSING ASSEMBLY - console, hank control valve, see Figure 9-330, Refs. 3 and 4

1шт.

30

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Clamp Mounting Hex, M8 x 1.25 x 22

1шт.

31

P3528794

WASHER

SPACER - clamp

1шт.

32

P51959

CLAMP

CAMP - harness, rubber coated, dimension "A" is 1-1/2" (38-39 mm)

1шт.

33

P1736988

CLAMP

- harness, rubber coated, dimension "A" is 1-3/4" - 2" (44-51 mm)

1шт.

34

P34113

NUT

- hex, used with P51959 clamp

1шт.

35

P1334571

NUT

- hex, used with P51959 clamp

1шт.

36

P336923

CLAMP

TIE STRAP - harness, 4-5/8" (117 mm) long

1шт.

37

P51946

CLAMP

TIE STRAP - harness, 10-1/8" (252 mm) long

1шт.

38

P2036939

CLASP

RETAINER - tie strap

1шт.

39

P2036902

CLASP

CLIP - retainer, expands from 1/8" - 1-4" (3 to 7 mm)

1шт.
