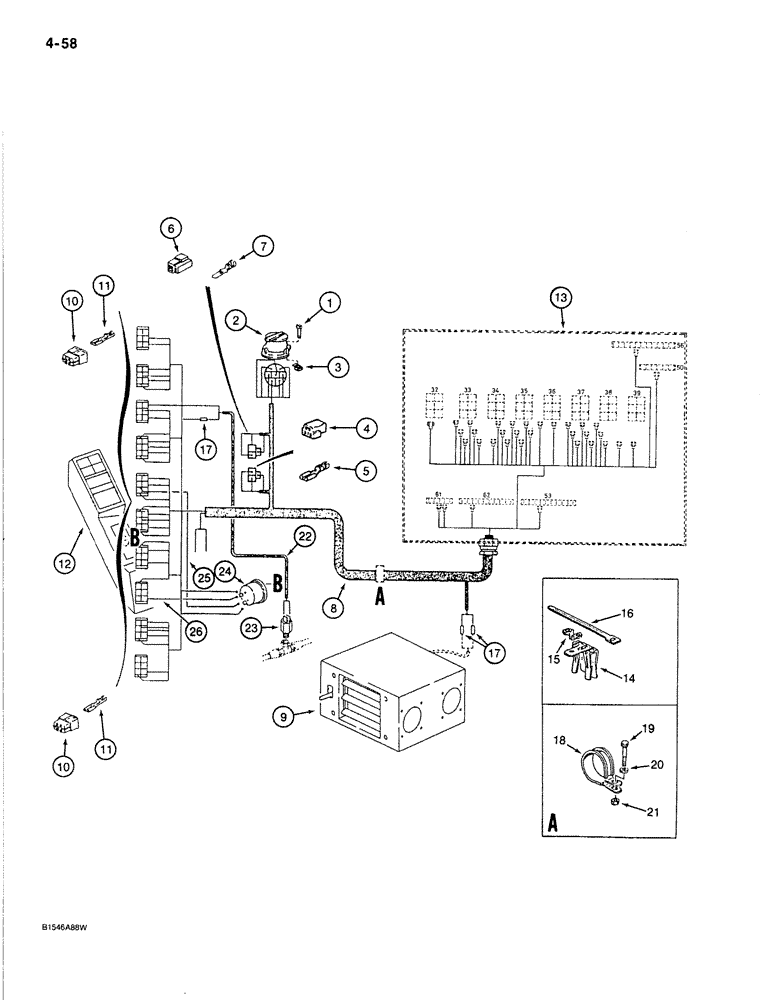

Запчасти Case 170B (4-58) - INSTRUMENT PANEL ELECTRICAL HARNESS, P.I.N. 74442 THROUGH74456 (04) - ELECTRICAL SYSTEMS

1

P32550

SCREW

- slotted head, 6 mm x 30 mm

3шт.

2

P40745

PEDESTAL

SOCKET - cab harness

1шт.

3

P1634573

NUT

- cage type, 6 mm

3шт.

4

P1340708

CASE

CONNECTOR - male, 3-way

1шт.

5

P640945

CLIP,ELECTRICAL

CLIP - wire

3шт.

6

P840766

ELEC CONNECTOR

CONNECTOR - female, 3-way

1шт.

7

P40938

CONNECTION

RETAINER - wire

3шт.

8

P8547233

HARNESS

- instrument panel

1шт.

9

P1241846

HEATER ASSY.

HEATER - see Figure 4-92 for correct heater

1шт.

10

P840757

CASE

CONNECTOR - male, 6-way

10шт.

11

P40937

CLIP,ELECTRICAL

CLIP - wire

1шт.

12

REF

INSTRUCTION

PANEL - instrument, see Figure 4-52 for component parts, not serviced as complete assembly

1шт.

13

REF

INSTRUCTION

BOX - electrical, see Figures 4-86 and 4-88

1шт.

14

P2036902

CLASP

CLIP - retainer, expands from 1/8" (3 mm) to 1/4" (7 mm)

1шт.

14

P2036903

CLASP

CLIP - retainer, expands from 5/16" (8 mm) to 1/2" (13 mm)

1шт.

14

P1436963

CLASP

CLIP - retainer, expands from 9/16" (14 mm) to 3/4" (20 mm)

1шт.

15

PP2036939

CLASP

RETAINER - tie strap

1шт.

16

P336923

CLAMP

TIE STRAP - harness, 4-5/8"(117 mm) long

1шт.

16

P51946

CLAMP

TIE STRAP - harness, 10-1/8"(258 mm) ong

1шт.

16

P136922

CLAMP

TIE STRAP - harness, 13-7/8"(351 mm) long

1шт.

17

P40941

CONNECTION,ELECTRIC

CONNECTOR - wire clip

3шт.

18

P1736988

CLAMP

- harness, 1-3/4"(44 mm) to 2"(51 mm) diameter

1шт.

19

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Harness Clamp Hex, M8 x 1.25 x 22

1шт.

20

P3528794

WASHER

SPACER - clamp bolt

1шт.

21

P1334571

NUT

- clamp bolt

1шт.

22

P9247229

CABLE

HARNESS -, Serial Range: electrical,-sender

1шт.

23

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, see Figure 4-189 for hydraulic control circuit connections

1шт.

24

P841710

BUZZER

ALARM - low engine oil pressure, see Figure 4-52 for mounting parts

1шт.

25

P9547271

ELECTRICAL WIRE

WIRE - connector, Serial Range: harness-alarm

1шт.

26

P9547272

ELECTRICAL WIRE

WIRE - connector, Serial Range: harness-alarm

1шт.
