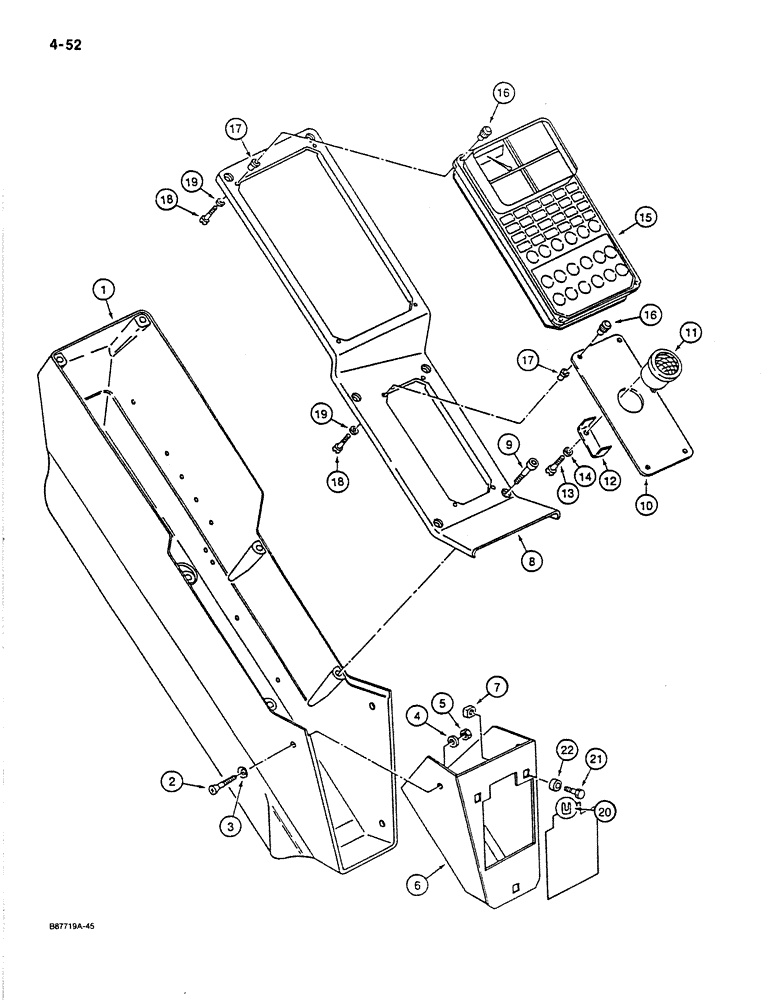

Запчасти Case 170B (4-52) - INSTRUMENT PANEL, P.I.N. 74442 THROUGH 74456 (04) - ELECTRICAL SYSTEMS

1

P6643862

PANEL, INSTRUMENTS

CONSOLE - instrument and controls

1шт.

2

P32415

SCREW

- Phillips head, 10 mm x 35 mm, class 10.9

5шт.

3

P34802

WASHER

- finish, console screw

5шт.

4

P3528795

WASHER

SPACER - screw, 7 mm thick

5шт.

5

100016

NUT,M10 x 1.5, Cl 8

5шт.

6

P4728221

SUPPORT

BRACKET - console mounting

1шт.

7

P1334560

NUT

- cage type, 10 mm

3шт.

8

P3840376

COVER

- console, top

1шт.

9

P32910

SCREW

BOLT - hex socket head, 6 mm x 10 mm

6шт.

10

P4423412

LARGE PLATE

COVER - console, access

1шт.

11

P841710

BUZZER

ALARM - low engine oil pressure, for electrical connection see Figure 4-58

1шт.

12

P2025991

SUPPORT

BRACKET - retainer, alarm

1шт.

13

P32529

SCREW,Hex Soc Hd, M4 x 16

- slotted head, 4 mm x 16 mm

1шт.

14

P4328717

WASHER

SPACER - screw, 3 mm thick

1шт.

15

P7043857

PANEL, INSTRUMENTS

PANEL ASSEMBLY - controls, see Figure 4-54

1шт.

16

P641612

BUTTON

NUT - retainer, access cover and control, Serial Range: panel-console

8шт.

17

P2036924

BUSHING

RETAINER - screw to console cover

8шт.

18

P32531

SCREW

- slotted head, 4 mm x 20 mm

8шт.

19

P34603

WASHER

- special, cover nad panel screw

8шт.

20

REF

INSTRUCTION

TRIM - edge, console braclet, 23-5/8" (600 mm) long, cut from P303112

1шт.

21

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

22

P3528795

WASHER

SPACER - bolt, 7 mm thick

3шт.
