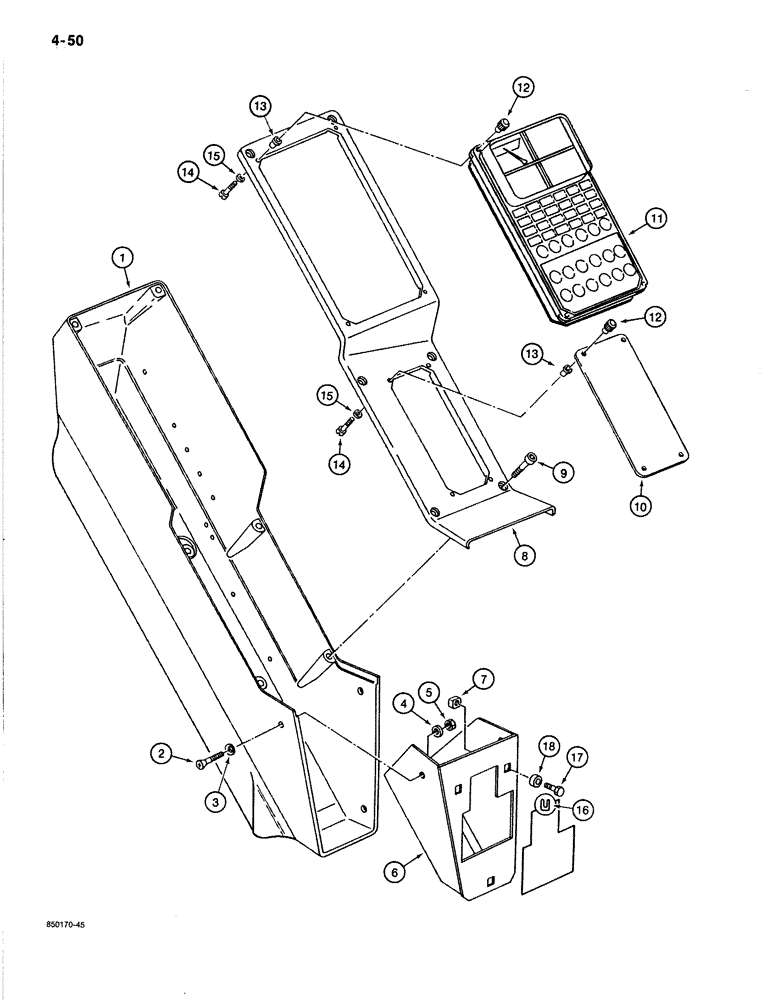

Запчасти Case 170B (4-50) - INSTRUMENT PANEL, P.I.N. 74341 THROUGH 74441 (04) - ELECTRICAL SYSTEMS

1

P6643862

PANEL, INSTRUMENTS

CONSOLE - instrument and controls

1шт.

2

P32415

SCREW

-, Serial Range: console-bracket

5шт.

3

P34802

WASHER

- finish, console screw

5шт.

4

P3528795

WASHER

SPACER -, Serial Range: screw-bracket

5шт.

5

100016

NUT,M10 x 1.5, Cl 8

Console to Bracket M10, Cl 8

5шт.

6

P4728221

SUPPORT

BRACKET - console mounting

1шт.

7

P1334560

NUT

- retainer, console bracket

3шт.

8

P3840376

COVER

- console, top

1шт.

9

P32910

SCREW

-, Serial Range: cover-console

6шт.

10

P2340409

LARGE PLATE

COVER - console, access

1шт.

11

P7043857

PANEL, INSTRUMENTS

PANEL ASSEMBLY - controls, parts list Figure 4-54

1шт.

12

P641612

BUTTON

NUT - retainer, access cover and control, Serial Range: panel-console

8шт.

13

P2036924

BUSHING

RETAINER - screw to console cover

8шт.

14

P32531

SCREW

- cover and control, Serial Range: panel-console

8шт.

15

P34603

WASHER

- lock, cover and panel screw

8шт.

16

D483592

TRIM - edge, console bracket

1шт.

17

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Console bracket Hex, M10 x 30, 8.8

3шт.

18

P3528795

WASHER

SPACER - console bracket bolt

3шт.
