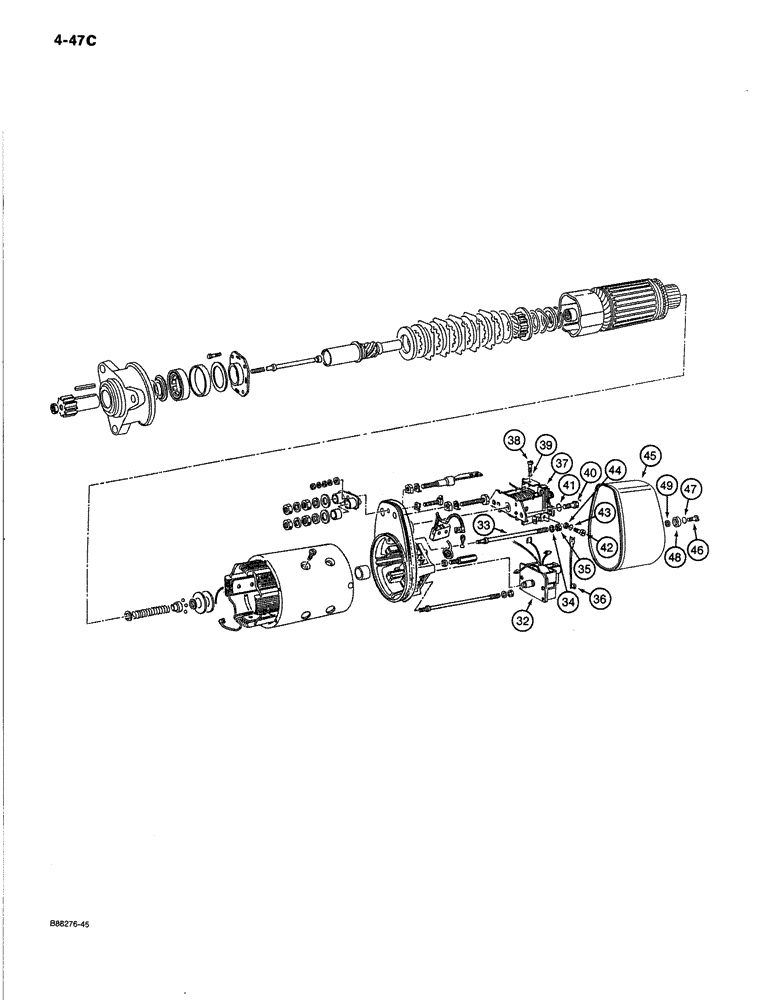

Запчасти Case 170B (4-47C) - STARTER (04) - ELECTRICAL SYSTEMS

P941505

STARTING MOTOR

STARTER - 24 volt, continued from Figure 4-47A, service replacement for P41592 starter, Includes: Refs. 32-49

1шт.

32

P841889

SOLENOID SWITCH

SOLENOID - magnetic switch

1шт.

33

P2527773

STUD

- drive end cover to brush holder

1шт.

34

P1846362

WASHER

- lock

1шт.

35

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Stud M6, Cl 10

1шт.

36

P3547216

CABLE

WIRE - relay

1шт.

37

P441191

RELAY

- starter control

1шт.

38

P3333025

SCREW

- battery connector bolt

1шт.

39

P34704

DEUTZ PART

WASHER - lock

1шт.

40

P533813

SCREW

BOLT - relay mounting

2шт.

41

P734704

WASHER

- lock

2шт.

42

P3333025

SCREW

BOLT - relay

3шт.

43

P34704

DEUTZ PART

WASHER - lock

3шт.

44

P1045329

DEUTZ PART

WASHER - flat

3шт.

45

P1540409

COVER

- end, brush holder

1шт.

46

P32516

SCREW

BOLT - brush holder end cover to special bolt (Ref. 27 on Figure 4-47A)

2шт.

47

P534702

WASHER

- lock

2шт.

48

P1545383

DISC

WASHER - seal

2шт.

49

P5346056

SEAL

- cover

2шт.
