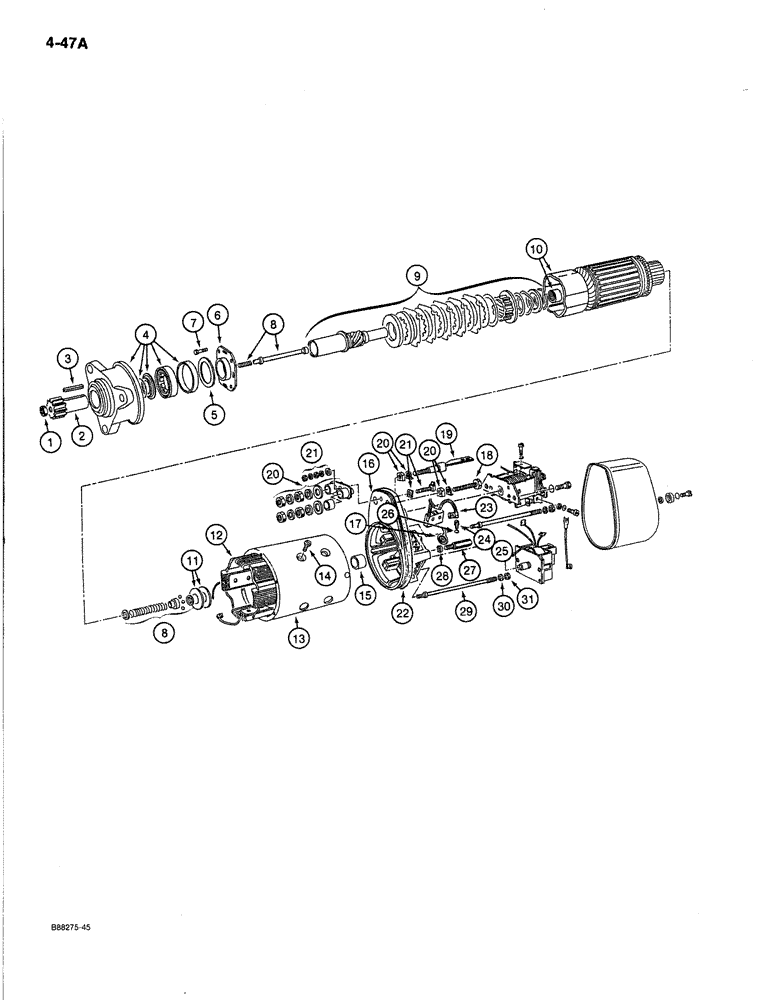

Запчасти Case 170B (4-47A) - STARTER (04) - ELECTRICAL SYSTEMS

P941505

STARTING MOTOR

STARTER ASSEMBLY - 24 volt, service replacement for P41592 starter, Includes: Refs. 1-31

1шт.

1

P2434531

NUT

- engagement rod

1шт.

2

P4339364

PINION

GEAR - drive

1шт.

3

P236158

BUCKET TOOTH KEY

KEY - lock, pinion gear

1шт.

4

P39566

CYLINDER END CAP

COVER AND BEARING ASSEMBLY - drive end

1шт.

5

P1545369

WASHER

WEAR RING - bushing

1шт.

6

P39569

CYLINDER END CAP

CAP - end, armature

1шт.

7

P3333023

SCREW

BOLT - end cap

4шт.

8

P2127996

SHAFT

KIT - engagement rod

1шт.

9

P7646264

COUPLING, BREAK AWAY

KIT - clutch, starter

1шт.

10

P941531

ARMATURE

ASSEMBLY - starter

1шт.

11

P1545379

WASHER

KIT - washer set, 0.008" (0.20 mm) thick, commutator end

1шт.

11

P1545380

WASHER

KIT - washer set, 0.012" (0.30 mm) thick, commutator end

1шт.

11

P1545381

WASHER

KIT - washer set, 0.020" (0.50 mm) thick, commutator end

1шт.

12

P8346203

COIL

- field

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - coil and brushes

1шт.

14

P32425

SCREW

- pole, Serial Range: shoe-housing

8шт.

P39567

CYLINDER END CAP

TERMINAL ASSEMBLY - brushes, insulators, and mounting, Includes: Refs. 15-19

1шт.

15

P1528607

BEARING LINER

BEARING - brush holder

1шт.

16

NSS

NOT SOLD SEPARAT

BRUSH HOLDER - starter

1шт.

17

P38081

SPRING

- brush holder

4шт.

18

P133813

SCREW

BOLT - mounting

1шт.

19

P1533083

SCREW

BOLT - connector, battery, attaches to Ref. 38 screw on Figure 4-41

1шт.

20

P7646263

SET OF PARTS

KIT - insulator and terminal hardware

1шт.

21

P7646262

SET OF PARTS

SET OF HARDWARE - insulator mounting

1шт.

22

P5346058

GASKET

O-RING - brush holder

1шт.

23

P1241274

SET

KIT - brush set, starter

1шт.

24

P3333024

SCREW

- 5 mm x 14 mm, special, mounting, brush

2шт.

25

P3333025

SCREW

- 5 mm x 10 mm. special, mounting, brush

2шт.

26

P34704

DEUTZ PART

WASHER - lock

4шт.

27

P1727721

STUD

BOLT - special, end cover attaching

2шт.

28

P1545382

WASHER

- flat

2шт.

29

P2527774

STUD

- drive end cover to brush holder

3шт.

30

P1846362

WASHER

- lock

3шт.

31

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Stud M6, Cl 10

3шт.
