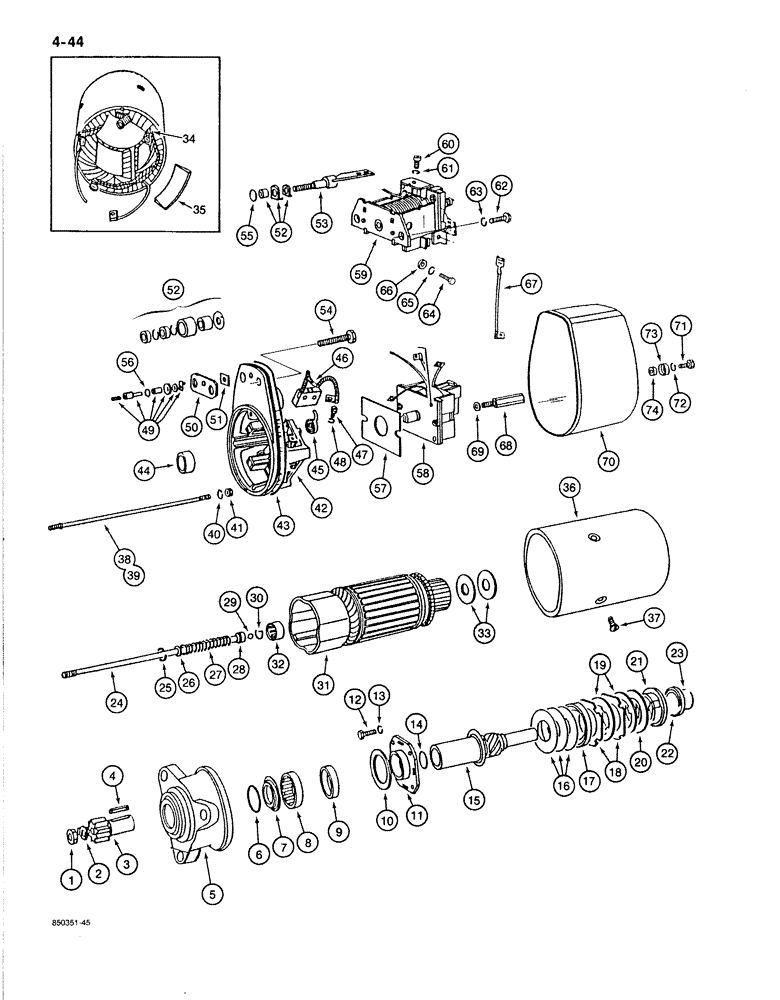

Запчасти Case 170B (4-44) - STARTER, P.I.N. 74341 THROUGH 74456 (04) - ELECTRICAL SYSTEMS

P41592

STARTING MOTOR

STARTER ASSEMBLY - 24 volt, no longer available, order P941505 when replacing complete starter, see Figures 4-47A and 4-47C, Includes: Refs. 1-33

1шт.

1

P534559

DEUTZ PART

NUT - engagement rod

1шт.

2

P2122806

BRAKE

RING - lock

1шт.

3

P2139388

PINION

GEAR - pinion, drive

1шт.

4

P236158

BUCKET TOOTH KEY

KEY - lock, pinion gear

1шт.

P39566

CYLINDER END CAP

COVER ASSEMBLY - bearing, drive end, Includes: Refs. 5-9

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - drive end

1шт.

6

P38068

COIL SPRING

RING - tension spring

1шт.

7

P5346055

SEAL

- shaft

1шт.

8

P739956

BEARING

- shaft

1шт.

9

P1528606

BEARING LINER

BUSHING - cover

1шт.

10

P1545369

WASHER

RING - wear, bushing

1шт.

11

P39569

CYLINDER END CAP

CAP - end, armature

1шт.

12

P732605

BOLT

BOLT - end cap

4шт.

13

P34704

DEUTZ PART

WASHER - lock

4шт.

14

NSS

NOT SOLD SEPARAT

SEAL - pinion, Serial Range: gear-shaft

1шт.

Part of seal Kit P/N P2249655

1шт.

15

P3546217

SHAFT

- drive, multi-disc clutch

1шт.

16

P34993

RUBBER WASHER

WASHER - spring, clutch

3шт.

17

P545599

RING

- backup, washer

1шт.

18

P1545371

DISC

- clutch, square type

5шт.

19

P1545370

DISC

- clutch, round type

6шт.

20

P1545372

WASHER

SHIMS - set, 0.014" (0.35 mm) thick

1шт.

20

P1545373

WASHER

SHIMS - set, 0.016" (0.40 mm) thick

1шт.

20

P1545374

WASHER

SHIMS - set, 0.018" (0.45 mm) thick

1шт.

20

P1545375

WASHER

SHIMS - set, 0.020" (0.50 mm) thick

1шт.

20

P1545376

WASHER

SHIMS - set, 0.022" (0.55 mm) thick

1шт.

20

P1545377

WASHER

SHIMS - set, 0.024" (0.60 mm) thick

1шт.

20

P1545378

WASHER

SHIMS - set, 0.026" (0.65 mm) thick

1шт.

21

P1143004

CLUTCH

RING - clutch

1шт.

22

P3028764

BUSHING

- clutch ring

1шт.

23

P1736962

SPECIAL RING

RING - retaining, multi-disc clutch

1шт.

P3027852

LARGE PIN

ROD ASSEMBLY - engagement, Includes: Refs. 24-30

1шт.

24

NSS

NOT SOLD SEPARAT

ROD - engagement

1шт.

25

P1736964

SPECIAL MAT. SEAL

WASHER - spring

1шт.

26

P3028766

BUSHING

- rod

1шт.

27

P38069

COIL SPRING

SPRING - return

1шт.

28

P3028765

BUSHING

- rod

1шт.

29

P31025

BALL

- thrust

1шт.

30

P1736963

SPECIAL MAT. SEAL

RING - retaining, bushing

1шт.

P1541623

INDICATOR

ARMATURE ASSEMBLY - starter, Includes: Refs. 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

ARMATURE - starter

1шт.

32

P5130129

CUP

BEARING - drive end

1шт.

33

P1545379

WASHER

S - set, 0.008" (0.20 mm) thick, commutator end

1шт.

33

P1545380

WASHER

S - set, 0.012" (0.30 mm) thick, commutator end

1шт.

33

P1545381

WASHER

S - set, 0.020" (0.50 mm) thick, commutator end

1шт.

P2249655

SEAL PACKAGE

KIT - seal, includes Refs. 14, 42, 55 and 56

1шт.

34

P841888

SPINDLE

COIL - field

1шт.

35

P1941416

BAND

SHOE - pole

4шт.

36

NSS

NOT SOLD SEPARAT

HOUSING - coil and brushes

1шт.

37

P1533085

SCREW

- pole, Serial Range: shoe-housing

4шт.

38

P1727719

ROD,THREADED

STUD - drive end cover to brush holder

3шт.

39

P1727720

THREADED ROD

STUD - drive end cover to brush holder

1шт.

40

P34707

WASHER

- lock

8шт.

41

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1 plated

4шт.

P39567

CYLINDER END CAP

TERMINAL ASSEMBLY - includes burshes, insulators, and mounting, Includes: Refs. 42-54

1шт.

42

NSS

NOT SOLD SEPARAT

HOLDER - brush, starter

1шт.

Part of seal Kit P/N P2249655

1шт.

43

NSS

NOT SOLD SEPARAT

O-RING - brush holder, large

1шт.

Part of seal Kit P/N P2249655

1шт.

44

P1528607

BEARING LINER

BEARING - brush holder

1шт.

45

P38081

SPRING

- brush holder

4шт.

46

P841220

SET

BRUSHES - set, starter

1шт.

47

P32524

SCREW

BOLT - brush

4шт.

48

P34704

DEUTZ PART

WASHER - lock

4шт.

49

P840732

SET

HARDWARE - set, insulator mounting

1шт.

50

P1941415

PLATE, SPACER

INSULATORS - set, 0.08" (2 mm) thick

1шт.

51

P1941418

SPACER

INSULATORS - set, 0.01" (0.3 mm) thick

1шт.

52

P840733

SET

HARDWARE - setr, terminal

2шт.

53

P1533083

SCREW

BOLT - connector, battery, attaches to Ref. 60 screw

1шт.

54

P133813

SCREW

BOLT - mounting

1шт.

55

NSS

NOT SOLD SEPARAT

O-RING - terminal hardware

2шт.

Part of seal Kit P/N P2249655

1шт.

56

NSS

NOT SOLD SEPARAT

O-RING - insulator hardware

1шт.

Part of seal Kit P/N P2249655

1шт.

57

P2122808

SPACER

PLATES - set, 0.016" (0.40 mm) thick, solenoid

1шт.

57

P2122808

SPACER

PLATES - set, 0.031" (0.80 mm) thick, solenoid

1шт.

58

P841889

SOLENOID SWITCH

SOLENIOD - magnetic switch

1шт.

59

P441191

RELAY

- starter control

1шт.

60

P32524

SCREW

- battery connector bolt

1шт.

61

P34704

DEUTZ PART

WASHER - lock

1шт.

62

P933860

SCREW

BOLT - relay mounting

2шт.

63

P34709

WASHER

- lock

2шт.

64

P32524

SCREW

BOLT - relay

4шт.

65

P34704

DEUTZ PART

WASHER - lock

4шт.

66

P1045329

DEUTZ PART

WASHER - flat

4шт.

67

P3547216

CABLE

WIRE - relay

1шт.

68

P1727721

STUD

BOLT - special, end cover attaching

2шт.

69

P1545382

WASHER

- flat

2шт.

70

P1540407

LIGHT FAIRING

COVER - end, brush holder

1шт.

71

P32526

SCREW

BOLT - brush holder end cover to special bolt

2шт.

72

P34707

WASHER

- lock

2шт.

73

P1545383

DISC

WASHER - seal

2шт.

74

P5346056

SEAL

- cover

2шт.

P2249655

SEAL PACKAGE

KIT - seal, includes Refs. 14, 43, 55, and 56

1шт.
