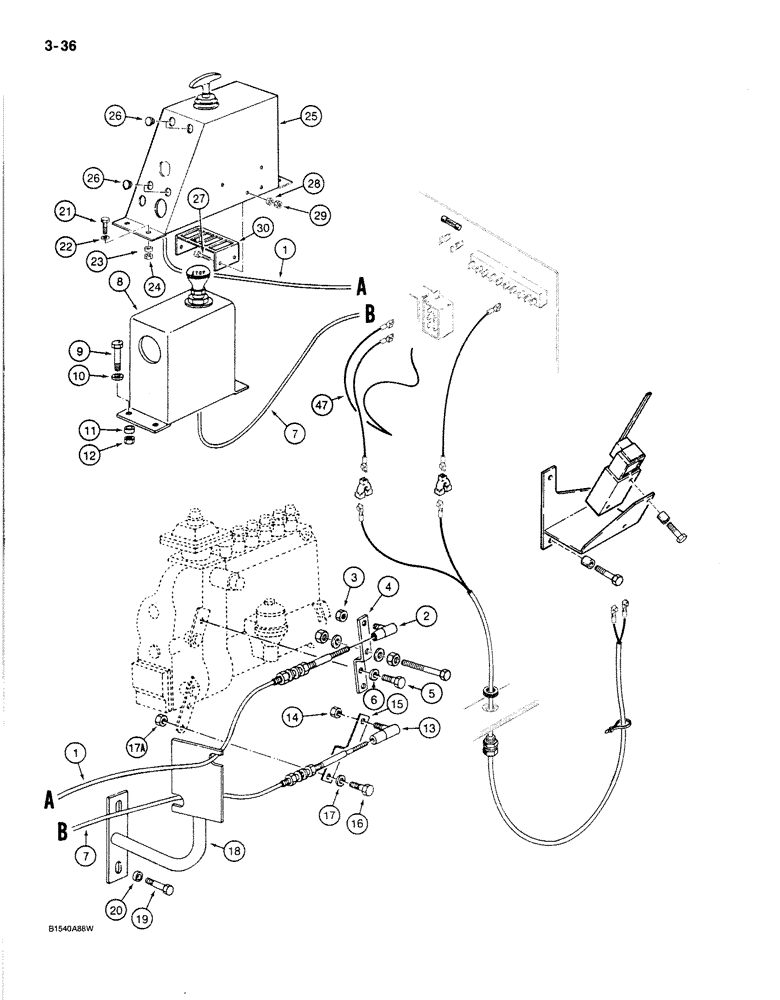

Запчасти Case 170B (3-36) - THROTTLE AND FUEL SHUTOFF CONTROLS, P.I.N. 74400 THROUGH 74456 (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
P2531391
CONTROL SLIDE
CABLE - throttle control
1шт.
2
P140003
BALL JOINT
JOINT - ball, throttle, Serial Range: cable-lever
1шт.
3
825-1106
NUT,Hex, M6, Cl 8
- hex, 6 mm - 1, plated
1шт.
4
P2826116
LEVER
- throttle control, at pump
1шт.
5
P133857
SCREW
BOLT - throttle, Serial Range: lever-pump
1шт.
6
P3528799
WASHER
SPACER - throttle lever bolt
1шт.
7
P2531335
CONTROL SLIDE
CABLE - fuel shutoff
1шт.
8
P2726370
SUPPORT
BRACKET - Mounting, fuel shutoff cable
1шт.
9
814-8065
BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8
- hex head, 8 mm - 1.25 x 65 mm, plated
4шт.
10
P3528799
WASHER
SPACER - bracket bolt, upper
4шт.
11
P4328732
WASHER
SPACER - bracket bolt, lower
4шт.
12
P1334571
NUT
- hex, bracket bolt
4шт.
13
P40093
BALL JOINT
JOINT - ball, shutoff, Serial Range: cable-lever
1шт.
14
P34108
NUT
- hex, ball, Serial Range: joint-lever
1шт.
15
P1026133
LEVER
- fuel shutoff, at pump
1шт.
16
814-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
- hex head, 6 mm - 1 x 25 mm, plated
2шт.
17
P3528799
WASHER
SPACER - shutoff lever bolt
2шт.
17a
P234513
SAFETY NUT
NUT - hex, shutoff lever bolt
2шт.
18
P3128210
SUPPORT
BRACKET - mounting, throttle and fuel shutoff cables
1шт.
19
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
BOLT, , Mounting Bracket Hex, M8 x 25, 8.8
2шт.
20
P3528794
WASHER
SPACER - mounting bracket bolt
2шт.
21
P133865
SCREW
BOLT - throttle control cover
4шт.
22
P3528794
WASHER
SPACER - cover bolt,upper
4шт.
23
P4328732
WASHER
SPACER - cover bolt, lower
4шт.
24
P1334571
NUT
- cover bolt
4шт.
25
P5328211
SUPPORT
COVER - throttle control
1шт.
26
P1737419
PLUG
- cover
4шт.
27
P32529
SCREW,Hex Soc Hd, M4 x 16
BOLT - bracket, harness end
4шт.
28
P4328717
WASHER
SPACER - bracket bolt
4шт.
29
P34107X
NUT,M4, Cl 8
- bracket bolt
4шт.
30
P2225949
SUPPORT
BRACKET - harness end
1шт.
Выбрано товаров: 31
