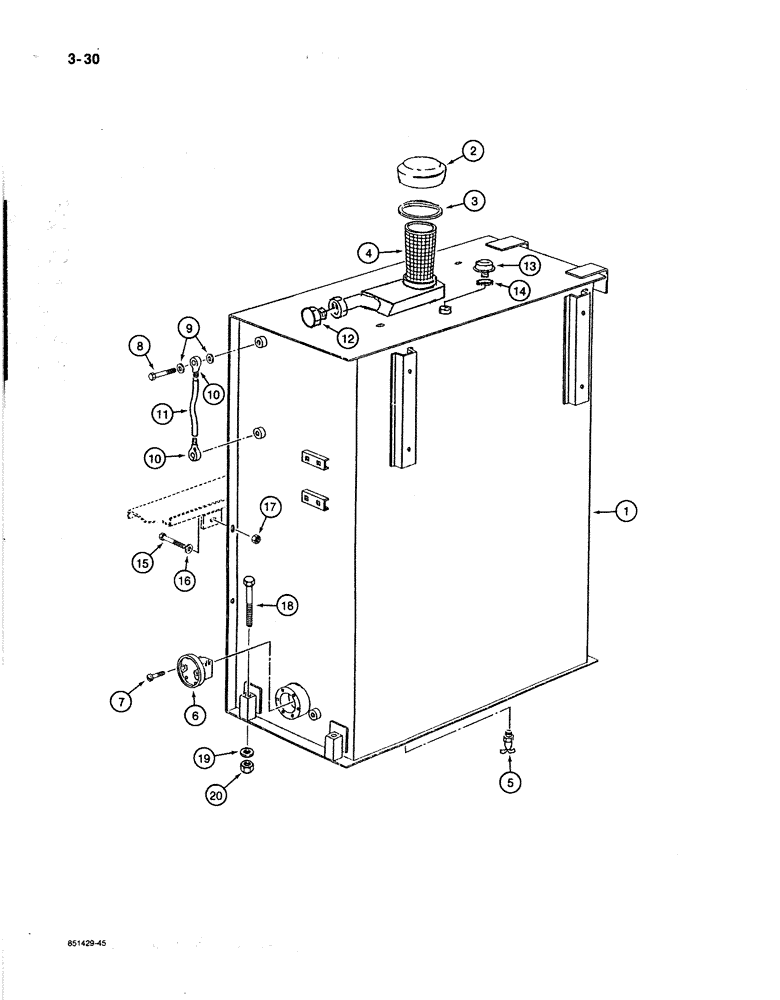

Запчасти Case 170B (3-30) - FUEL TANK, P.I.N. 74341 THROUGH 74456 (03) - FUEL SYSTEM

P1540226

FUEL TANK

TANK ASSEMBLY - fuel, excavator, Includes: Refs. 1-14

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - fuel, excavator

1шт.

P43262

PLUG

CAP ASSEMBLY - fuel tank, Includes: Refs. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - fuel tank

1шт.

3

P46096

WASHER, SEALING

GASKET - fuel cap

1шт.

4

P50537

FILTER BOWL

STRAINER - fuel

1шт.

5

P837827

COCK

VALVE - tank drain

2шт.

6

P2141665

GAUGE

SENDER - low fuel warning light

1шт.

7

P32530

SCREW

- sending unit mounting

6шт.

8

P730090

BANJO BOLT

BOLT - fuel tank connector

2шт.

9

P5346094

SEAL

GASKET - connector bolt

4шт.

10

P1337053

FITTING

CONNECTOR - tank, fuel sight guage

2шт.

11

REF

INSTRUCTION

HOSE - fuel sight gauge, 11-7/8" (300 mm) long, cut from P3682

1шт.

12

P37497

PLUG

- tank side

1шт.

13

P50586

BREATHER

- fuel tank

1шт.

14

P146001

WASHER, SEALING

SEAL - tank breather

2шт.

15

P533850

SCREW

BOLT - tank to turntable, side

2шт.

16

P4528715

WASHER

SPACER - tank bolt

2шт.

17

P134549

SAFETY NUT

NUT - hex, tank bolt

2шт.

18

P33897

SCREW

BOLT - tank to turntable, bottom

4шт.

19

P3528792

WASHER

SPACER - tank bolt

4шт.

20

P134549

SAFETY NUT

NUT - hex, tank bolt

4шт.
