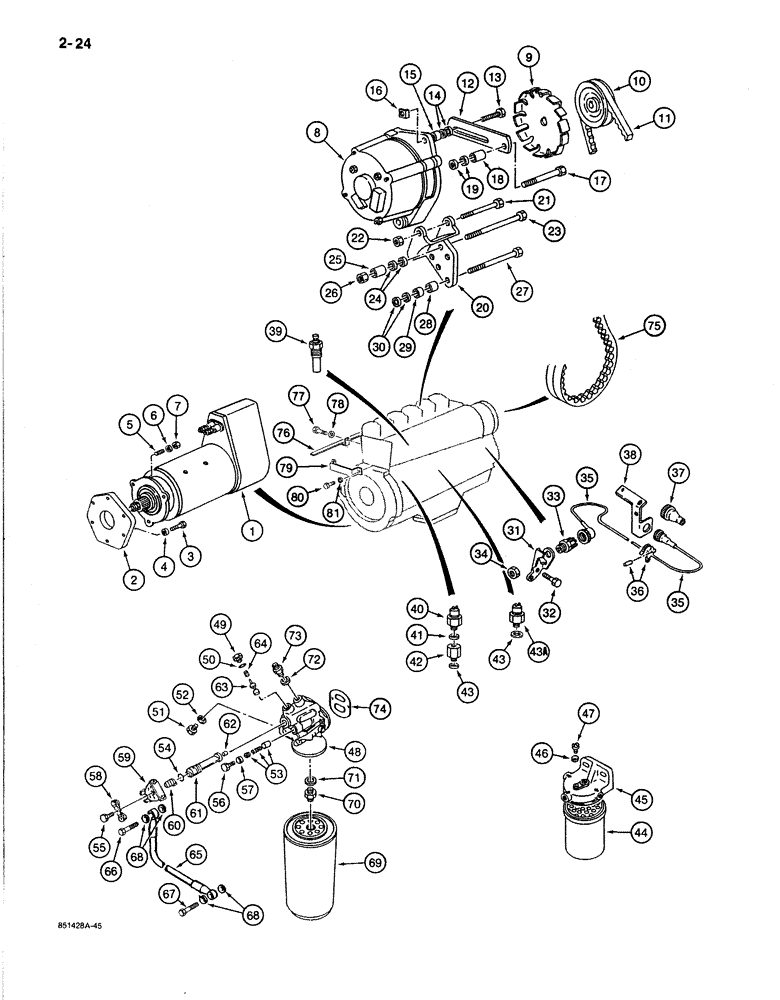

Запчасти Case 170B (2-24) - ENGINE FILTERS, ALTERNATOR AND STARTER, ADAPTING PARTS TO ENGINE, P.I.N. 74341 THRU 74456 (02) - ENGINE

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, see Figures 4-44 through 4-47C for correct starter

1шт.

2

P39537

DEUTZ PART

PLATE -, Serial Range: starter-engine

1шт.

3

P1633851

BOLT

BOLT - plate mounting

3шт.

4

P745315

DEUTZ PART

WASHER - mounting bolts

3шт.

5

P727790

DEUTZ PART

STUD - starter mounting

3шт.

6

P745315

DEUTZ PART

WASHER - studs

3шт.

7

100016

NUT,M10 x 1.5, Cl 8

Studs M10, Cl 8

3шт.

8

P641553

ALTERNATOR

ASSEMBLY - electrical, parts list Figure 4-48

1шт.

9

P943272

DEUTZ PART

FAN - alternator

1шт.

10

P238557

DEUTZ PART

PULLEY - alternator

1шт.

11

P938740

BELT

- alternator drive, 3/8" (10 mm) wide x 45-1/4" (1150 mm) long

1шт.

12

P6022744

DEUTZ PART

STRAP - alternator adjusting

1шт.

13

P33821

SCREW

BOLT -, Serial Range: strap-alternator

1шт.

14

P1045304

DEUTZ PART

WASHER - alternator bolt

1шт.

15

P28568

DEUTZ PART

SPACER -, Serial Range: strap-alternator

1шт.

16

P1634581

DEUTZ PART

NUT - alternator bolt

1шт.

17

P133849

SCREW

BOLT -, Serial Range: strap-engine

1шт.

18

P1945347

DEUTZ PART

SPACER -, Serial Range: strap-engine

1шт.

19

P1045304

DEUTZ PART

WASHER - at engine

1шт.

20

P2928232

DEUTZ PART

BRACKET - alternator mounting

1шт.

21

P133849

SCREW

BOLT -, Serial Range: bracket-alternator

1шт.

22

P34113E

NUT,M8, Cl 8

- alternator bolt

1шт.

23

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

1шт.

24

P745313

DEUTZ PART

WASHER - bracket, upper

1шт.

25

P1128548

DEUTZ PART

SPACER - upper bolt

1шт.

26

100016

NUT,M10 x 1.5, Cl 8

Upper Bolt M10, Cl 8

1шт.

27

P133867

BOLT

- bracket to engine, lower

1шт.

28

P545544

DEUTZ PART

SPACER - lower bolt , inner

1шт.

29

P4528730

DEUTZ PART

SPACER - lower bolt, outer

1шт.

30

P1045304

DEUTZ PART

WASHER - lower bolt, used as spacer

1шт.

31

P2626106

DEUTZ PART

LEVER - warning switch

1шт.

32

P1733822

SCREW

BOLT - lever mounting

2шт.

33

P1041840

DEUTZ PART

SWITCH - warning, belt failure

1шт.

34

P2034580

DEUTZ PART

NUT - switch mounting

1шт.

35

P7847202

DEUTZ PART

WIRE - from warning switch

1шт.

36

P3036908

DEUTZ PART

CLAMP - wire, includes fastener

1шт.

37

P640957

DEUTZ PART

CONNECTOR - electrical, wire from switch

1шт.

38

P4228259

DEUTZ PART

BRACKET - wire

1шт.

39

P641516

IGNITION SWITCH

SENDER - engine temperature warning

1шт.

40

P1241856

SWITCH

SENDER - engine oil pressure, see reference number 19, Figure 4-42

1шт.

41

P28429

COMPOSITE SEAL

WASHER - special sealing

1шт.

42

P637315

RESTRICTOR

ADAPTER -, Serial Range: sender-engine

1шт.

43

P45201

WASHER, SEALING

WASHER - special sealing

2шт.

43a

P1241857

IGNITION SWITCH

SENDER - engine oil pressure for hourmeter, see reference number 20, Figure 4-42

1шт.

44

P150564

CARTRIDGE

FILTER - fuel, spin on type, 1.6 qt (1.5 liter)

1шт.

45

P6546290

DEUTZ PART

HEAD - fuel filter

1шт.

46

P545207

DEUTZ PART

WASHER - copper

1шт.

47

P32548

BOLT

SCREW - filter head

1шт.

P4340356

DEUTZ PART

FILTER HEAD ASSEMBLE - engine oil, Includes: Refs. 48-64

1шт.

48

NSS

NOT SOLD SEPARAT

HEAD - engine oil filter

1шт.

49

P2537435

DEUTZ PART

PLUG - filter head

1шт.

50

P7146072

SEAL

- plug

1шт.

51

P4842754

DEUTZ PART

PLUG - filter head

1шт.

52

P7146072

SEAL

- plug

1шт.

53

P3749646

DEUTZ PART

PACKING SET - filter head

1шт.

54

P1630498

DEUTZ PART

O-RING - filter spool

1шт.

55

P33808

SCREW

BOLT - filter head

1шт.

56

P133857

SCREW

BOLT - filter head

2шт.

57

P545274

WASHER

- bolt

2шт.

58

P4842755

LEVER

- filter head

1шт.

59

P3828243

DEUTZ PART

PLATE - filter head

1шт.

60

P3828244

DEUTZ PART

END - spool

1шт.

61

P1737482

PLUG

SPOOL - filter head

1шт.

62

P4628702

DEUTZ PART

SLEEVE - spool

1шт.

63

P2843234

DEUTZ PART

PISTON - filter head

1шт.

64

P38255

DEUTZ PART

SPRING - piston

1шт.

65

P5931934

LINE

HOSE - filter head, engine oil

1шт.

66

P1030008

BOLT

BOLT - hose, upper

1шт.

67

P1533008

BOLT

- hose, lower

1шт.

68

P146098

WASHER, SEALING

SEAL - bolt

4шт.

69

P850589

FILTER CARTRIDGE

ELEMENT - engine oil filter, spin on type

1шт.

70

P1530586

DEUTZ PART

ADAPTER - element to filter head

1шт.

71

P146097

DEUTZ PART

SEAL - element adapter

1шт.

72

P146097

DEUTZ PART

SEAL - head adapter

1шт.

73

P3237518

DEUTZ PART

ADAPTER - filter head

1шт.

74

P8846012

GASKET

- filter, Serial Range: head-engine

1шт.

75

P938746

SET OF 2 BELTS

BELT - drive, blower, 3/8" (10 mm) wide x 43-3/8" (1100 mm) long, set of 2

1шт.

76

P5628218

SUPPORT

- engine harness, side

1шт.

77

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Side Harness Support Hex, M8 x 25, 8.8

1шт.

78

P3528794

WASHER

SPACER - harness support bolt

2шт.

79

P3126313

SUPPORT

- engine harness, front

1шт.

80

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- Front harness support Hex, M6 - 1 x 16, 8.8

2шт.

81

P3528799

WASHER

SPACER - harness support bolt

2шт.
