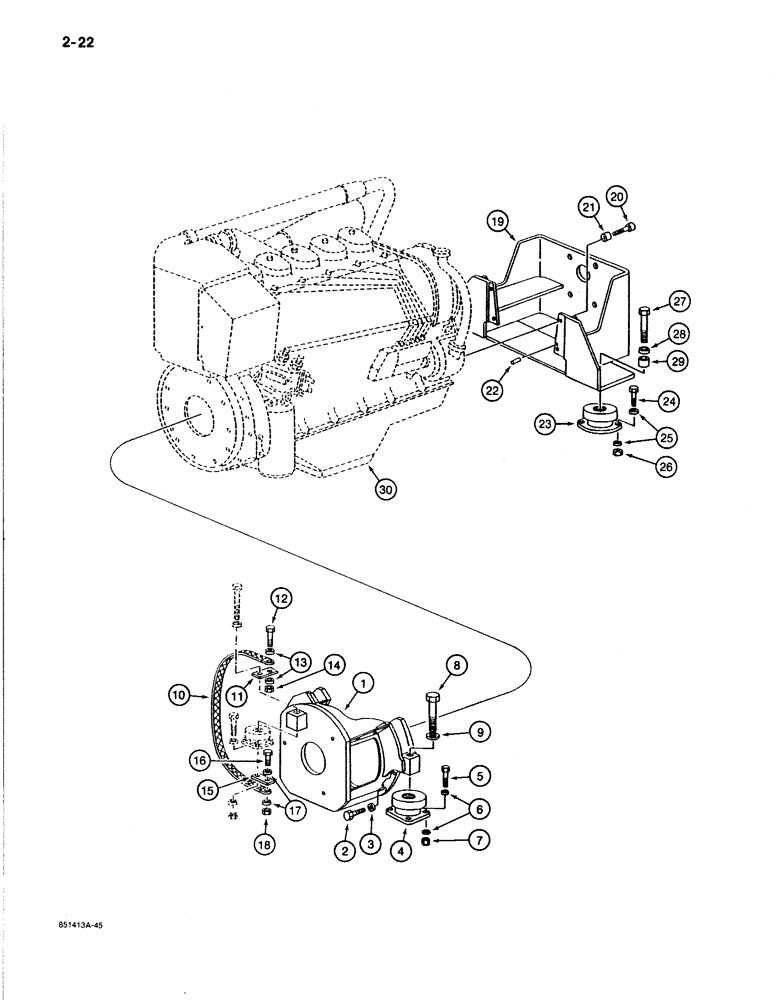

Запчасти Case 170B (2-22) - ENGINE MOUNTING AND ADAPTING PARTS, P.I.N. 74341 THROUGH 74456 (02) - ENGINE

1

P3840310

HOUSING

MOUNT - engine rear and main hydraulic pump

1шт.

2

P933818

SCREW

BOLT - engine to rear mount

8шт.

3

P3528795

WASHER

SPACER - rear mount bolt

8шт.

4

P1241402

SUPPORT

MOUNT - engine, flexible

2шт.

5

P133813

SCREW

BOLT - flexible, Serial Range: mount-turntable

8шт.

6

P4328796

WASHER

SPACER - mounting bolt

16шт.

7

P34598

SAFETY NUT

NUT - hex, mounting bolt

8шт.

8

P32678

SCREW

BOLT - rear engine mount to flexible mount

2шт.

9

P3528793

WASHER

SPACER - mounting bolt

2шт.

10

P1047299

NEG BATTERY CABLE

STRAP - ground, flexible

1шт.

11

P1823113

PLATE

- mounting, upper

1шт.

12

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex head, 12 mm - 1.75 x 45 mm, plated

1шт.

13

P3528793

WASHER

SPACER - upper mounting bolt

2шт.

14

337475

NUT,M12, Cl 10

- , Mounting bolt M12, Cl 10

1шт.

15

P2623143

PLATE

- mounting, lower

1шт.

16

P933818

SCREW

BOLT - lower mounting

1шт.

17

P3528795

WASHER

SPACER - lower mounting bolt

2шт.

18

100016

NUT,M10 x 1.5, Cl 8

Lower Mounting Bolt M10, Cl 8

1шт.

19

P154889

CROSSBAR

MOUNT - engine front and cooler hydraulic pump

1шт.

20

P532927

SCREW

BOLT - engine to front mount

4шт.

21

P4328712

WASHER

SPACER - front mount bolt

4шт.

22

P636058

SPLIT PIN/SAFETY PIN

PIN - dowel, front engine mount

2шт.

23

P741427

SUPPORT

MOUNT - front engine, flexible

2шт.

24

P133813

SCREW

BOLT - flexible, Serial Range: mount-turntable

4шт.

25

P4328796

WASHER

SPACER - mounting bolt

8шт.

26

P34598

SAFETY NUT

NUT - hex, mounting bolt

4шт.

27

P32678

SCREW

BOLT - front engine mount to flexible mount

2шт.

28

P3528793

WASHER

SPACER - mounting bolt, lower

2шт.

29

P1929206

BUSHING

SPACER - mounting bolt, lower

2шт.

30

REF

INSTRUCTION

ENGINE ASSEMBLY - Deutz model no. BF6L 913C, see an authorized Deutz dealer for service parts

1шт.
