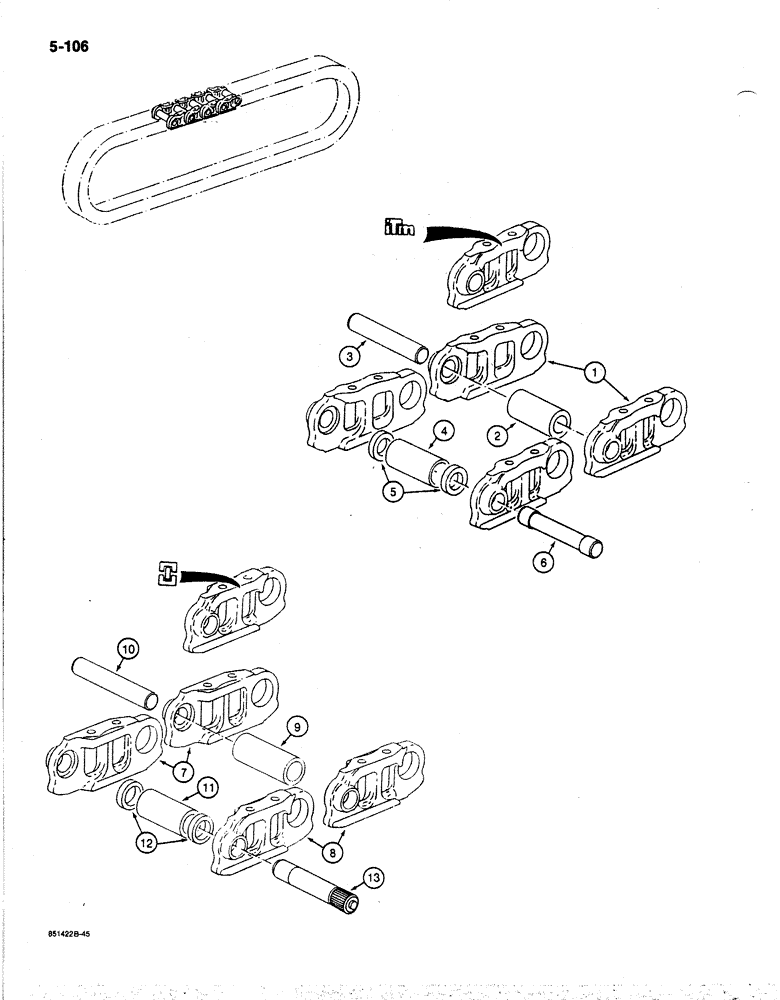

Запчасти Case 170B (5-106) - TRACK CHAIN, LINKS AND PINS, P.I.N. 74341 THROUGH 74456 (11) - TRACKS/STEERING

P1642342

CHAIN (CE)

CHAIN ASSEMBLY - track, 49 link, ITM identification, Includes: Refs. 1-6

2шт.

1

P1642383

LINK

- track, set includes one right-hand and one left-hand link

49шт.

2

P2229361

SPACER

BUSHING - standard pin

48шт.

3

P3227378

PIN

- standard

48шт.

4

P2229360

SPACER

BUSHING - master pin

1шт.

5

P2229359

SPACER

- master pin

2шт.

6

P3227377

PIN

- master

1шт.

P1642342

CHAIN (CE)

CHAIN ASSEMBLY - track, 49 link, INTERTRAC identification, Includes: Refs. 7-13

2шт.

7

P1542360

LINK

- track, right-hand

49шт.

8

P1542353

LINK

- track, left-hand

49шт.

9

P829377

SPACER

BUSHING - standard pin

48шт.

10

P927344

PIN

- standard

48шт.

11

P927344

PIN

BUSHING - master pin

1шт.

12

P1728714

SPACER

- master pin

2шт.

13

P1627826

PIN

- master

1шт.
