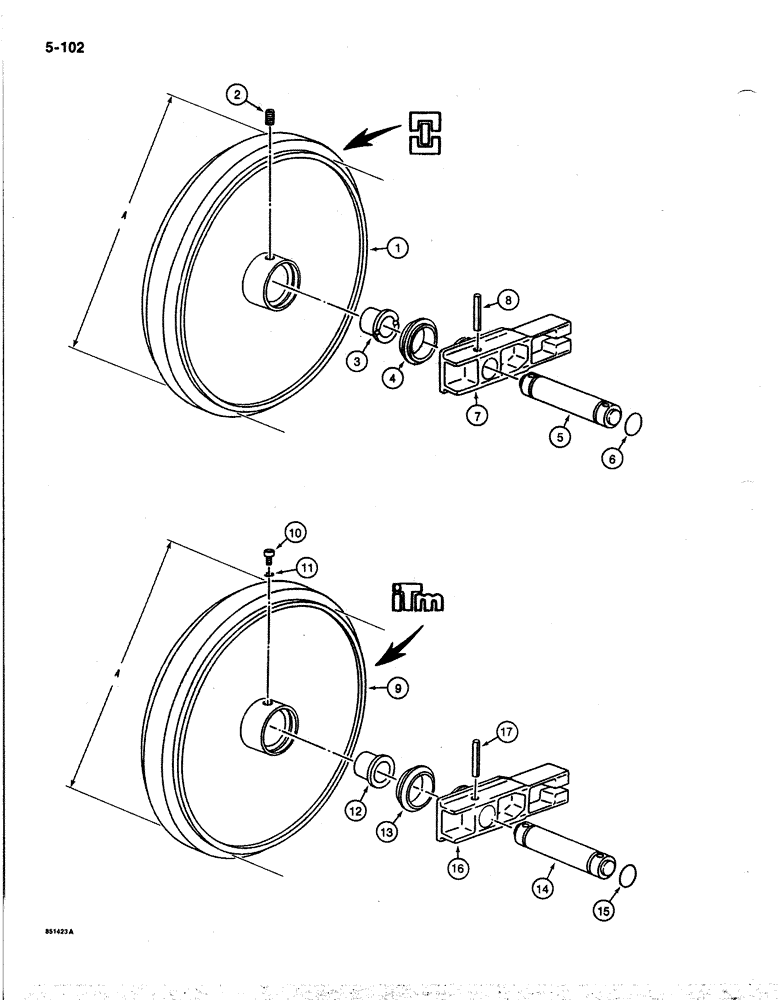

Запчасти Case 170B (5-102) - TRACK IDLER, P.I.N. 74341 THROUGH 74456 (11) - TRACKS/STEERING

P1642334

FLEETING PULLEY

IDLER ASSEMBLY - track, INTERTRAC identification, Includes: Refs. 1-8

2шт.

1

NSS

NOT SOLD SEPARAT

WHEEL - idler

1шт.

2

P2537437

PLUG

- filler, idler wheel

1шт.

3

P4746282

BEARING LINER

BUSHING - idler wheel

2шт.

4

P8046006

SET OF GASKET

SEAL - idler wheel

2шт.

5

P5327878

SHAFT

- idler

1шт.

6

P6146098

SEAL

O-RING - idler shaft

2шт.

7

P5628223

SUPPORT

BRACKET - idler wheel

2шт.

8

P35710

SPLIT PIN/SAFETY PIN

PIN - roll, idler, Serial Range: shaft-bracket

2шт.

P1642334

FLEETING PULLEY

IDLER ASSEMBLY - track, ITM identification, Includes: Refs. 9-17

2шт.

9

NSS

NOT SOLD SEPARAT

WHEEL - idler

1шт.

10

P737448

PLUG

- filler, idler wheel

1шт.

11

P2230408

O-RING

- filler plug

1шт.

12

P1528682

BRONZE BUSHING

BUSHING - idler wheel

2шт.

13

P7546097

SET OF GASKET

SEAL - idler wheel

2шт.

14

P5327877

SHAFT

- idler

1шт.

15

P1230438

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- idler shaft

2шт.

16

P5628222

SUPPORT

BRACKET - idler wheel

2шт.

17

P35801

SPLIT PIN/SAFETY PIN

PIN - roll, idler, Serial Range: shaft-bracket

2шт.
