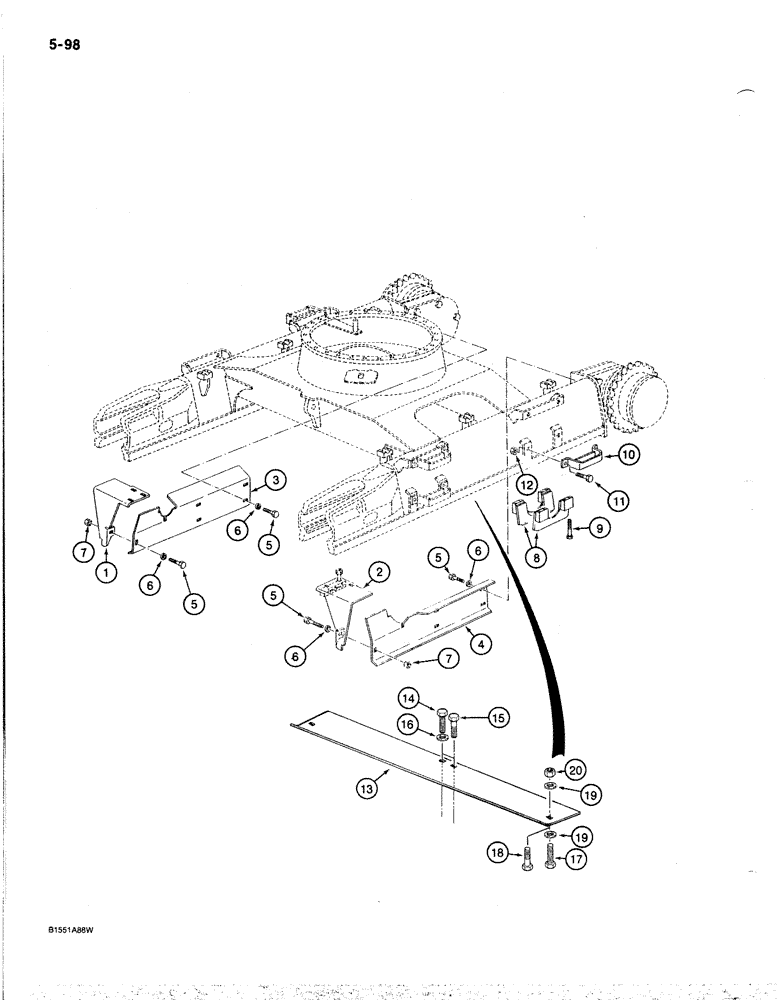

Запчасти Case 170B (5-098) - TRACK FRAME AND TUBING GUARDS, P.I.N. 74341 THROUGH 74456 (11) - TRACKS/STEERING

1

P4625681

HOUSING

GUARD - tubing, front, right-hand

1шт.

2

P4625682

HOUSING

GUARD - tubing, front, left-hand

1шт.

3

P2726393

HOUSING

GUARD - tubing, side, right-hand

1шт.

4

P2726394

HOUSING

GUARD - tubing, side, left-hand

1шт.

5

P33873

SCREW

BOLT - tubing guard

10шт.

6

P3528793

WASHER

SPACER - tubing guard bolt

10шт.

7

P1334578

NUT

- hex, tubing guard bolt

2шт.

8

P2346167

GUIDE

GUARD - track, at track frame

8шт.

9

P833815

SCREW

BOLT - guard to track frame

32шт.

10

P1304073

STEP

- track frame, lower

4шт.

11

P133805

SCREW

BOLT - step to track frame

8шт.

12

P34562

SAFETY NUT

NUT - hex, step bolt

8шт.

13

P4825669

HOOD

GUARD - hydraulic swivel

1шт.

14

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 35 mm, full threaded, if used

2шт.

15

P33873

SCREW

BOLT - hex head, 12 mm x 25 mm, if used

2шт.

16

P3528793

WASHER

SPACER - bolt, 8 mm thick, used with 35 mm long bolt, Ref. 14

2шт.

17

P933819

SCREW

BOLT - hex head, 12 mm x 55 mm, full threaded, if used

2шт.

18

P533837

SCREW

BOLT - hex head, 12 mm x 40 mm, if used

2шт.

19

P3528793

WASHER

SPACER - bolt, 8 mm thick, used with 55 mm long bolt, Ref. 17

4шт.

20

P834549

SAFETY NUT

NUt - hex, self-locking, 12 mm

2шт.
