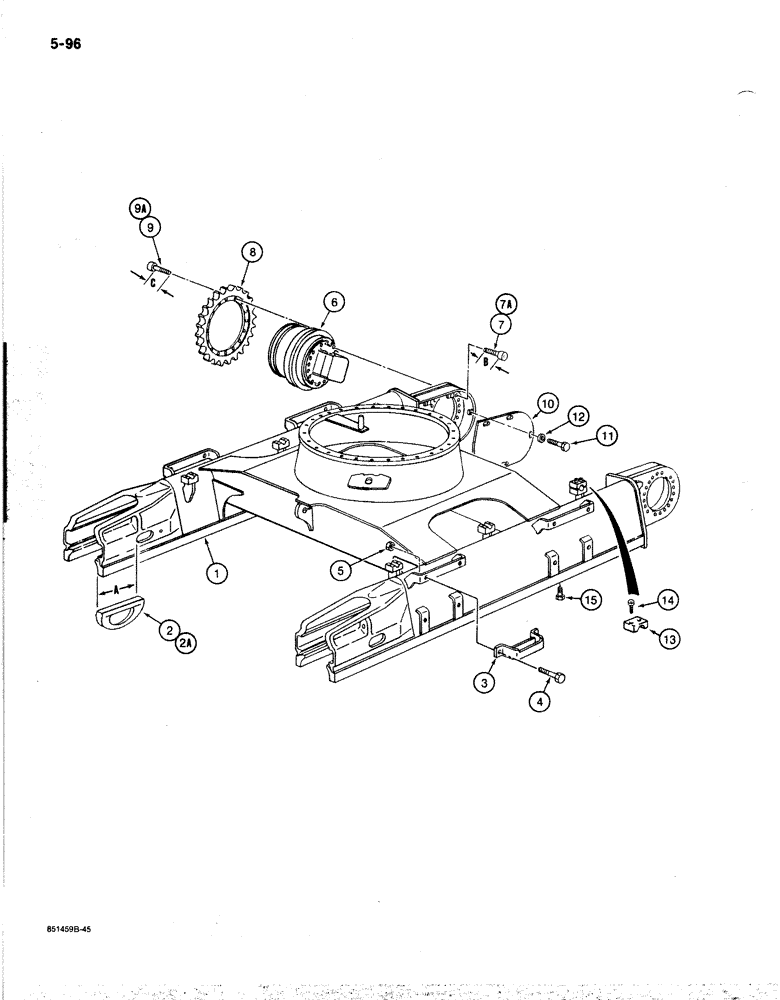

Запчасти Case 170B (5-096) - TRACK FRAME AND UNDERCARRIAGE, P.I.N. 74341 THROUGH 74456 (11) - TRACKS/STEERING

1

P1254828

FRAME

TRACK FRAME ASSEMBLY - excavator, Includes: Refs. 2, 2A

1шт.

2

P1304048

WEB

GUIDE - track chain, welded to track frame,"A" dimension is 520 mm, if used

4шт.

2a

P1304050

WEB

GUIDE - track chain, welded to track frame,"A" dimension is 430 mm, if used

4шт.

3

P1304073

STEP

- track frame, upper

4шт.

4

P133805

SCREW

BOLT - step to track frame

8шт.

5

P34562

SAFETY NUT

NUT - hex, step bolt

8шт.

6

REF

INSTRUCTION

TRANSMISSION AND MOTOR ASSEMBLY - motor and final drive, excavator, see Figures 6-110 - 6-116

2шт.

7

P732986

SCREW

BOLT - mounting, final drive transmission to track frame, "B" dimension is 75 mm, P.I.N. 74341 - 74386

36шт.

7a

P632965

SCREW

BOLT - mounting, final drive transmission to track frame, "B" dimension is 85 mm, P.I.N. 74387 - 74456

36шт.

8

P1842307

WHEEL GEAR

SPROCKET - drive

2шт.

9

P532922

SCREW

BOLT - drive sprocket to transmissionk,"C" dimension is 80 mm, P.I.N. 74341 - 74374

32шт.

9a

P632965

SCREW

BOLT - drive sprocket to transmission,"C" dimension is 85 mm, P.I.N. 74375 - 74456

32шт.

10

P4224125

HOOD

GUARD - drive motor

2шт.

11

P533837

SCREW

BOLT - guard to track frame

10шт.

12

P3528793

WASHER

SPACER - motor guard bolt

10шт.

13

P4620371

CAP

BRACKET - mounting, track carrier roller

6шт.

14

P732946

SCREW

BOLT - roller bracket to track frame

12шт.

15

P32725

SCREW

BOLT - track frame, used when track guards are not installed

32шт.
