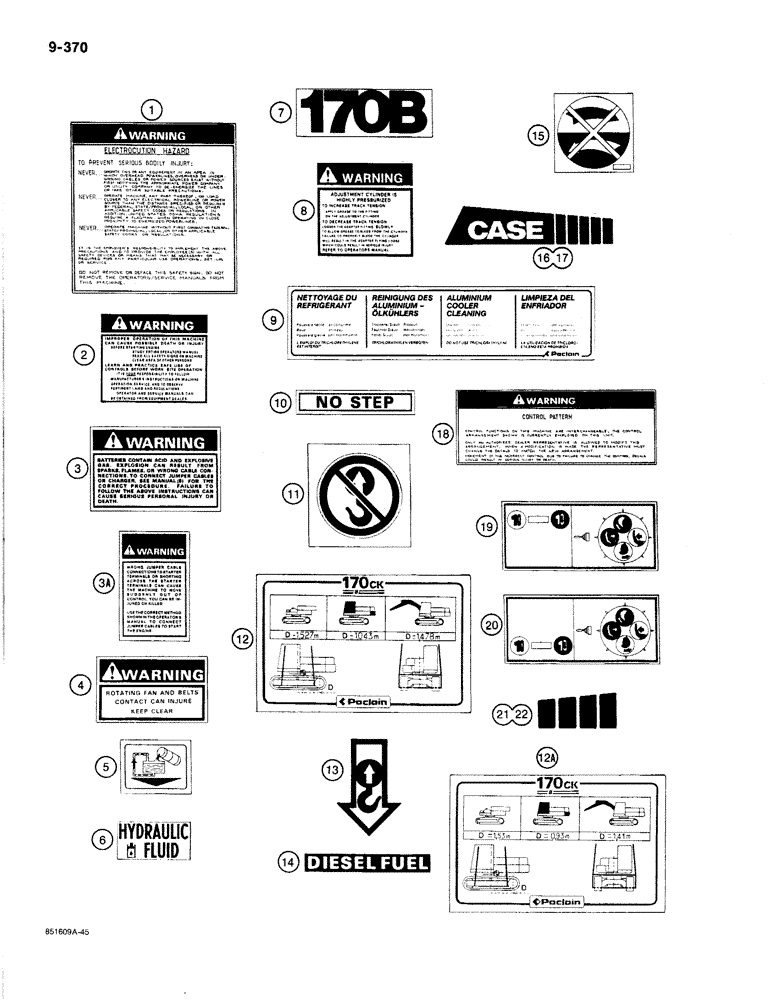

Запчасти Case 170B (9-370) - DECALS, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

1

P6147566

DECAL

- Warning, Electrocution Hazard

1шт.

2

P6147565

DECAL

- Warning, Improper Operation

1шт.

3

P251593

DECAL

- Warning, Batteries contain Acid and Explosive Gas

1шт.

3a

P251592

DECAL

- Warning, Wrong Jumper Cable Connections

1шт.

4

P251594

DECAL

- Warning, Rotating Fan And Belts

2шт.

5

P7947530

DECAL

- hydraulic system

1шт.

6

P251591

DECAL

- Hydraulic Fluid, fill location

1шт.

7

P251588

ADHESIVE

DECAL - 170B, model designation

2шт.

8

P251597

DECAL

- Wa;rning, Adjustment Cylinder Is Highly Pressurized

2шт.

9

P7947533

DECAL

- Aluminum Cooler Cleaning

1шт.

10

P251596

DECAL

- No Step

2шт.

11

P351599

DECAL

- improper lift location

6шт.

12

P7947523

ADHESIVE

DECAL - proper lift procedure, used with 4800 kg rear counterweight, P.I.N. 74341 - 74416

1шт.

12a

P351596

DECAL

- proper lift procedure, used with 6300 kg rear counterweight, P.I.N. 74417 - 74456

1шт.

13

P7947565

DECAL

- proper lift location

4шт.

14

P251595

DECAL

- Diesel Fuel

1шт.

15

P2247581

DECAL

- house lock location

1шт.

16

P251580

DECAL

- Case, with treads, right-hand side of boom

1шт.

17

P251580

DECAL

- Case, with treads, left-hand side of boom

1шт.

18

P6147567

DECAL

- Warning, Control Pattern

1шт.

19

S242817

DECAL

- control pattern A, right-hand side, optional

1шт.

19

S242830

DECAL

- control pattern C, right-hand side, optional

1шт.

19

P7947567

DECAL

- control pattern D, right-hand side, standard

1шт.

20

S242818

DECAL

- control pattern A, left-hand side, optional

1шт.

20

S242829

DECAL

- control pattern C, left-hand side, optional

1шт.

20

P7947568

DECAL

- control pattern D, left-hand side, standard

1шт.

21

P251585

ADHESIVE

DECAL - treads, right-hand side of boom

1шт.

22

P251586

ADHESIVE

DECAL - treads, left-hand side of boom

1шт.
