(9-366) - OPTIONAL CAB ANTI-VANDALISM GUARDS, GUARD MOUNTING PARTS

Запчасти Case 170B (9-366) - OPTIONAL CAB ANTI-VANDALISM GUARDS, GUARD MOUNTING PARTS (09) - CHASSIS

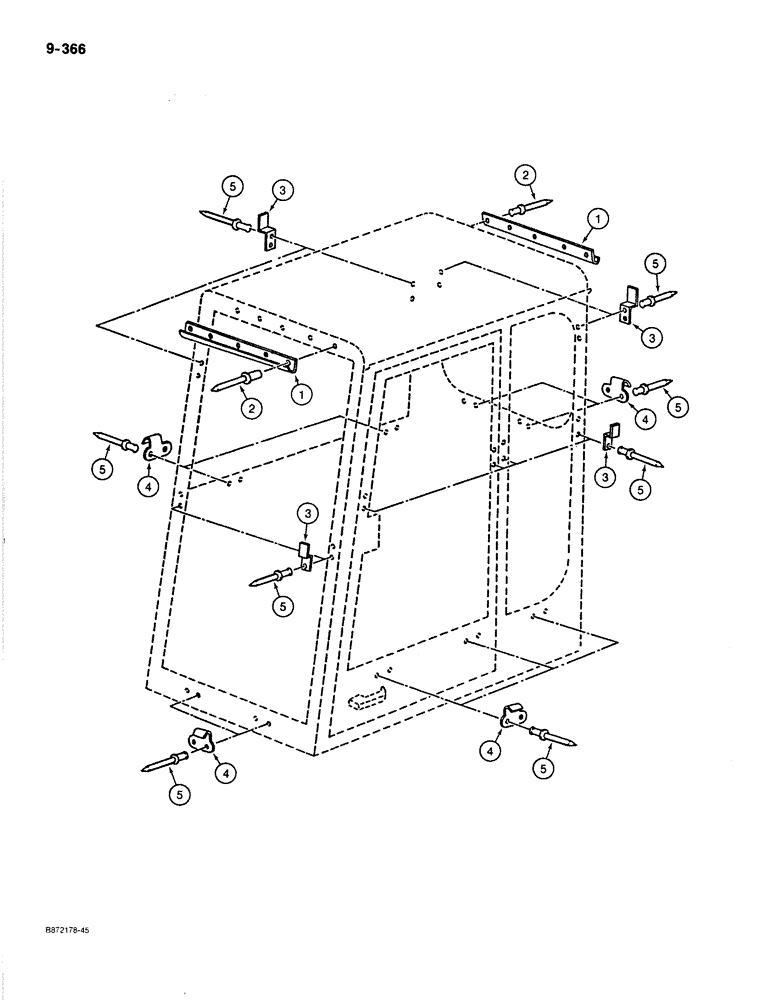

Схема запчастей Case 170B - (9-366) - OPTIONAL CAB ANTI-VANDALISM GUARDS, GUARD MOUNTING PARTS (09) - CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P3226119

SWIVEL HOOK

BRACKET - upper mounting, windshield and rear window guards

2шт.

2

P35418

RIVET

- pop, 8 mm x 17 mm

10шт.

3

P3226120

SWIVEL HOOK

BRACKET - side mounting, cab window guards

10шт.

4

P3036976

HOOK

BRACKET - lower latch, cab window guards

9шт.

5

P35413

RIVET

- pop, 8 mm x 16.5 mm

38шт.
