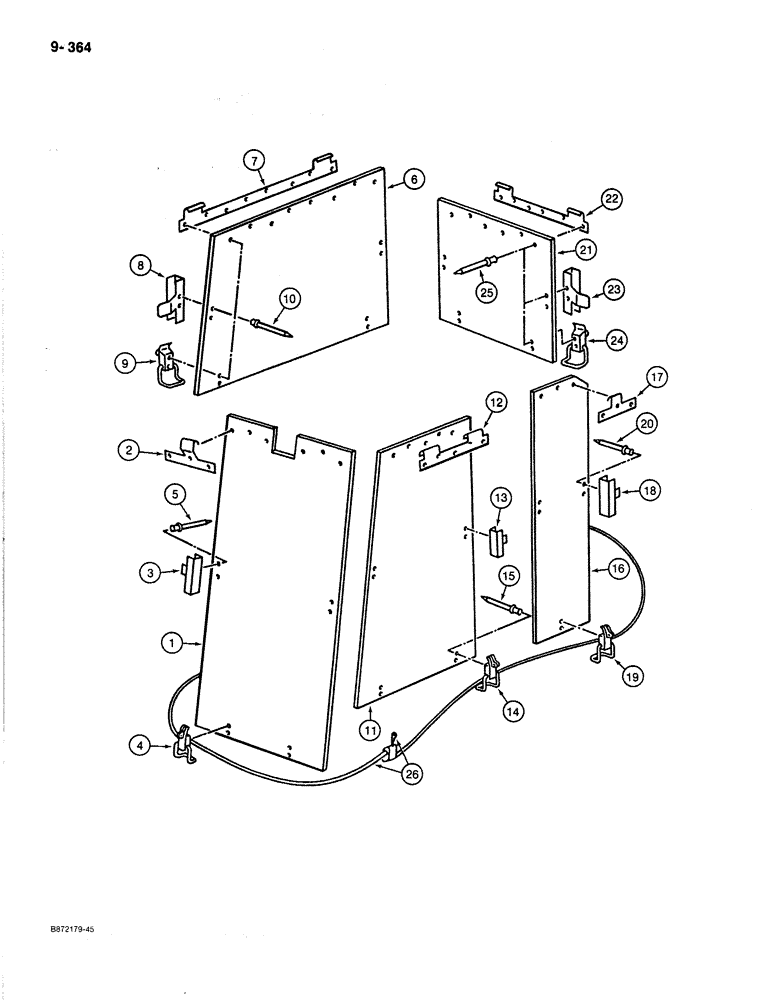

Запчасти Case 170B (9-364) - OPTIONAL CAB ANTI-VANDALISM GUARDS, GUARDS AND LOCKING PARTS (09) - CHASSIS

P2047018

PROTECTOR

GUARD ASSEMBLY - cab windshield, Includes: Refs. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

GUARD - windshield

1шт.

2

P3326313

SWIVEL HOOK

BRACKET - top

2шт.

3

P2425963

HANDLE

BRACKET - side

2шт.

4

P3036975

CLAMP

LATCH - guard, lower

2шт.

5

P35418

RIVET

- pop, 8 mm x 17 mm

14шт.

P2047016

PROTECTOR

GUARD ASSEMBLY - cab right-hand side window, Includes: Refs. 6-10

1шт.

6

NSS

NOT SOLD SEPARAT

GUARD - right-hand side window

1шт.

7

P3226116

SWIVEL HOOK

BRACKET - top

1шт.

8

P3326314

HANDLE

BRACKET - side

2шт.

9

P3036975

CLAMP

LATCH - guard, lower

2шт.

10

P35418

RIVET

- pop, 8 mm x 17 mm

16шт.

P2047019

PROTECTOR

GUARD ASSEMBLY - cab door window, Includes: Refs. 11-15

1шт.

11

NSS

NOT SOLD SEPARAT

GUARD - door window

1шт.

12

P3226115

SWIVEL HOOK

BRACKET - top

1шт.

13

P2425963

HANDLE

BRACKET - side

2шт.

14

P3036975

CLAMP

LATCH - guard, lower

2шт.

15

P35418

RIVET

- pop, 8 mm x 17 mm

13шт.

P2047017

PROTECTOR

GUARD ASSEMBLY - cab lift-hand side window, rear, Includes: Refs. 16-20

1шт.

16

NSS

NOT SOLD SEPARAT

GUARD - left-hand side window, rear

1шт.

17

P3226118

SWIVEL HOOK

BRACKET - top

1шт.

18

P3326314

HANDLE

BRACKET - side

2шт.

19

P3036975

CLAMP

LATCH - guard, lower

1шт.

20

P35418

RIVET

- pop, 8 mm x 17 mm

9шт.

P2047015

PROTECTOR

GUARD ASSEMBLY - cab rear window, Includes: Refs. 21-25

1шт.

21

NSS

NOT SOLD SEPARAT

GUARD - rear window

1шт.

22

P3226117

SWIVEL HOOK

BRACKET - top

1шт.

23

P3326314

HANDLE

BRACKET - side

2шт.

24

P3036975

CLAMP

LATCH - guard, lower

2шт.

25

P35418

RIVET

- pop, 8 mm x 17 mm

14шт.

26

P1352022

PADLOCK

CABLE ASSEMBLY - cab window guards, includes lock

1шт.

P1054922

KIT

vandal guard

1шт.
