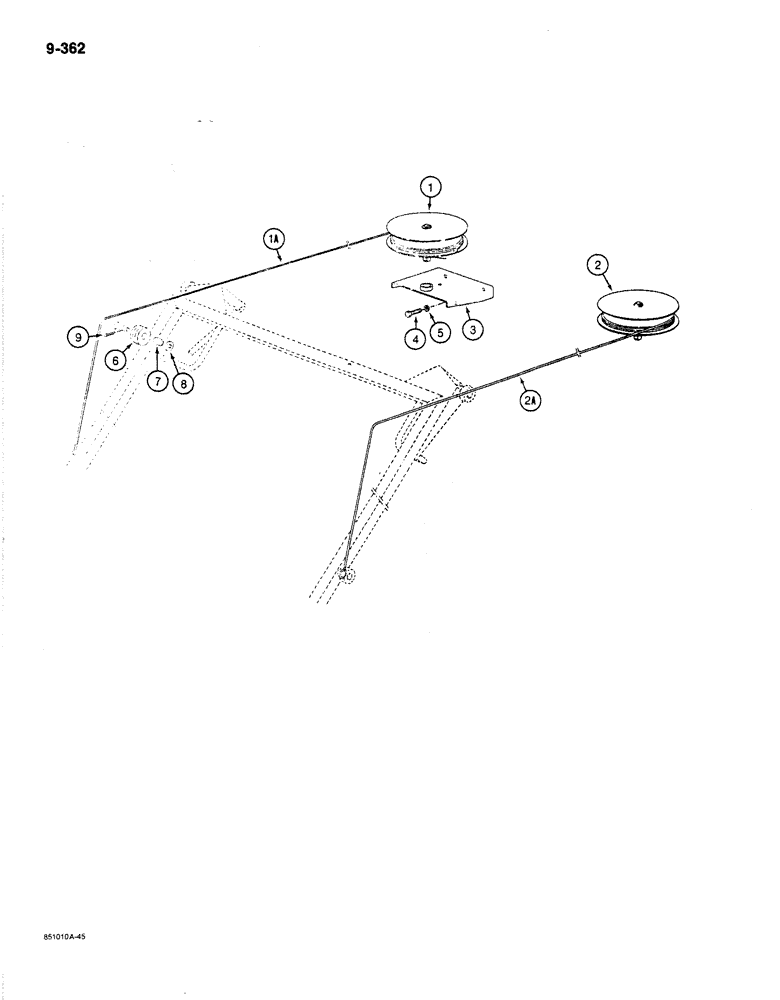

Запчасти Case 170B (9-362) - WINDSHIELD OPENING PARTS, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

P7543827

CAB

ASSEMBLY - excavator, parts list Figures 9-352 - 9-362, Includes: Refs. 1-9

1шт.

P5242727

CABLE WINDER

SPOOL ASSEMBLY - windshield opening, right-hand, Includes: Refs. 1, 1A

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL - cable

1шт.

1a

P9847252

CABLE

- windshield opening

1шт.

P5242728

CABLE WINDER

SPOOL ASSEMBLY - windshield opening, Includes: Refs. 2, 2A

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - cable

1шт.

2a

P9847252

CABLE

- windshield opening

1шт.

3

P4127158

SUPPORT

BRACKET - mounting, cable and spool

2шт.

4

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

mounting bracket Hex, M8 x 30, 8.8

4шт.

5

P3528794

WASHER

SPACER - 6 mm thick, bracket bolt

4шт.

6

P538589

PULLEY

- windshield cable

2шт.

7

P29299

SELF LUB RING

BUSHING - cable pulley

2шт.

8

P34611

WASHER

- flat, 10 mm, cable pulley

2шт.

9

P35512

SPLIT PIN

PIN - cotter, cable pulley, 2 mm x 30 mm

2шт.
