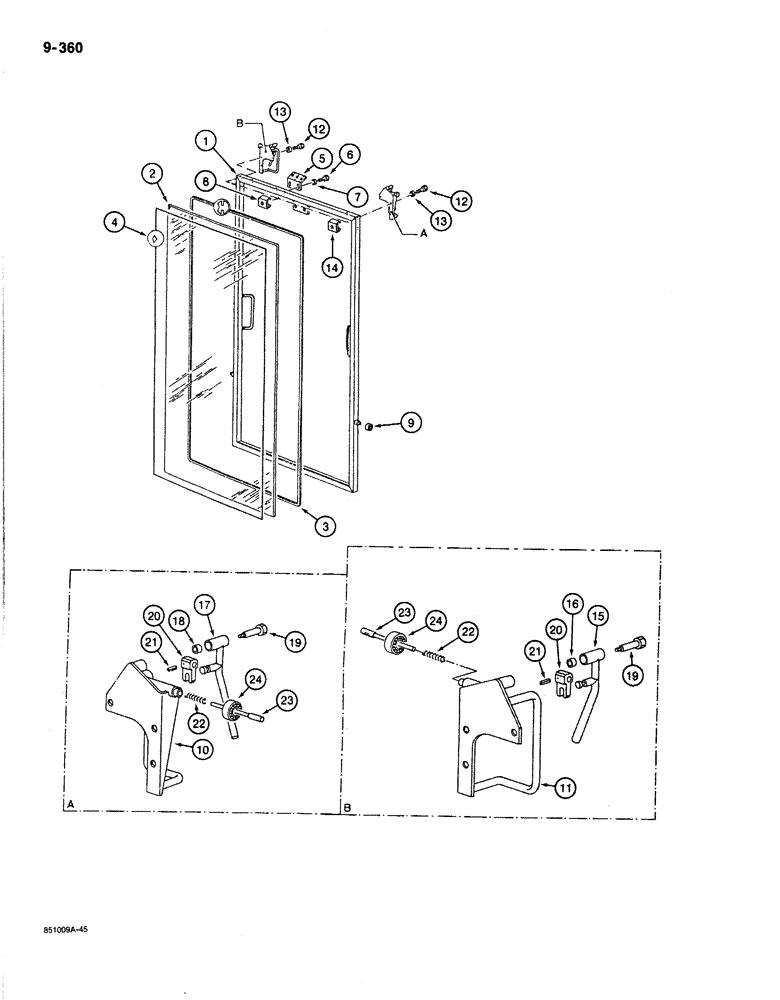

Запчасти Case 170B (9-360) - CAB WINDSHIELD, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

P7543827

CAB

ASSEMBLY - excavator, parts list Figures 9-352 - 9-362

1шт.

P1347086

WINDSHIELD

ASSEMBLY - cab, Includes: Refs. 1-24

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - windshield

1шт.

2

P1347088

GLASS

- windshield

1шт.

3

P8046008

SEAL

RETAINER -, Serial Range: glass-frame

1шт.

4

REF

INSTRUCTION

SEAL - 181"(4600 mm) long, windshield glass, cut from P346008

1шт.

5

P2826130

SUPPORT

BRACKET - wiper terminal switch, see Figure 4-62 for switches and wiring

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Bracket to frame

2шт.

7

P745438

WASHER

- flat

2шт.

8

P234587

NUT

RETAINER - bolt, clip type

2шт.

9

P139633

BEARING

- ball, windshield track, at frame

2шт.

10

P852079

CYLINDER END CAP

BRACKET - windshield release, left-hand

1шт.

11

P852078

SUPPORT

BRACKET - windshield release, right-hand

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Bracket to frame

6шт.

13

P745438

WASHER

-, Serial Range: flat-frame

6шт.

14

P234587

NUT

RETAINER - bolt, clip type

6шт.

P4842701

LEVER

HANDLE ASSEMBLY - windshield release, right-hand, Includes: Refs. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

HANDLE - windshield release, right-hand

1шт.

16

P29299

SELF LUB RING

BUSHING - release handle

2шт.

P4042799

LEVER

HANDLE ASSEMBLY - windshield release, left-hand, Includes: Refs. 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

HANDLE - windshield release, left-hand

1шт.

18

P29299

SELF LUB RING

BUSHING - release handle

2шт.

19

P1827967

PIN

BOLT - shoulder, Serial Range: handle-bracket

2шт.

20

P7646275

CLEVIS

LEVER - lock plunger

2шт.

21

P35720

SPLIT PIN/SAFETY PIN

PIN - roll, Serial Range: lever-plunger

2шт.

22

P738143

COMPRESSION SPRING

SPRING - plunger return

2шт.

23

P5327897

PLUNGER

- windshield release

2шт.

24

P139633

BEARING

- ball, windshield track, at release bracket

2шт.
