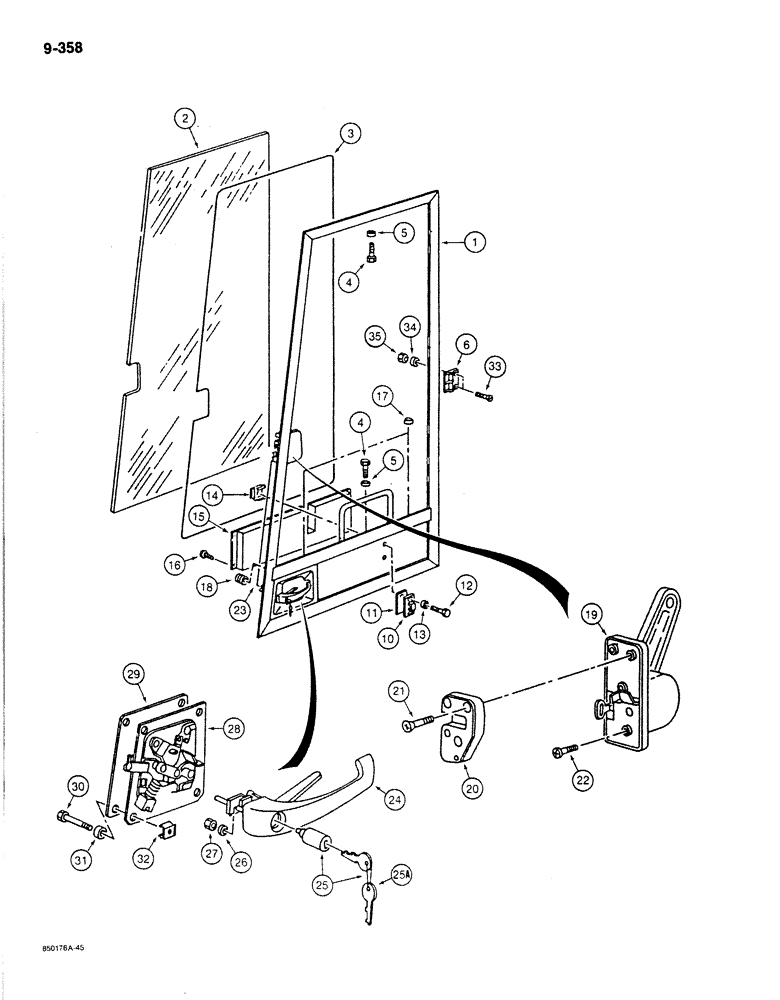

Запчасти Case 170B (9-358) - CAB DOOR, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

P7543827

CAB

ASSEMBLY - excavator, parts list Figures 9-352 - 9-362, Includes: Refs. 1-35

1шт.

P7543829

DOOR

ASSEMBLY - cab, Includes: Refs. 1-32

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab door

1шт.

2

P1347056

GLASS

- cab door

1шт.

3

P203104

PACKAGE, REPAIR

SEAL - glass

1шт.

4

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 25 mm, plated

2шт.

5

P4328728

WASHER

SPACER - bolt

2шт.

6

P736667

HINGE

-, Serial Range: door-cab

3шт.

10

P4027132

CATCH PLATE

STRIKER - door open latch

1шт.

11

P2822847

PLATE

SPACER - latch striker

1шт.

12

P1133803

SCREW

BOLT - latch striker

2шт.

13

P3528799

WASHER

SPACER - bolt

2шт.

14

P1634573

NUT

- clip type, latch bolt

2шт.

15

P2741422

LARGE PLATE

INSULATION - lower door

1шт.

16

P2036971

BUTTON

RETAINER - insulation

6шт.

17

P741441

SPACER

PLUG - door frame

2шт.

18

P1037442

BLANK-OFF PLUG

STOP - door

1шт.

19

P852067

MECHANISM

LATCH - door, inside

1шт.

20

P852053

CATCH PLATE

PLATE - striker

1шт.

21

P32411

SCREW,Cross, M8 x 45, 10.9

Striker plate Cross, M8 x 45, 10.9

3шт.

22

P32570

SCREW

- door latch

1шт.

23

P2130617

THREADED ROD

ROD - inside latch to outside handle

1шт.

P852050

HANDLE

ASSEMBLY - cab, outside, Includes: Refs. 24, 25, and 25A

1шт.

24

NSS

NOT SOLD SEPARAT

HANDLE - cab, outside

1шт.

25

P852070

LOCK, CYLINDER

CYLINDER AND KEYS - door lock, Includes: Ref. 25A

1шт.

25a

P1352008

SET OF 2 KEYS

KEY - door lock, set of two

1шт.

26

P35001

WASHER

- lock

2шт.

27

P234513

SAFETY NUT

NUT - hex

2шт.

28

P852055

MECHANISM

PLATE ASSEMBLY - door lock

1шт.

29

P1325374

DOOR COVER

PLATE - lock cover

1шт.

30

P1133803

SCREW

BOLT - lock, Serial Range: plate-door

4шт.

31

P3528799

WASHER

SPACER - bolt

4шт.

32

P1634573

NUT

- clip type, plate bolt

4шт.

33

P32415

SCREW

BOLT - door hinge, not included with cab door assembly, order separately

6шт.

34

P34611

WASHER

- lock, not included with cab door assembly, order separately

6шт.

35

P34598

SAFETY NUT

NUT - hex, not included with cab door assembly, order separately

6шт.
