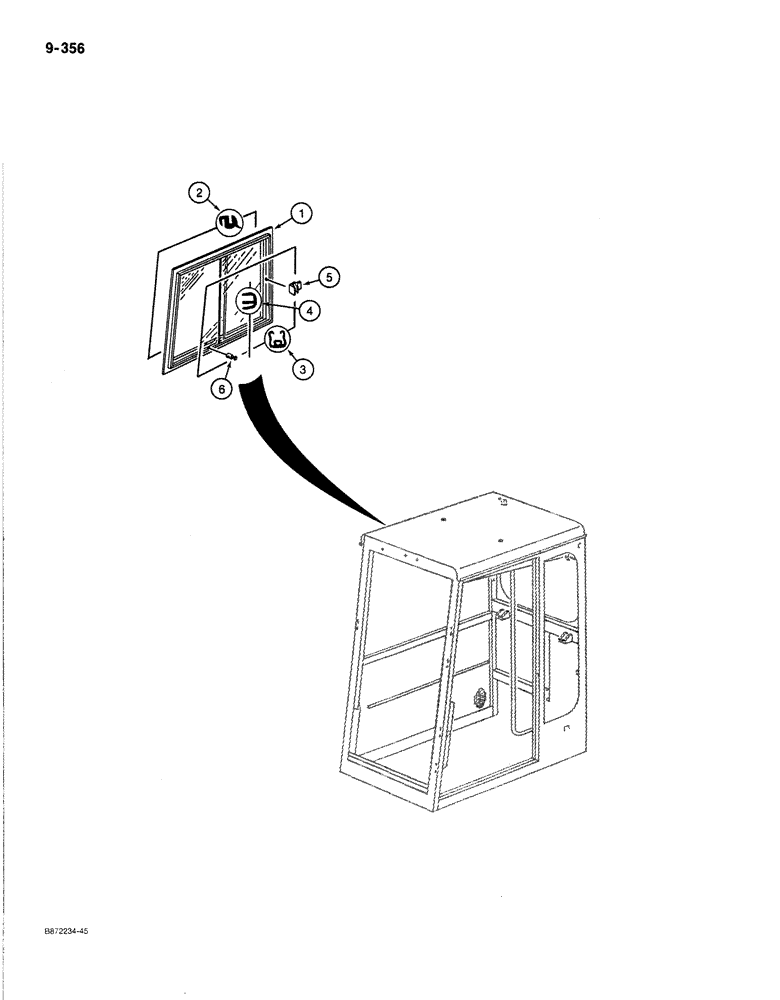

Запчасти Case 170B (9-356) - CAB, OPTIONAL SLIDING WINDOW (09) - CHASSIS

P7543827

CAB

ASSEMBLY - excavator, parts list Figures 9-352 - 9-362, Includes: P2047008 WINDOW ASSEMBLY and Refs. 1-6

1шт.

P2047008

WINDOW

ASSEMBLY - sliding, right-hand cab side, Includes: Refs. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

WINDOW - sliding, cab

1шт.

2

REF

INSTRUCTION

SEAL - 165-3/8" (4200 mm) long, window to cab frame, cut from P1303186

1шт.

3

REF

INSTRUCTION

SEAL - 165-3/8" (4200 mm) long, window to cab frame, cut from P1303188

1шт.

4

REF

INSTRUCTION

SEAL - 32-1/4" (820 mm) long, between sliding glass, cut from P1303187

1шт.

5

P1352031

LATCH ASSY.

HANDLE - glass pull

1шт.

6

P8346202

STOP

LATCH - sliding glass

1шт.
