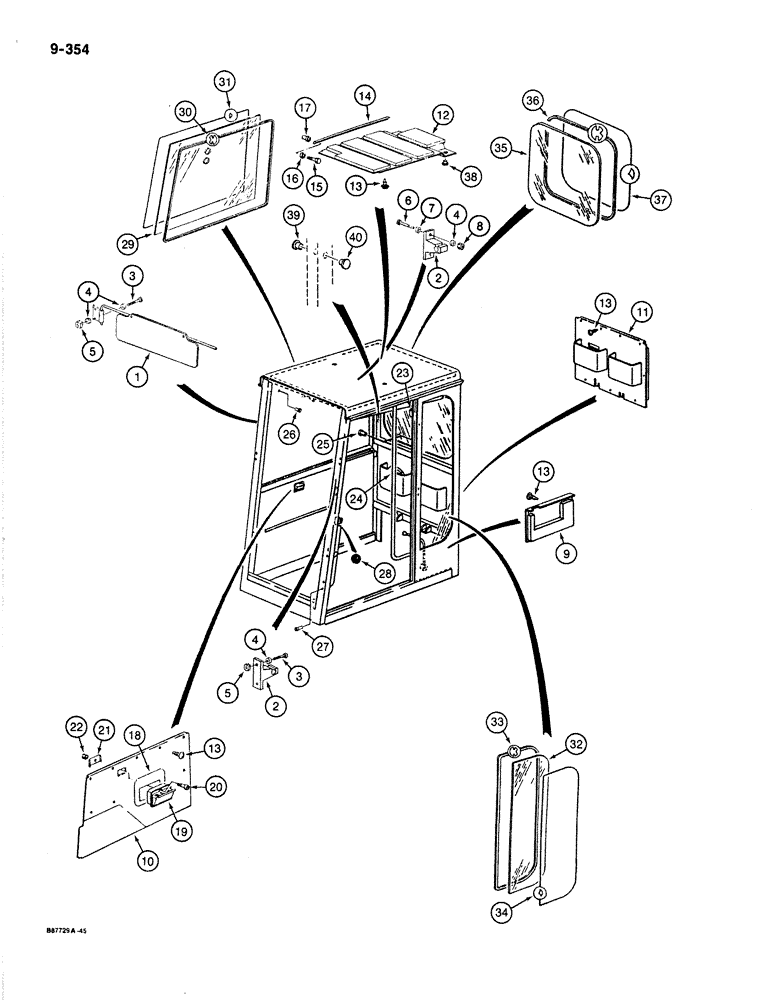

Запчасти Case 170B (9-354) - CAB, CAB GLASS AND INSULATION, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

P7543827

CAB

ASSEMBLY - excavator, parts list Figures 9-352 - 9-362, Includes: Refs. 1-40

1шт.

1

P2843294

VISOR, SUN

VISOR ASSEMBLY - operator

1шт.

2

P3036940

HOOK

LATCH - visor

2шт.

3

P32531

SCREW

- latch and, Serial Range: visor-cab

4шт.

4

P4328717

WASHER

SPACER - latch and visor screw

8шт.

5

P234586

NUT

- clip type, latch and visor screw

4шт.

6

P2033030

SCREW

- side, Serial Range: latch-cab

2шт.

7

P1245226

WASHER

SPACER - side latch screw

2шт.

8

P34107X

NUT,M4, Cl 8

- side latch screw

2шт.

9

P2741424

LARGE PLATE

INSULATION - cab, at latch handle

1шт.

10

P3441444

LARGE PLATE

INSULATION - cab, right-hand side

1шт.

11

P2741423

LARGE PLATE

INSULATION - cab, rear

1шт.

12

P3441496

LARGE PLATE

INSULATION - cab, top

1шт.

13

P2036971

BUTTON

RETAINER - insulation

33шт.

14

P1831643

ANGLE BAR

STRIP - retainer, cab insulation

2шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

Retainer strip Hex, M6 x 20, 8.8

6шт.

16

P3528799

WASHER

SPACER - retainer bolt

6шт.

17

P834513

NUT

RETAINER -, Serial Range: strip-cab

6шт.

18

P4423439

LARGE PLATE

PLATE - support, ash tray

1шт.

19

P2343284

ASH TRAY

TRAY - ash, cab

1шт.

20

P32506

SCREW

BOLT - ash tray mounting bolt

1шт.

21

P6022751

SUPPORT

PLATE - retainer

1шт.

22

86508812

NUT,M3, Cl 8

Ash Tray Mounting Bolt M3, Cl 8

1шт.

23

REF

INSTRUCTION

LAMP ASSEMBLY - cab, see Figure 4-62, Refs. 33 - 38

1шт.

24

REF

INSTRUCTION

WASHER - cab windshield, see Figure 4-64 for correct reservoir and pump assembly

1шт.

25

P35444

RIVET

SLEEVE - bolt, cab interior lamp mounting

2шт.

26

P234587

NUT

SLEEVE - bolt

4шт.

27

P834513

NUT

RETAINER - used as plug in this application

24шт.

28

P29906

BALL KNOB

KNOB - handle

1шт.

29

P1347095

GLASS

- window, cab side, right-hand, see Figure 9-356 for sliding window assembly, if used

1шт.

30

P7146016

SEAL

RETAINER - rubber, Serial Range: window-cab

1шт.

31

REF

INSTRUCTION

SEAL - 166" (4216 mm) long, window glass, cut from P346008

1шт.

32

P1347048

GLASS

- windwo, cab side, left-hand

1шт.

33

P7146074

SEAL

RETAINER - rubber, Serial Range: window-cab

1шт.

34

REF

INSTRUCTION

SEAL - 122" (3099 mm) long, window glass, cut from P346008

1шт.

35

P1347091

GLASS

- window, cab rear

1шт.

36

P8046010

SEAL

RETAINER - rubber, Serial Range: window-cab

1шт.

37

REF

INSTRUCTION

SEAL - 118" (2997 mm) long, window glass, cut from P346008

1шт.

38

P3037468

PLASTIC PLUG

PLUG - PLASTIC

2шт.

39

P2537454

PLASTIC PLUG

PLUG - plastic, cab post, outer, if used

1шт.

40

P2537452

PLASTIC PLUG

PLUG - plastic, cab post, inner, if used

1шт.
