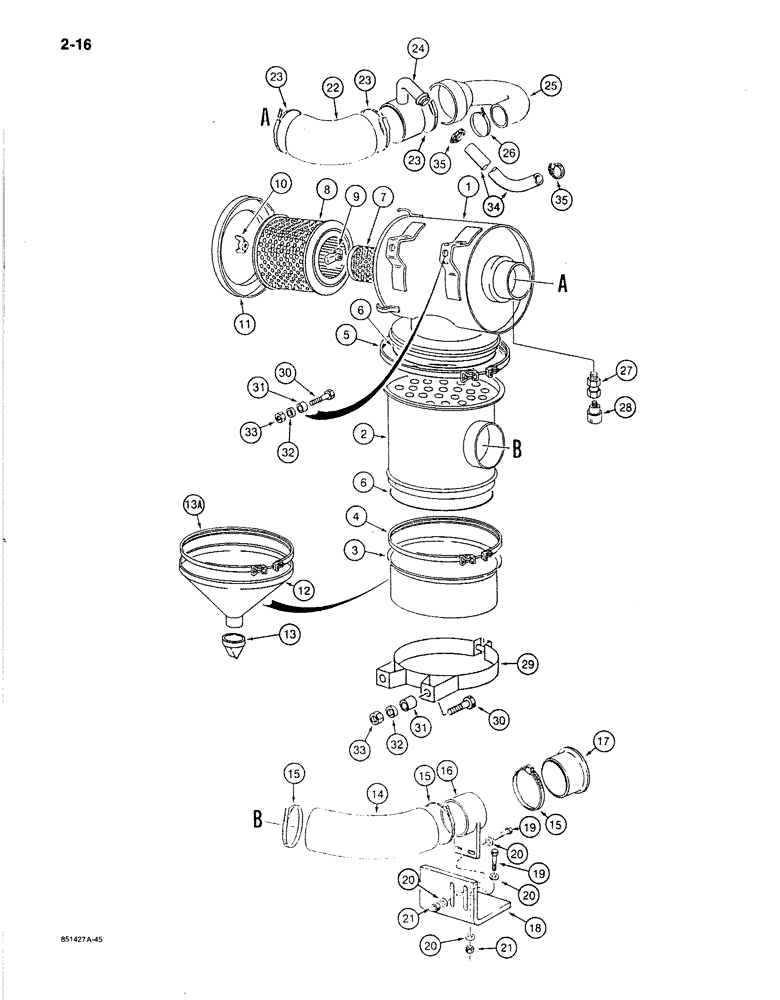

Запчасти Case 170B (2-16) - AIR CLEANER AND AIR INTAKE PARTS, OPTIONAL HEAVY DUTY - USED W/ PRECLEANER, P.I.N. 74364 THRU 74456 (02) - ENGINE

P850553

AIR CLEANER

CLEANER ASSEMBLY - air, complete, Includes: Refs. 1-11

1шт.

1

P850548

BODY

- air cleaner

1шт.

2

P850557

BODY

- precleaner

1шт.

3

P850552

BOWL

CUP - dust, precleaner, without dust valve

1шт.

4

P1036959

CLAMP

- dust, Serial Range: cup-precleaner

1шт.

5

P1036958

CLAMP

- precleaner to air cleaner

1шт.

6

P1246069

SEAL

- precleaner to dust cup and air cleaner body

2шт.

7

A43657

FILTER

ELEMENT - secondary, inner

1шт.

8

A43656

FILTER

ELEMENT - primary, outer

1шт.

9

P2141610

INDICATOR

NUT - wing, safety indicator, secondary, Serial Range: element-body

1шт.

10

P34405

THUMB SCREW

NUT - wing, primary, Serial Range: element-body

1шт.

11

P740457

COVER

- end, air cleaner

1шт.

12

P1950533

BOWL

CUP - dust, precleaner, used with dust valve

1шт.

13

P450542

VALVE

- dust, rubber

1шт.

13a

P3036951

CLAMP

- dust, Serial Range: cup-precleaner

1шт.

14

P5931905

LARGE HOSE

HOSE - air intake to air cleaner

1шт.

15

P2036959

COLLAR CLAMP

CLAMP - air intake hose

3шт.

16

P3450146

CONDUIT

TUBE - air cleaner intake

1шт.

17

P8046066

GASKET

ADAPTER - intake tube, rubber

1шт.

18

P1831651

ANGLE BAR

BRACKET - support, intake tube

1шт.

19

P133813

SCREW

BOLT - support bracket

4шт.

20

P3528795

WASHER

SPACER - bracket bolt

8шт.

21

P34598

SAFETY NUT

NUT - hex, bracket bolt

4шт.

22

P2431928

ELBOW

HOSE - air, Serial Range: cleaner-engine

1шт.

23

P2036959

COLLAR CLAMP

CLAMP - hose to air cleaner and tube

3шт.

24

P3450159

MANIFOLD

TUBE - air, Serial Range: cleaner-engine

1шт.

25

P5931906

LARGE HOSE

HOSE - air cleaner, at engine

1шт.

26

P36946

COLLAR CLAMP

CLAMP - hose, at engine

1шт.

27

P1037418

PLUG

TUBE ASSEMBLY - air restriction indicator, included with P850553 air cleaner assembly

1шт.

28

P2141684

INDICATOR

SENDER - air restriction indicator

1шт.

29

P136947

COLLAR CLAMP

CLAMP - precleaner, includes bolt and nut

1шт.

30

P133813

SCREW

BOLT - air cleaner body and clamp

4шт.

31

P4328730

WASHER

SPACER - thick, body and clamp bolt

4шт.

32

P3528795

WASHER

SPACER - thin, body and clamp bolt

4шт.

33

P34598

SAFETY NUT

NUT - hex, body and clamp bolt

4шт.

34

REF

INSTRUCTION

HOSE - ventilation, 15-3/4" (400 mm) long, cut from P1103608

1шт.

35

P36998

COLLAR CLAMP

CLAMP - hose

2шт.
