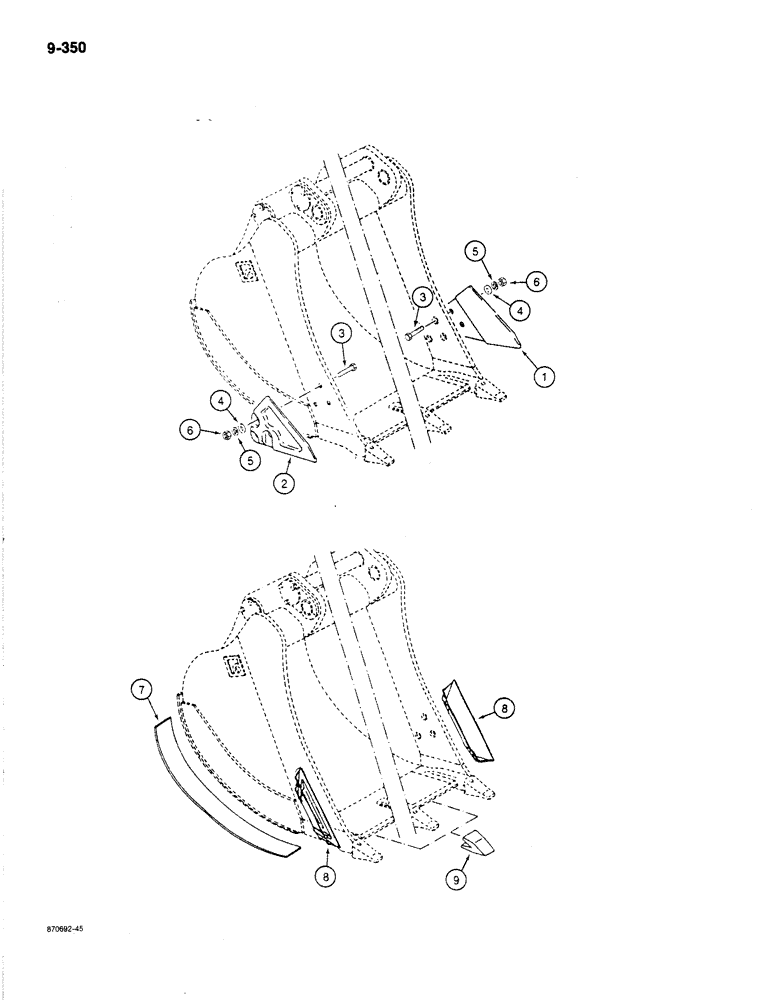

Запчасти Case 170B (9-350) - BACKHOE BUCKET CUTTER OPTIONS, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

1

P1304010

BLADE

CUTTER - right-hand side, standard, bolted on

1шт.

2

P1304009

BLADE

CUTTER - left-hand side, standard, bolted on

1шт.

3

P32759

SCREW

BOLT - plow head, 30 mm x 80 mm

6шт.

4

P35011

WASHER

- flat, 30 mm

6шт.

5

P34721Q

WASHER

- flat, 30 mm

6шт.

6

P34125

NUT

- hex, 30 mm

6шт.

7

P5826625

STIFFENER

STRIP - wear, bucket

2шт.

8

P2346195

PROTECTOR

CUTTER - side, heavy duty, welded on

2шт.

9

P2346180

POINT

TOOTH - cutting, heavy duty

3шт.
