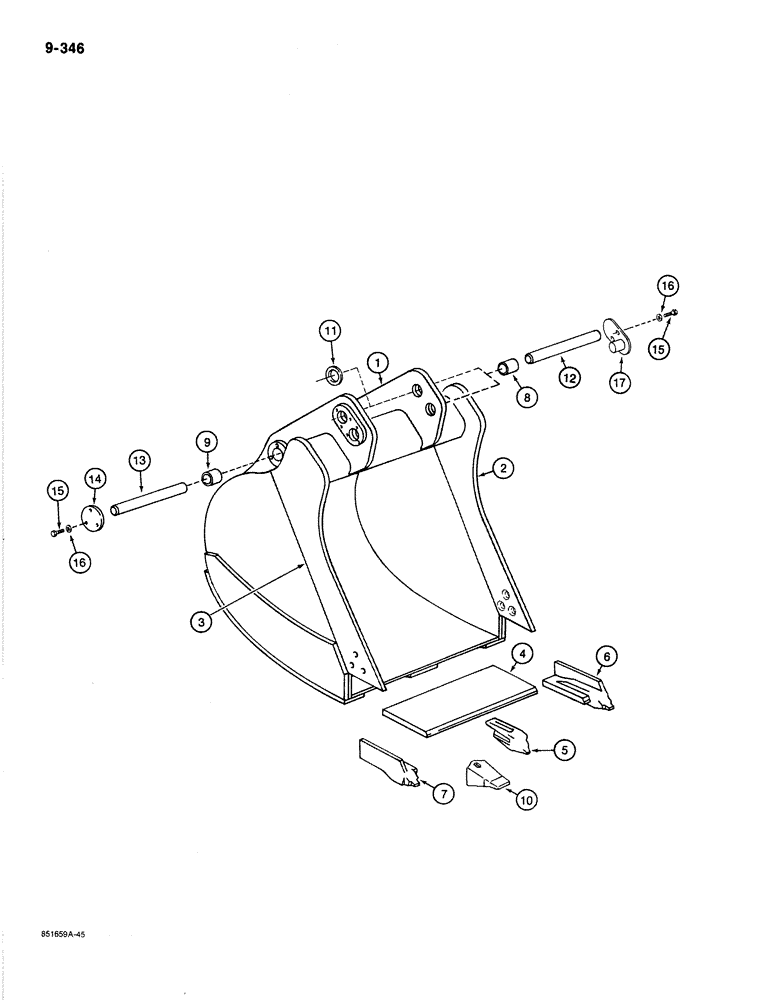

Запчасти Case 170B (9-346) - BACKHOE BUCKET, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

NSS

NOT SOLD SEPARAT

BACKHOE BUCKET ASSEMBLY - excavator, 1-3/4 cu yd, 47"(1200 mm) wide, machinery item, order from Machinery Price List, Includes: Refs. 1-9

1шт.

1

NSS

NOT SOLD SEPARAT

BACKHOE BUDKET - excavator

1шт.

2

P4724209

STIFFENER

CUTTING EDGE - side, right-hand

1шт.

3

P4724208

STIFFENER

CUTTING EDGE - side, left-hand

1шт.

P5754835

BLADE

CUTTING EDGE AND SHANK ASSEMBLY - bucket, Includes: Refs. 4-7

1шт.

4

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket

1шт.

5

P804008

SUPPORT

SHANK - tooth, center

2шт.

6

P1504025

SHANK, BUCKET TOOTH

SHANK - tooth, right-hand

1шт.

7

P1504026

SHANK, BUCKET TOOTH

SHANK - tooth, left-hand

1шт.

8

P4528770

BUSHING

- bucket pin, at, Serial Range: arm-bucket

4шт.

9

P4628782

BUSHING

- bucket pin, at, Serial Range: link-bucket

2шт.

10

REF

INSTRUCTION

TOOTH - bucket, see Figure 9-348 for options

4шт.

11

P745319

WASHER

SHIM - 0.08" (2 mm) thick, Serial Range: arm-bucket

1шт.

12

P3227384

PIN

-, Serial Range: arm-bucket

1шт.

13

P3227383

PIN

-, Serial Range: link-bucket

1шт.

14

P8230153

CAP

PLATE - retainer, bucket pin

2шт.

15

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 xz 35 mm, plated

10шт.

16

P3528793

WASHER

SPACER - retainer plate bolt

10шт.

17

P4327162

CAP

RETAINER - pin

2шт.
