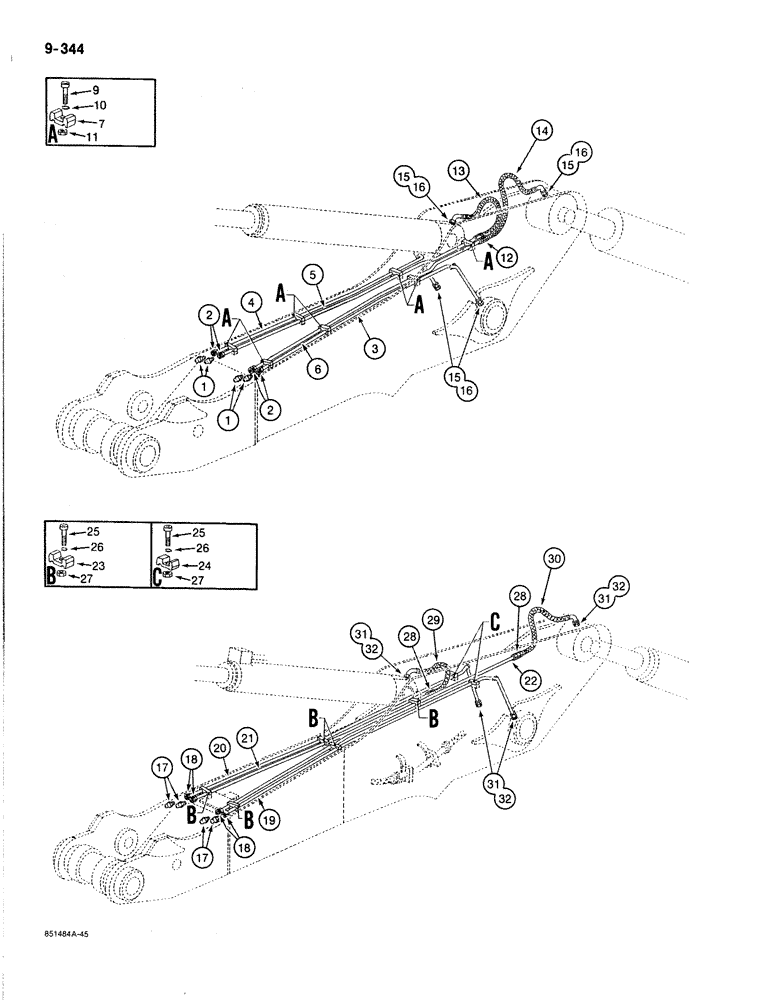

Запчасти Case 170B (9-344) - ARM LUBRICATION LINES, P.I.N. 74341 THRU 74456,USED ON UNITS W/ 2.5 M ARM (09) - CHASSIS

1

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

4шт.

2

P3237596

END FITTING

ADAPTER - grease, Serial Range: fitting-tube

4шт.

3

P5849062

PIPE

TUBE - lubrication, pin at boom, left-hand side

1шт.

4

P5849061

PIPE

TUBE - lubrication, pin at boom, right-hand side

1шт.

5

P6149065

PIPE

TUBE - lubrication, closed end of tool cylinder

1шт.

6

P6149065

PIPE

TUBE - lubrication, rod end of arm cylinder

1шт.

7

P404292

SHIN

CLAMP - double tube

7шт.

9

P1232971

SCREW

BOLT - tube clamp

7шт.

10

P34713

WASHER

- lock

7шт.

11

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, plated

7шт.

12

P37553

UNION

ADAPTER -, Serial Range: tube-hose

2шт.

13

P4431999

HOSE

- 24-13/16" (630 mm) long, lubrication, closed end of tool cylinder

1шт.

14

P4831901

HOSE

- 31-1/2" (800 mm) long, lubrication, rod end of arm cylinder

1шт.

15

P3037546

UNION

ADAPTER - straight, lubrication lines

4шт.

16

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

4шт.

17

J45801

LUBE NIPPLE,M8 x 1.25

lubrication, used on units with 3.2 meter arm M8 x 1.25

4шт.

18

P3237596

END FITTING

ADAPTER - grease fitting to tube, used on units with 3.2 meter arm

4шт.

19

P6049002

PIPE

TUBE - lubrication, pin at boom, left-hand side, used on units with 3.2 meter arm

1шт.

20

P6049001

PIPE

TUBE - lubrication, pin at boom, right-hand side, used on units with 3.2 meter arm

1шт.

21

P6947108

PIPE

TUBE - lubrication, closed end of tool cylinder, used on units with 3.2 meter arm

1шт.

22

P6947182

PIPE

TUBE - lubrication, rod end of arm cylinder, used on units with 3.2 meter arm

1шт.

23

P404292

SHIN

CLAMP - double tube, used on units with 3.2 meter arm

5шт.

24

P404291

SHIN

CLAMP - single tube, used on units with 3.2 meter arm

3шт.

25

P1232971

SCREW

BOLT - tube clamp, used on units with 3.2 meter arm

8шт.

26

P34713

WASHER

- lock, used on units with 3.2 meter arm

8шт.

27

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, plated, Used on units with 3.2 meter arm

8шт.

28

P37553

UNION

ADAPTER - tube to hose, used on units with 3.2 meter arm

2шт.

29

P4431999

HOSE

- 24-13/16" (630 mm) long, lubrication, closed end of tool cylinder, used on units with 3.2 meter arm

1шт.

30

P4831901

HOSE

- 31-1/2" (800 mm) long, lubrication, rod end of arm cylinder, used on units with 3.2 meter arm

1шт.

31

P3037546

UNION

ADAPTER - straight, lubrication lines, used on units with 3.2 meter arm

4шт.

32

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter, used on units with 3.2 meter arm

4шт.
