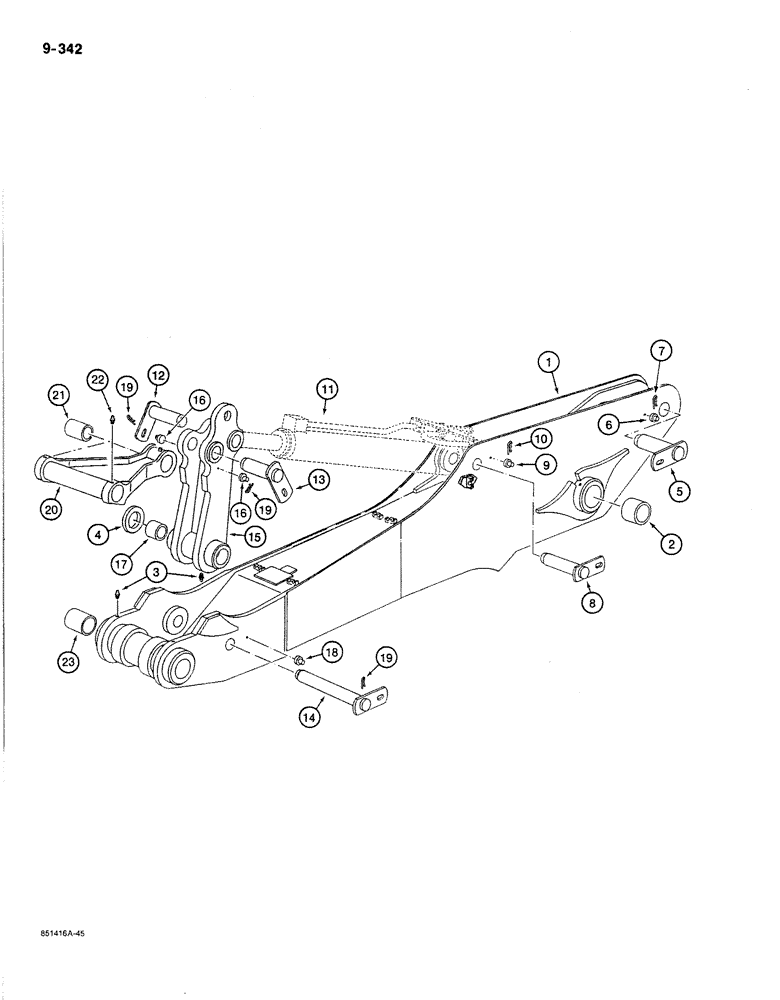

Запчасти Case 170B (9-342) - ARM, LINKS AND MOUNTING PINS, WITH 10 FOOT 6 INCH (3.2 M), P.I.N. 74341 THRU 74456 (09) - CHASSIS

1

P6754844

DIPPER

ARM - 10 foot 6 inches (3.2 m) long (replaced NSS)

1шт.

2

P1528676

BUSHING

- arm pivot, at, Serial Range: arm-boom

2шт.

3

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

3шт.

4

P245424

WASHER

SHIM - 8.08" (2 mm) thick, at, Serial Range: hinge-arm

1шт.

5

P2530909

HEADED PIN

PIN - pivot, arm cylinder rod end mounting

1шт.

6

P50053

SHAFT LOCK

PIN - lock, arm cylinder pivot pin, Serial Range: welded-arm

1шт.

7

P36020

SPLIT PIN/SAFETY PIN

PIN - hair, split, lock pin

1шт.

8

P2530922

HEADED PIN

PIN - pivot, tool cylinder closed end mounting

1шт.

9

P50053

SHAFT LOCK

PIN - lock, tool cylinder pivot pin, Serial Range: welded-arm

1шт.

10

P36020

SPLIT PIN/SAFETY PIN

PIN - hair, split, lock pin

1шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - tool, see Figure 8-222 for tubes and clamps

1шт.

12

P2430960

HEADED PIN

PIN - pivot, tool, Serial Range: cylinder-hinge

1шт.

13

P2430963

PIVOT PIN

PIN - pivot, hinge to tool link

1шт.

14

P2430983

PIVOT PIN

PIN - pivot, Serial Range: hinge-arm

1шт.

P4754888

LINKAGE YOKE

HINGE ASSEMBLY - tool, Includes: Refs. 15-17

1шт.

15

NSS

NOT SOLD SEPARAT

HINGE - tool

1шт.

16

P1127863

SHAFT LOCK

PIN - lock, tool hinge pin, Serial Range: welded-hinge

2шт.

17

P4628707

BUSHING

- pivot, Serial Range: hinge-arm

2шт.

18

P50053

SHAFT LOCK

PIN - lock, tool hinge pin, Serial Range: welded-arm

1шт.

19

P36020

SPLIT PIN/SAFETY PIN

PIN - hair, split, lock pin

3шт.

P5754847

ROD, CONNECTING

LINK ASSEMBLY - tool, Includes: Refs. 20-22

1шт.

20

NSS

NOT SOLD SEPARAT

LINK - tool

1шт.

21

P4628784

BUSHING

- tool link

3шт.

22

J45801

LUBE NIPPLE,M8 x 1.25

lubrication, link bushing M8 x 1.25

3шт.

23

P4628771

BUSHING

-, Serial Range: arm-tool

2шт.
