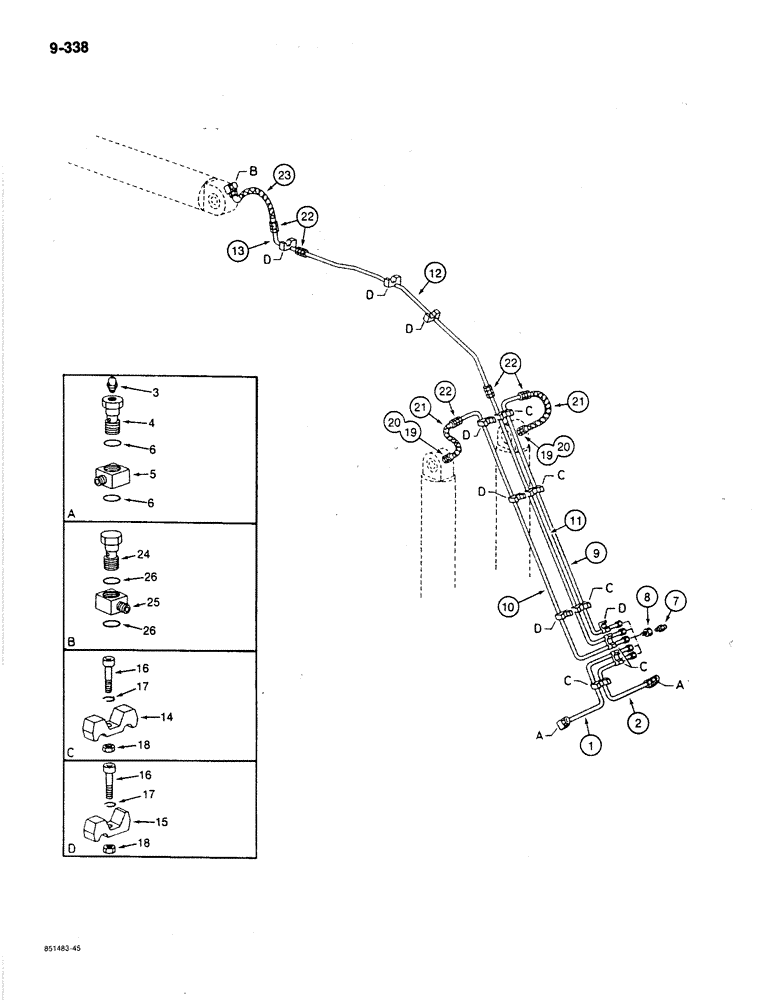

Запчасти Case 170B (9-338) - BOOM LUBRICATION LINES, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

1

P5849067

PIPE

TUBE - lubrication, boom to turntable pin, left-hand side

1шт.

2

P5849066

PIPE

TUBE - lubrication, boom to turntable pin, right-hand side

1шт.

P2337568

FITTING

ADAPTER ASSEMBLY - lubrication tube, Includes: Refs. 3-6

2шт.

3

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

1шт.

4

NSS

NOT SOLD SEPARAT

ADAPTER - lubrication tube

1шт.

5

NSS

NOT SOLD SEPARAT

BLOCK - adapter

1шт.

6

P30401

O-RING,2.5mm Thk x 18.5mm ID

- adapter and block

2шт.

7

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

5шт.

8

P3237596

END FITTING

ADAPTER - grease fitting

5шт.

9

P5849068

PIPE

TUBE - lubrication, closed end of right-hand boom cylinder

1шт.

10

P5849065

PIPE

TUBE - lubrication, closed end of left-hand boom cylinder

1шт.

11

P6547188

PIPE

TUBE - lubrication, closed end of arm cylinder, lower section

1шт.

12

P5949162

PIPE

TUBE - lubrication, closed end of arm cylinder, center section

1шт.

13

P6547189

PIPE

TUBE - lubrication, closed end of arm cylinder, upper section

1шт.

14

P404292

SHIN

CLAMP - double tube

6шт.

15

P404291

SHIN

CLAMP - single tube

7шт.

16

P1232971

SCREW

BOLT - tube

13шт.

17

P34713

WASHER

- lock

13шт.

18

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, plated

13шт.

19

P3037546

UNION

ADAPTER - hose to boom cylinder

2шт.

20

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- hose adapter

2шт.

21

P3731995

HOSE

- 31-1/2" (800 mm) long, lubrication, closed end of boom cylinder

2шт.

22

P37553

UNION

ADAPTER - straight, lubrication hose and tube

5шт.

23

P4431936

HOSE

- 24-13/16" (630 mm) long, lubrication, closed end of arm cylinder, Includes: Refs. 24-26

1шт.

24

NSS

NOT SOLD SEPARAT

ADAPTER - lubrication hose

1шт.

25

NSS

NOT SOLD SEPARAT

BLOCK - adapter

1шт.

26

P30401

O-RING,2.5mm Thk x 18.5mm ID

- adapter and block

2шт.
