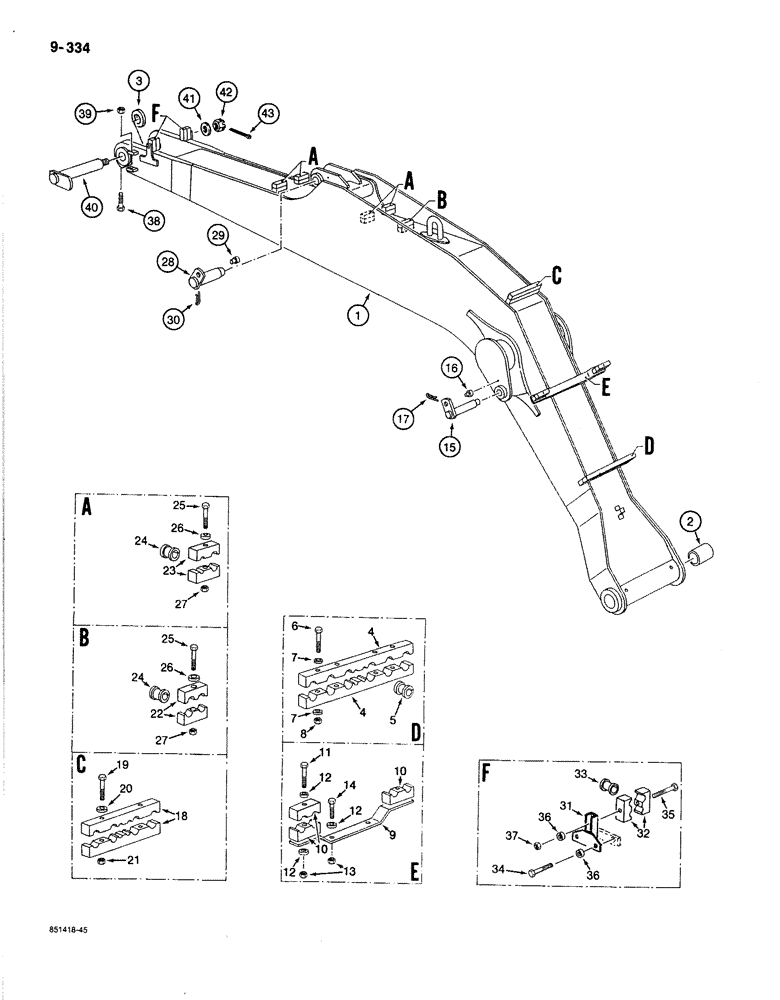

Запчасти Case 170B (9-334) - BOOM AND RELATED PARTS, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

1

P6754838

BOOM

- excavator

1шт.

Ref. 1 - P6754838 Boom (6.5 M)

1шт.

2

P1528633

BUSHING

- boom pivot, at, Serial Range: boom-turntable

2шт.

3

P745319

WASHER

SHIM - 0.08" (2 mm) thick, at, Serial Range: boom-arm

1шт.

4

P920314

SHIN

CLAMP - tube

2шт.

5

P741437

BUSHING

INSULATOR - tube

6шт.

6

P33856

SCREW

BOLT - tube clamp

4шт.

7

P4328746

WASHER

SPACER - tube clamp bolt

8шт.

8

P34169

NUT

- tube clamp bolt

4шт.

9

P926459

SUPPORT

BRACKET - tube clamp mounting

1шт.

10

P820396

SHIN

CLAMP - tube

4шт.

11

P33856

SCREW

BOLT -, Serial Range: clamp-bracket

2шт.

12

P4328746

WASHER

SPACER - clamp and bracket bolt

6шт.

13

P34169

NUT

- bracket bolt

4шт.

14

P33803

SCREW

BOLT - mounting bracket

2шт.

15

P2430960

HEADED PIN

PIN - pivot, boom cylinder closed end mounting

2шт.

16

P50059

SHAFT LOCK

PIN - lock, boom cylinder pivot pin, Serial Range: welded-boom

2шт.

17

P36020

SPLIT PIN/SAFETY PIN

PIN - hair, split, lock pin

2шт.

18

P820342

SHIN

CLAMP - tube

2шт.

19

P33856

SCREW

BOLT - tube clamp

2шт.

20

P4328746

WASHER

SPACER - tube clamp bolt

2шт.

21

P34169

NUT

- tube clamp bolt

2шт.

22

P3220358

SHIN

CLAMP - tube

2шт.

23

P820338

SHIN

CLAMP - tube

8шт.

24

P741437

BUSHING

INSULATOR - tube clamp

10шт.

25

P33856

SCREW

BOLT - tube clamp

5шт.

26

P4328746

WASHER

SPACER - tube clamp bolt

5шт.

27

P34169

NUT

- tube clamp bolt

5шт.

28

P2430964

PIVOT PIN

PIN - pivot, arm cylinder closed end mounting

1шт.

29

P50055

SHAFT LOCK

PIN - lock, arm cylinder pivot pin, Serial Range: welded-boom

1шт.

30

P36020

SPLIT PIN/SAFETY PIN

PIN - hair, split, lock pin

1шт.

31

P4127191

SUPPORT

BRACKET - mounting, tube clamp

2шт.

32

P820338

SHIN

CLAMP - tube

4шт.

33

P741437

BUSHING

INSULATOR - tube

4шт.

34

P133802

SCREW

BOLT - tube clamp mounting plate

4шт.

35

P33856

SCREW

BOLT - tube clamp

2шт.

36

P4328746

WASHER

SPACER - tube clamp and bracket bolt

6шт.

37

P34169

NUT

- tube clamp bolt

2шт.

38

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Pin locking Hex Skt Hd, M12 x 40, 10.9

1шт.

39

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10 plated

1шт.

40

P2530995

LARGE PIN

PIN - pivot, Serial Range: arm-boom

1шт.

41

P545577

WASHER

- pivot pin

1шт.

42

P34325

NUT

- pivot pin

1шт.

43

P35564

SPLIT PIN/SAFETY PIN

PIN - cotter, pivot pin

1шт.
