Запчасти Case 170B (9-328) - SEAT, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

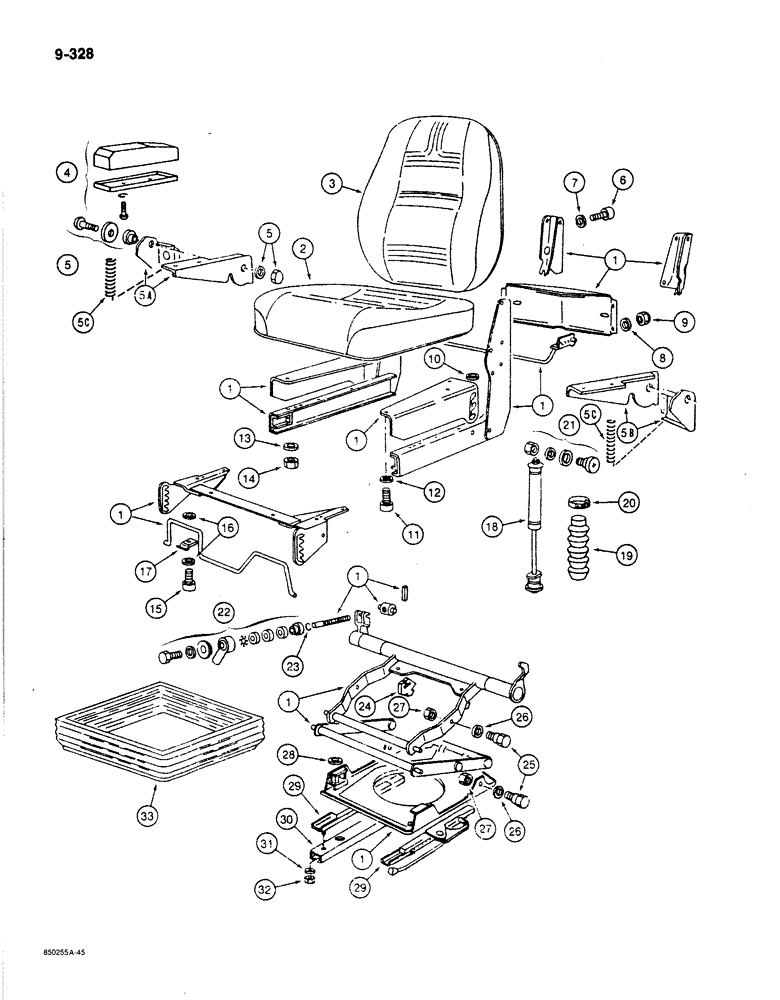

Схема запчастей Case 170B - (9-328) - SEAT, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

Артикул

Название

Примечание

Количество

P1347047

SEAT

ASSEMBLY - operator's, Includes: Refs. 1-33

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - seat

1шт.

2

P1347059

CUSHION

- seat bottom

1шт.

3

P1347058

BACKREST

CUSHION - seat back

1шт.

P1347080

ARMREST

ASSEMBLY - seat, right-hand, includes Refs. 4, 5, 5A, and 5C

1шт.

P1347079

ARMREST

ASSEMBLY - seat, left-hand, includes Refs. 4, 5, 5B, and 5C

1шт.

4

P1347060

SET

ARMREST - seat, includes base and mounting hardware

1шт.

5

P1347061

SET OF PARTS

KIT - armrest pivot rachet

1шт.

5a

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY - armrest, right-hand, includes rachet

1шт.

5b

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY - armrest, left-hand, includes rachet

1шт.

5c

P38288

SPRING

- armrest

1шт.

6

P1232917

SCREW

BOLT - seat back

4шт.

7

P34609

WASHER

- seat bolt

4шт.

8

P34609

WASHER

- stud

4шт.

9

P1334581

NUT

- stud

4шт.

10

P35001

WASHER

- seat bolt

4шт.

11

P1232916

SCREW

BOLT -, Serial Range: frame-cushion

4шт.

12

P35001

WASHER

- cushion mounting bolt

4шт.

13

P34609

WASHER

- seat frame stud

4шт.

14

P34201

NUT

- seat frame stud

4шт.

15

P1232916

SCREW

BOLT - clamp

2шт.

16

P35001

WASHER

- clamp bolt

4шт.

17

P2726674

SUPPORT

CLAMP - rod

2шт.

18

P1343227

SHOCK ABSORBER

ABSORBER - shock, seat

1шт.

19

P1340448

BELLOWS

BOOT - shock absorber

1шт.

20

P36998

COLLAR CLAMP

CLAMP - boot

1шт.

21

P1047064

BOLT

KIT - shock absorber hardware

1шт.

22

P1047062

PAWL

ASSEMBLY - seat, includes hardware

1шт.

23

P336318

RING, SNAP

RING - retaining

1шт.

24

P641436

STOP

- seat

2шт.

25

P1533038

SCREW

BOLT - special

4шт.

26

P35004

WASHER

- special bolt

4шт.

27

P34598

SAFETY NUT

NUT - hex

4шт.

28

P34609

WASHER

- special bolt

4шт.

29

P1047063

SET

TRACK ASSEMBLY - set, right-hand and left-hand

1шт.

30

P348301

BLOCK

RAIL - lower

2шт.

31

P35002

WASHER

- track stud

4шт.

32

P134596

SAFETY NUT

NUT - track stud

4шт.

33

P2340465

BELLOWS

COVER - suspension mechanism

1шт.

Выбрано товаров: 39
