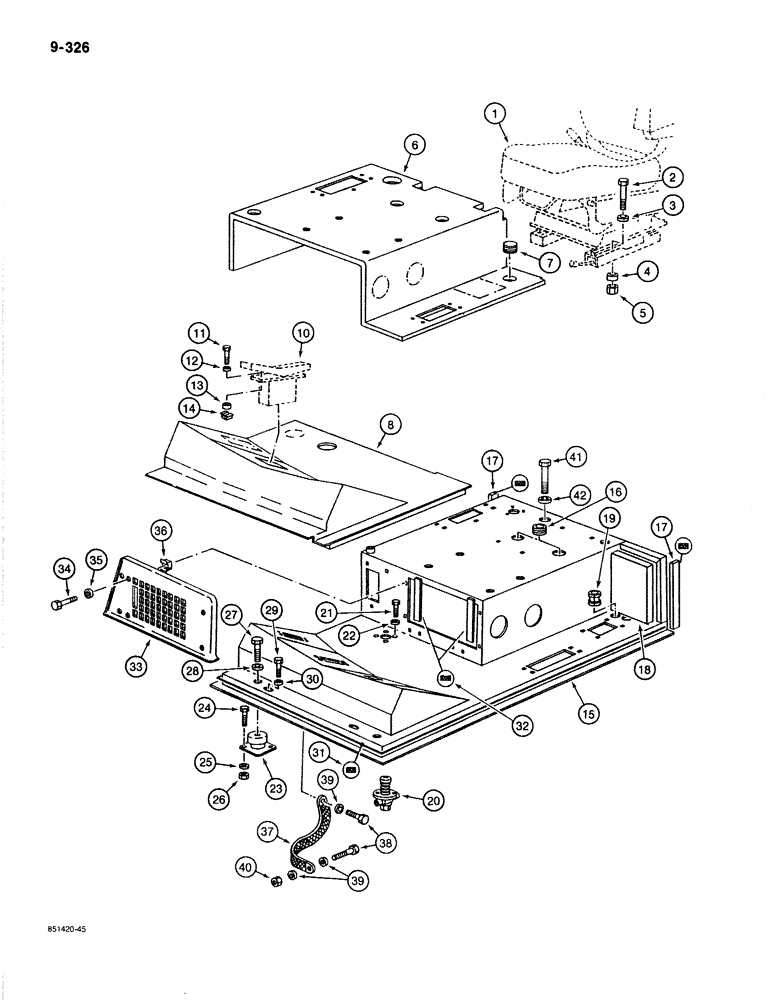

Запчасти Case 170B (9-326) - SEAT, SEAT MOUNTING, AND FLOOR PLATE, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

1

P1347047

SEAT

ASSEMBLY - parts list Figure 9-328

1шт.

2

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8), plated

4шт.

3

P3528793

WASHER

SPACER - bolt, upper

4шт.

4

P4328732

WASHER

SPACER - bolt, lower

4шт.

5

P1334578

NUT

- mounting bolt

4шт.

6

P3141485

MAT

- under seat

1шт.

7

P1037440

BLANK-OFF PLUG

PLUG - floor plate

1шт.

8

P3441448

MAT

- floor

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, see Figures 8-260 - 8-264 for correct valve

2-3шт.

11

P133865

SCREW

BOLT - control valve mounting, 8 mm x 60 mm, P.I.N. 74398 and 74400 - 74456

8-1шт.

12

P3528794

WASHER

SPACER - bolt, upper

8-1шт.

13

P4328730

WASHER

SPACER - bolt, lower, 28 mm thick, P.I.N. 74341 - 74397 and 74399

8-1шт.

13

P4328730

WASHER

SPACER - bolt, lower, 28 mm thick, P.I.N. 74341 - 74397 and 74399

8-1шт.

14

P1334571

NUT

- valve mounting bolts

8-1шт.

15

P6643851

FLOOR

PLATE - floor, operator compartment

1шт.

16

P41478

GROMMET

GUIDE - in floor plate

2шт.

17

REF

INSTRUCTION

SEAL - 11-13/16" (300 mm) long, cut from P3127

2шт.

18

P3141452

LARGE PLATE

PAD - insulation, rear

1шт.

19

P141499

GROMMET

- floor plate

4шт.

20

P1443532

PUMP

- foot

1шт.

21

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

plated Hex, M6 - 1 x 16, 8.8

4шт.

22

P3528799

WASHER

SPACER - bolt

4шт.

23

P741471

DEUTZ PART

SUPPORT - floor plate

4шт.

24

P933818

SCREW

BOLT - support mounting

8шт.

25

P3528795

WASHER

SPACER - bolt

8шт.

26

P34598

SAFETY NUT

NUT - mounting bolt

8шт.

27

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8), plated

4шт.

28

P3528797

WASHER

SPACER - center mount bolt

4шт.

29

814-14080

BOLT,Hex, M14 x 2 x 80mm, Cl 8.8

2шт.

30

P629208

BUSHING

SPACER - bolt

2шт.

31

REF

INSTRUCTION

SEAL - 177-1/4" (4500 mm) long, cut from P3127

1шт.

32

REF

INSTRUCTION

SEAL - 7-7/8" (200 mm) long, cut from P3128

2шт.

33

P2340445

SIEVE

GRILLE - heater, under seat

1шт.

34

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Grille Mounting Hex, M8 x 25, 8.8

4шт.

35

P3528794

WASHER

SPACER - bolt

4шт.

36

P1334571

NUT

- mounting bolt

4шт.

37

P1047299

NEG BATTERY CABLE

STRAP - ground

1шт.

38

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

plated Hex, M10 x 35, 8.8, Full Thd

2шт.

39

P3528795

WASHER

SPACER - bolt

3шт.

40

100016

NUT,M10 x 1.5, Cl 8

Ground Bolt M10, Cl 8

1шт.

41

P533846

SCREW

BOLT - floor plate

2шт.

42

P3528792

WASHER

SPACER - bolt

2шт.
