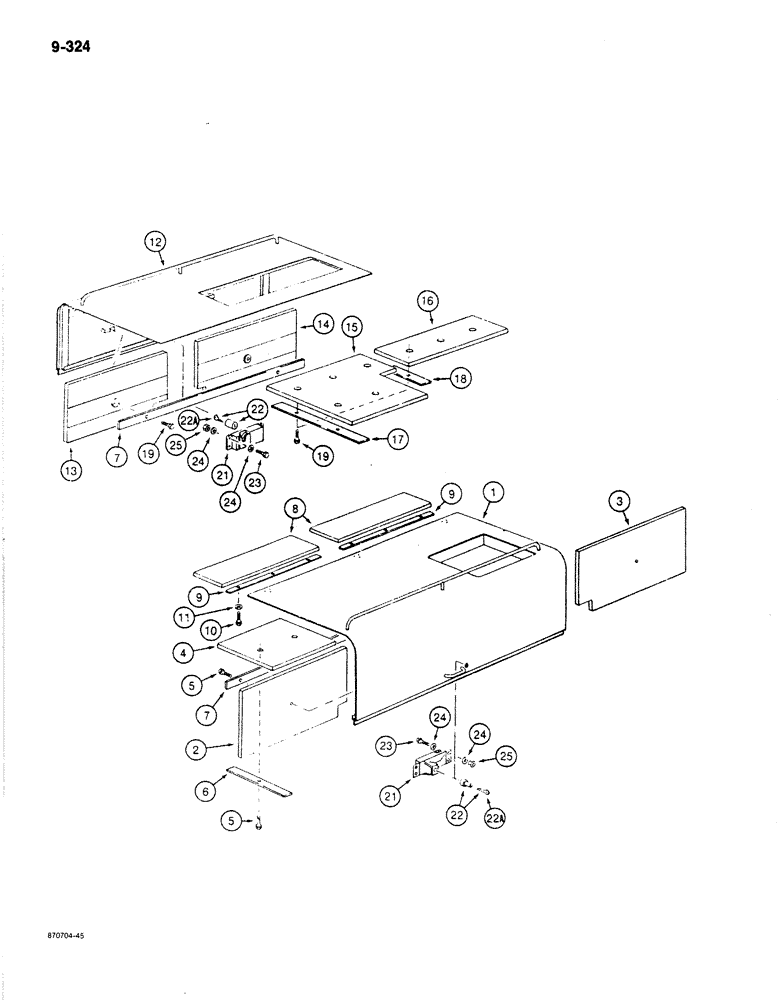

Запчасти Case 170B (9-324) - SIDE ACCESS COVERS, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

1

P7043826

SHUTTER

COVER - engine access, left-hand

1шт.

2

P3441428

LARGE PLATE

INSULATION - left-hand cover, side, front

1шт.

3

P3441429

LARGE PLATE

INSULATION - left-hand cover, side, rear

1шт.

4

P3441430

LARGE PLATE

INSULATION - left-hand cover, top, front

2шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Insulation to Cover Hex, M8 x 25, 8.8

6шт.

6

P6722745

PLATE

STRIP - retainer, insulation, left-hand top, P.I.N. 74347 - 74456

4шт.

7

P3122833

PLATE

STRIP - retainer, insulation, cover, right-hand and left-hand side, P.I.N. 74347 - 74456

2шт.

8

P3441431

LARGE PLATE

INSULATION - left-hand cover, top

2шт.

9

P3122815

PLATE

RETAINER - insulation, top

2шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Insulation Retainer Hex, M8 x 25, 8.8

6шт.

11

P3528794

WASHER

SPACER - 6 mm, retainer bolt

9шт.

12

P7043827

SHUTTER

COVER - engine access, right-hand

1шт.

13

P3441429

LARGE PLATE

INSULATION - right-hand cover, side, front

1шт.

14

P3441428

LARGE PLATE

INSULATION - right-hand cover, side, rear

1шт.

15

P3441432

LARGE PLATE

INSULATION - right-hand cover, top, front

1шт.

16

P3441427

LARGE PLATE

INSULATION - right-hand cover, top, rear

1шт.

17

P3122832

PLATE

STRIP - retainer, insulation, right-hand top, long, P.I.N. 74347 - 74456

2шт.

18

P6722744

PLATE

STRIP - retainer, insulation, right-hand top, short, P.I.N. 74347 - 74456

4шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Retainer Strip to Cover, Includes: Ref. 20 Hex, M8 x 25, 8.8

10шт.

P1352001

LOCK ASSY

LOCK ASSEMBLY - engine access cover, includes bracket, Includes: Refs. 21, 22, and 22A

2шт.

21

NSS

NOT SOLD SEPARAT

BRACKET - lock, engine access cover

1шт.

22

P152083

LOCK, CYLINDER

CYLINDER ASSEMBLY - lock, includes keys, Includes: Ref. 22A

1шт.

22a

P1352009

KEY

- cylinder lock, set of two

1шт.

23

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 30 mm, plated

8шт.

24

P3528794

WASHER

SPACER - 6 mm, bolt to cover and lock assembly

16шт.

25

P134596

SAFETY NUT

NUT - hex, lock to cover bolt

8шт.
