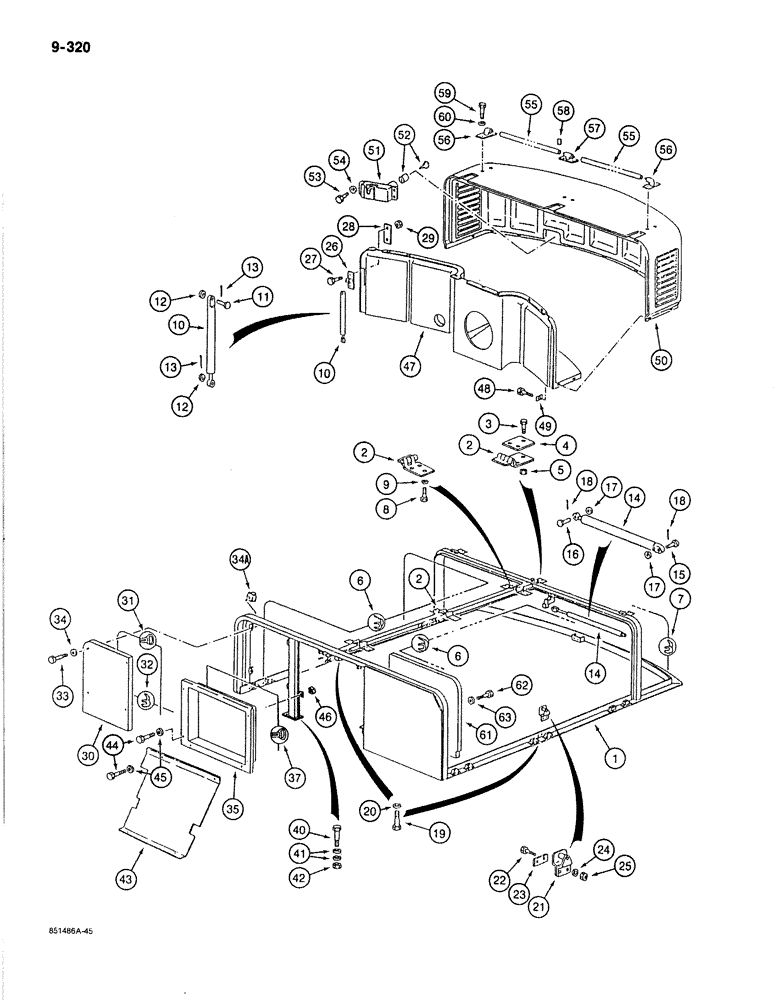

Запчасти Case 170B (9-320) - SHROUD FRAME AND REAR ENGINE COVER, P.I.N. 74341 THROUGH 74456 (09) - CHASSIS

P7043845

FRAME

ASSEMBLY - engine shroud and cover, Includes: Refs. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - engine shroud and cover

1шт.

2

P36684

HINGE

- access, Serial Range: covers-frame

9шт.

3

P933833

SCREW

BOLT - rear shroud, Serial Range: hinge-frame

9шт.

4

P523280

PLATE

- support, rear shroud hinge

3шт.

5

P134549

SAFETY NUT

NUT - hex, hinge bolt

9шт.

6

REF

INSTRUCTION

SEAL - 204-3/4" (5200 mm) long, engine access covers, cut from P303153

2шт.

7

REF

INSTRUCTION

SEAL - 232-1/4" (5900 mm) long, rear shroud to frame, cut from P303153

1шт.

8

813-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex head, 14 mm - 2 x 35 mm

18шт.

9

P3528792

WASHER

SPACER - hinge bolt

18шт.

10

P1036927

GAS STRUT

CYLINDER - rear shroud support

2шт.

11

P2327822

PIN

-, Serial Range: cylinder-shroud

2шт.

12

P35002

WASHER

- flat, cylinder pin

4шт.

13

P35510

SPLIT PIN

PIN - cotter, cylinder pin

4шт.

14

P1436933

GAS STRUT

CYLINDER - support, engine access cover

4шт.

15

P2327822

PIN

-, Serial Range: cylinder-cover

4шт.

16

P1127815

PIN

-, Serial Range: cylinder-frame

4шт.

17

P35002

WASHER

- flat, cylinder pin

8шт.

18

P35510

SPLIT PIN

PIN - cotter, cylinder pin

8шт.

19

P33881

SCREW

BOLT -, Serial Range: frame-turntable

12шт.

20

P4328732

WASHER

SPACER - frame bolt

12шт.

21

P152082

CATCH PLATE

LATCH - engine access, Serial Range: cover-frame

4шт.

22

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

latch to frame Hex, M8 x 30, 8.8

8шт.

23

P1722830

PLATE

- spacer, latch

4шт.

24

P35002

WASHER

- flat

8шт.

25

P134596

SAFETY NUT

NUT - hex, latch bolt

8шт.

26

P4128118

CLEVIS

BRACKET - mounting, support cylinder

2шт.

27

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, - Support bracket Hex, M10 x 25, 10.9, Full Thd

4шт.

28

P922865

PLATE

- SPACER, BRACKET

2шт.

29

P34598

SAFETY NUT

NUT - hex, bracket bolt

4шт.

30

P7043829

PANEL

COVER - access, front right-hand

1шт.

31

REF

INSTRUCTION

SEAL - 70-7/8" (1800 mm) long, access cover, cut from P3109

1шт.

32

REF

INSTRUCTION

SEAL - 19-11/16" (500 mm) long, access cover, cut from P30311

1шт.

33

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

34

P3528795

WASHER

SPACER - cover bolt

4шт.

34a

P1334560

NUT

- cover bolt

4шт.

35

P7043828

PANEL

COVER - front access, center

1шт.

36

RESERVED

1шт.

37

REF

INSTRUCTION

SEAL - 67" (1700 mm) long, center access cover, cut from P3109

1шт.

38

RESERVED

1шт.

39

RESERVED

1шт.

40

P933818

SCREW

BOLT - shroud frame, front

2шт.

41

P3528795

WASHER

SPACER - frame bolt

4шт.

42

P34598

SAFETY NUT

NUT - frame bolt

2шт.

43

P2826162

COWL

COVER - hydraulic swivel

1шт.

44

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

45

P3528795

WASHER

SPACER - cover bolt

8шт.

46

P1334560

NUT

- cover bolt

8шт.

47

P4540329

VENT MANIFOLD

SHROUD - engine shroud

1шт.

48

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, - Engine shroud Hex, M10 x 25, 10.9, Full Thd

20шт.

49

P1523469

PLATE

- shroud bolt

20шт.

50

P7543838

COWL

SHROUD - access, rear

1шт.

P1352001

LOCK ASSY

LOCK ASSEMBLY - rear shroud, Includes: Refs. 51, 52, 52A

2шт.

51

NSS

NOT SOLD SEPARAT

BRACKET - lock, rear shroud

1шт.

52

P152083

LOCK, CYLINDER

CYLINDER ASSEMBLY - lock, includes keys, Includes: Ref. 52A

1шт.

52a

P1352009

KEY

- cylinder lock, set of two

1шт.

53

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

lock to shroud Hex, M8 x 30, 8.8

8шт.

54

P5328794

SPACER - shroud lock bolt

8шт.

55

P1348212

GRAB RAIL

HANDLE - assist, rear

2шт.

56

P104158

END FITTING

BRACKET - assist handle, outside

2шт.

57

P104159

SUPPORT

BRACKET - assist handle, center

1шт.

58

P35730

SPLIT PIN/SAFETY PIN

PIN - roll, Serial Range: handle-bracket

4шт.

59

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- assist handle brackets to shroud

6шт.

60

P828507

WASHER

SPACER - bracket bolt

6шт.

61

P3441433

LARGE PLATE

INSULATION - front, left-hand side

1шт.

62

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Insulation to Frame Hex, M8 x 25, 8.8

2шт.

63

P1145471

WASHER

- insulation bolt

2шт.
