Запчасти Case 170B (9-312) - TURNTABLE LOWER ACCESS COVERS, P.I.N. 74341 THROUGH 74392 (09) - CHASSIS

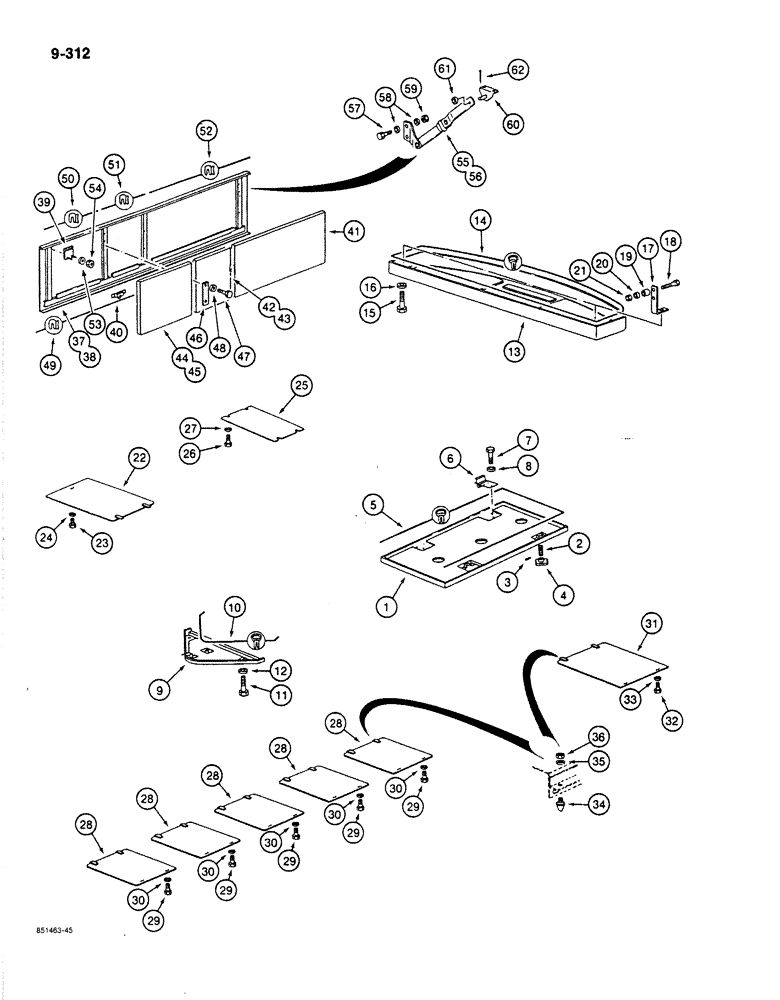

Схема запчастей Case 170B - (9-312) - TURNTABLE LOWER ACCESS COVERS, P.I.N. 74341 THROUGH 74392 (09) - CHASSIS

Артикул

Название

Примечание

Количество

P7543813

PANEL

COVER ASSEMBLY - center, Includes: Refs. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - center

1шт.

2

P727753

STEM

ROD - threaded

2шт.

3

P35731

SPLIT PIN/SAFETY PIN

PIN - roll, nut

4шт.

4

P834578

NUT

- hand twist

2шт.

5

REF

INSTRUCTION

SEAL - 137-3/4" (3500 mm) long, center cover, cut from P3109

1шт.

6

P2227105

JOINT

HINGE - cover

2шт.

7

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- cover hinge

6шт.

8

P3528793

WASHER

SPACER - hinge bolt

6шт.

P7543812

PANEL

COVER ASSEMBLY - center front, Includes: Refs. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - center front

1шт.

10

REF

INSTRUCTION

SEAL - 47-1/4" (1200 mm) long, center front cover, cut from P3109

1шт.

11

P533846

SCREW

BOLT - center cover

2шт.

12

P3528792

WASHER

SPACER - cover bolt

2шт.

13

P7543833

PANEL

COVER - rear

1шт.

14

REF

INSTRUCTION

SEAL - 212-11/16" (5400 mm) long, rear cover, cut from P3109

1шт.

15

P533846

SCREW

BOLT -, Serial Range: cover-bracket

4шт.

16

P3528792

WASHER

SPACER - cover bolt

4шт.

17

P5628249

SUPPORT

BRACKET - cover support

2шт.

18

P533847

SCREW

BOLT - cover bracket

4шт.

19

P4328731

WASHER

SPACER - bolt, thick

4шт.

20

P3528793

WASHER

SPACER - bolt, thin

4шт.

21

P34596

LOCK NUT

NUT - bracket bolt

4шт.

22

P5628237

HOOD

COVER - front, right-hand

1шт.

23

P33826

SCREW

BOLT - front cover

1шт.

24

P3528795

WASHER

SPACER - cover bolt

1шт.

25

P1245752

HOOD

COVER - rear, right-hand

1шт.

26

P33826

SCREW

BOLT - rear cover

4шт.

27

P3528795

WASHER

SPACER - cover bolt

4шт.

28

P5028238

HOOD

COVER - rear, left-hand

5шт.

29

P33826

SCREW

BOLT - front covers

10шт.

30

P3528795

WASHER

SPACER - cover, bolt

10шт.

31

P7043890

HOOD

COVER - rear, left-hand

1шт.

32

P33826

SCREW

BOLT - rear cover

2шт.

33

P3528795

WASHER

SPACER - cover bolt

2шт.

34

P741463

STOP

- rubber, cover

14шт.

35

P4328795

WASHER

SPACER - stop

14шт.

36

P134596

SAFETY NUT

NUT - stop

14шт.

P7043823

PANEL

DOOR ASSEMBLY - right-hand side

1шт.

P7043824

PANEL

DOOR ASSEMBLY - left-hand side, Includes: Refs. 37-40

1шт.

37

NSS

NOT SOLD SEPARAT

DOOR - right-hand side

1шт.

38

NSS

NOT SOLD SEPARAT

DOOR - left-hand side

1шт.

39

P736626

HINGE

- door

3шт.

40

P51922

LATCH

- door

2шт.

41

P3441424

LARGE PLATE

PAD - insulation, rear, left-hand and right-hand door

2шт.

42

P3441422

LARGE PLATE

PAD - insulation, center right-hand door

1шт.

43

P3441426

LARGE PLATE

PAD - insulation, center, left-hand door

1шт.

44

P3441423

LARGE PLATE

PAD - insulation, front, right-hand door

1шт.

45

P3441425

LARGE PLATE

PAD - insulation, front, left-hand door

1шт.

46

P2822821

PLATE

- retainer

8шт.

47

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Retainer Hex, M8 x 25, 8.8

16шт.

48

P3528794

WASHER

SPACER - retainer bolt

16шт.

49

REF

INSTRUCTION

SEAL - 86-5/8" (2200 mm) long, door, cut from P303167

2шт.

50

REF

INSTRUCTION

SEAL - 23-5/8" (600 mm) long, door, cut from P303167

2шт.

51

REF

INSTRUCTION

SEAL - 15-3/4" (400 mm) long, door, cut from P303167

2шт.

52

REF

INSTRUCTION

SEAL - 35-7/16" (900 mm) long, door, cut from P303167

2шт.

53

P3528795

WASHER

SPACER - door hinge

12шт.

54

P34598

SAFETY NUT

NUT - door hinge

12шт.

55

P36660

STAND

HINGE - door open, right-hand

2шт.

56

P36661

STAND

HINGE - door open, left-hand

2шт.

57

P933818

SCREW

BOLT - door open hinge

8шт.

58

P4328796

WASHER

SPACER - hinge bolt

16шт.

59

P34598

SAFETY NUT

NUT - hinge bolt

8шт.

60

P4127153

LARGE PIN

BRACKET ASSEMBLY - door hinge, includes pin

4шт.

61

P35004

WASHER

- flat, hinge pin

4шт.

62

P35510

SPLIT PIN

COTTER PIN - hinge pin

4шт.

Выбрано товаров: 66
